Variable Induction Control Solenoid: Testing and Inspection

INSPECT VACUUM SWITCHING VALVE ASSY FOR IAC VALVE ASSY NO. 3

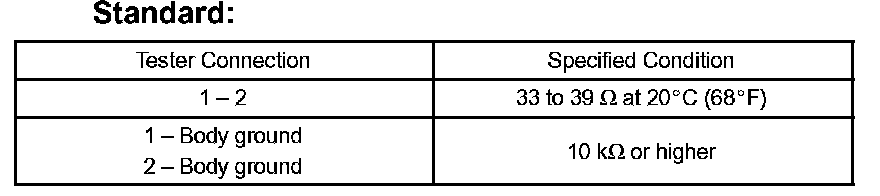

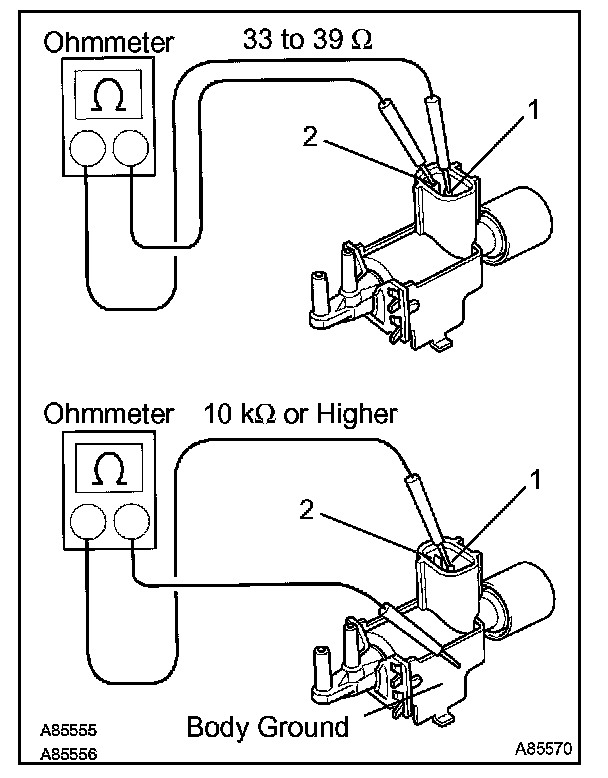

a. Check the VSV resistance.

If the result is not as specified, replace the VSV assy No. 3.

b. Check VSV operation.

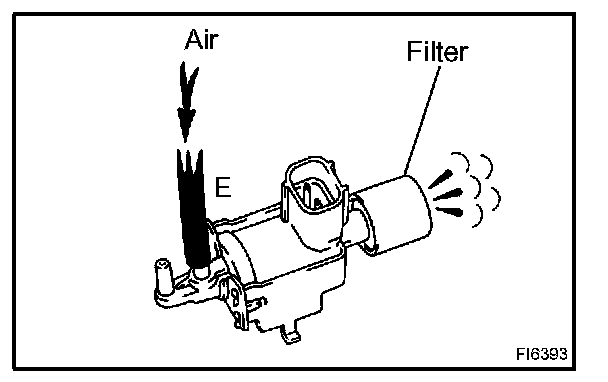

1. Check that air flows from port E to the filter.

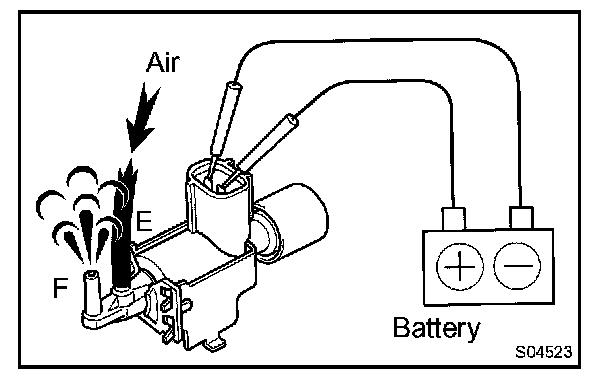

2. Apply battery voltage across the terminals. Check that air flows from port E to port F.

If the result is not as specified, replace the VSV assy No. 3.

INSPECT VACUUM SWITCHING VALVE ASSY FOR IAC VALVE ASSY NO. 2

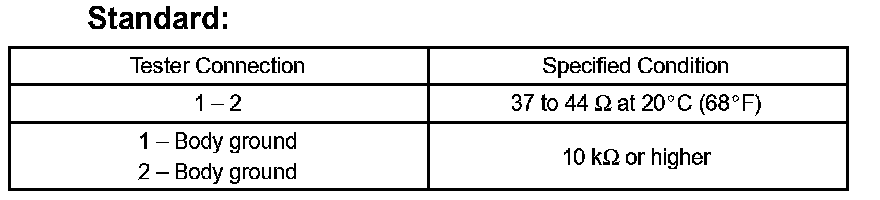

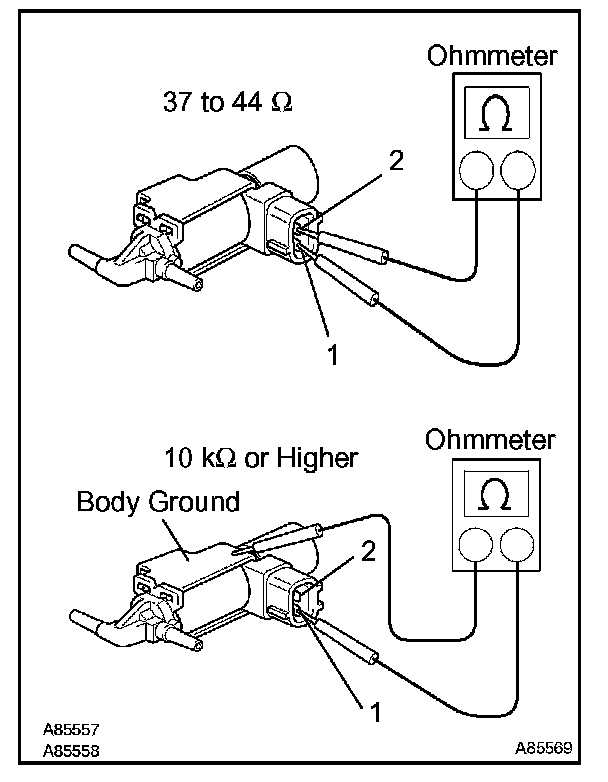

a. Check the VSV resistance.

If the result is not as specified, replace the VSV assy.

b. Check VSV operation.

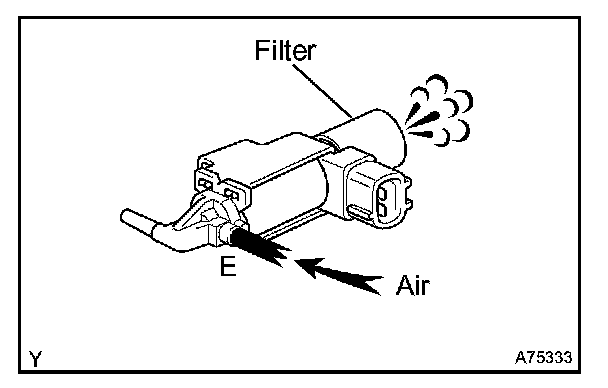

1. Check that air flows from port E to the filter.
2. Apply battery voltage across the terminals.

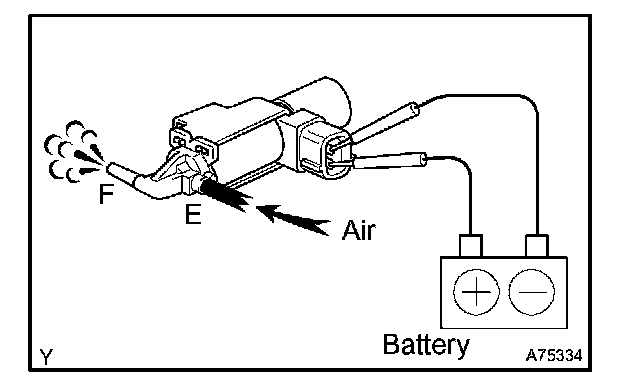

3. Check that air flows from port E to port F.

If the result is not as specified, replace the VSV assy.
