Air Bag Control Module: Testing and Inspection

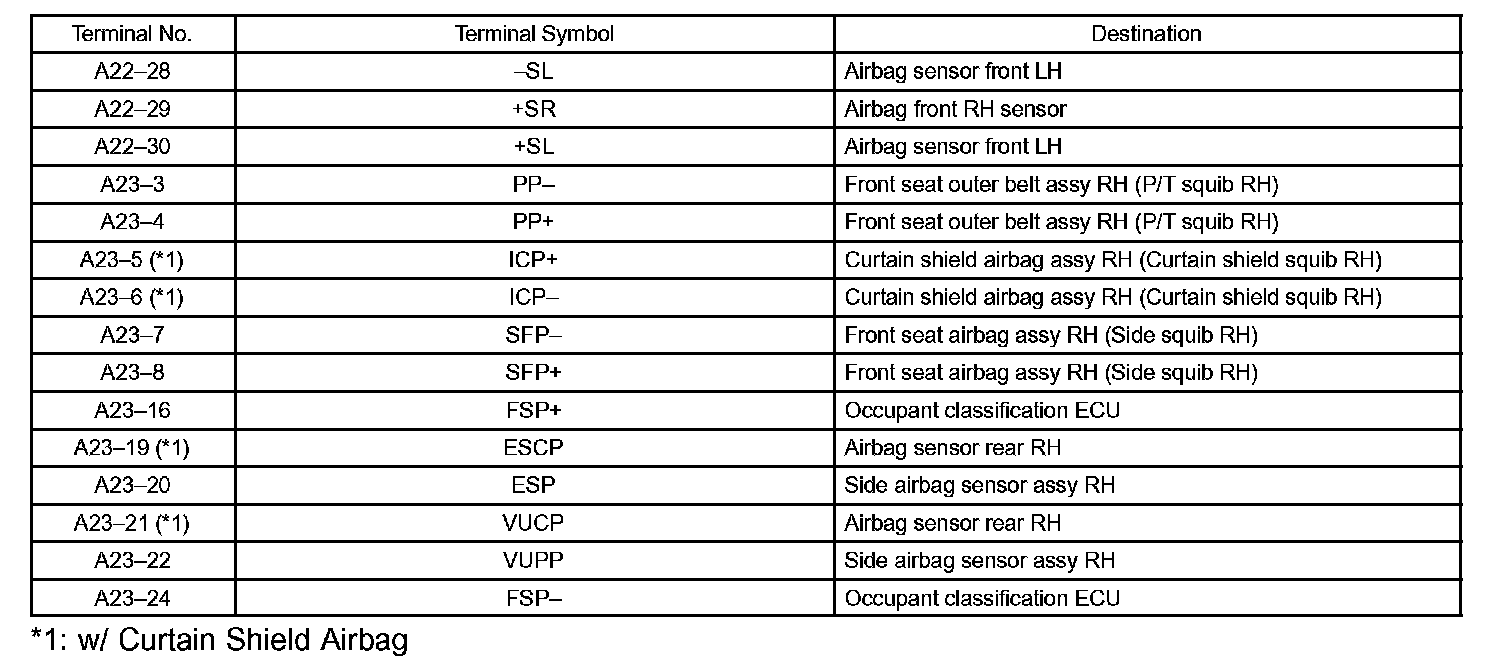

Terminal Of ECU/Pinouts - Airbag Sensor Assy Center Part 1:



Terminal Of ECU/Pinouts - Airbag Sensor Assy Center Part 2:

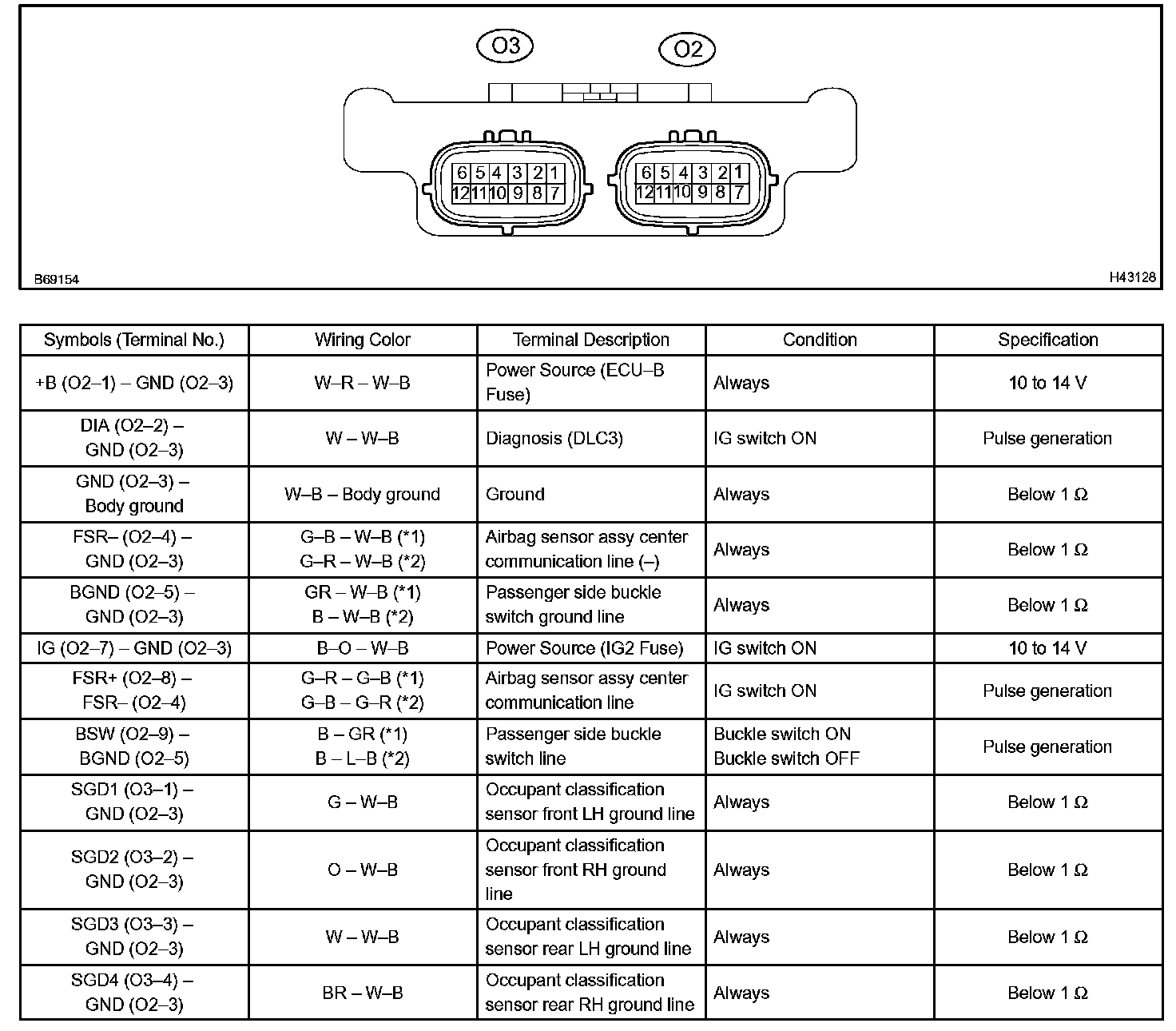

Terminal Of ECU/Pinouts - Occupant Classification ECU Part 1:

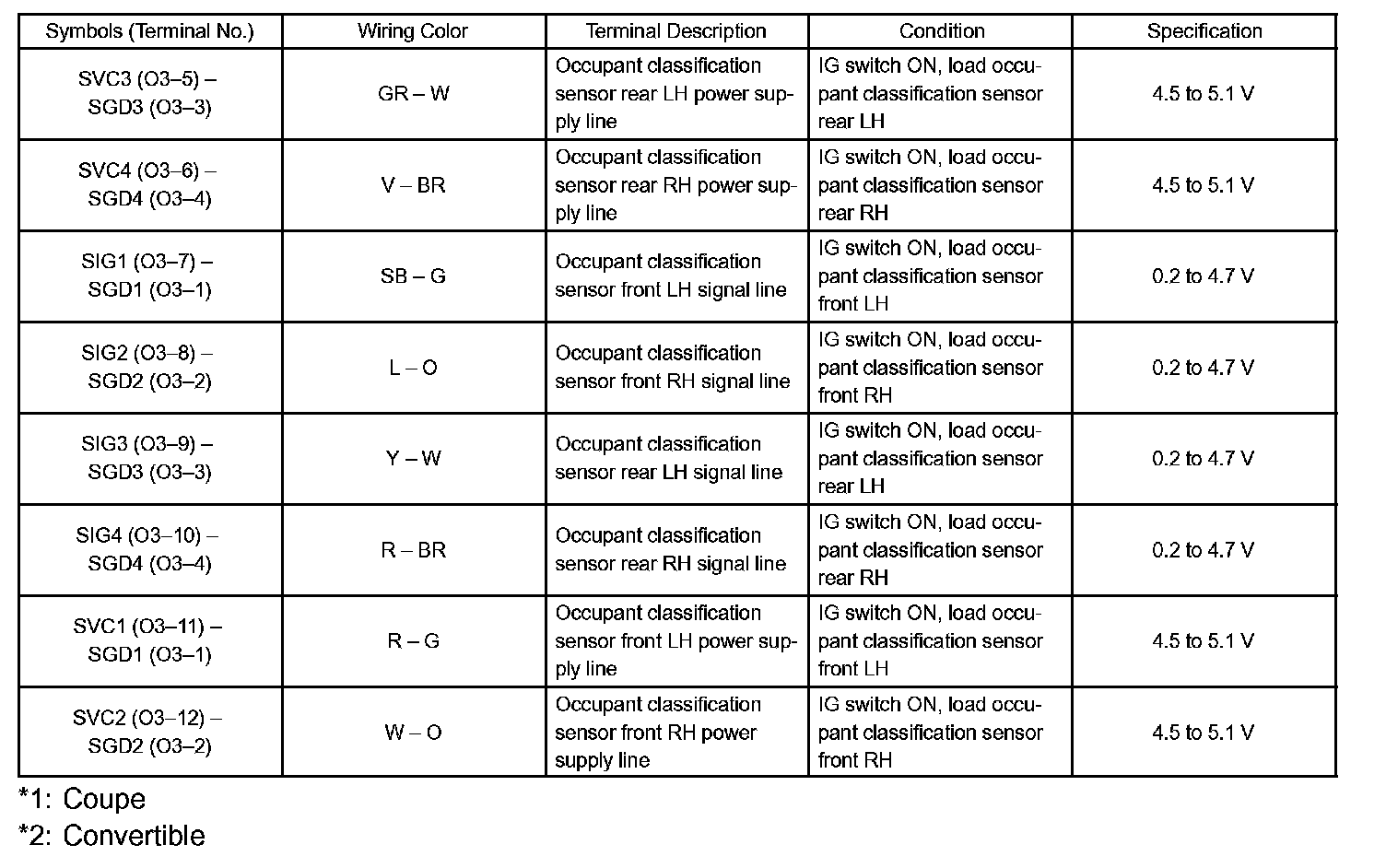

Terminal Of ECU/Pinouts - Occupant Classification ECU Part 2:
