Replacement
CURTAIN SHIELD AIR BAG ASSY LHREPLACEMENT
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REFER TO SERVICE PRECAUTIONS
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE ROOF HEADLINING ASSY
4. REMOVE CURTAIN SHIELD AIR BAG ASSY LH
a. Disconnect the connector from the curtain shield airbag assy LH.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

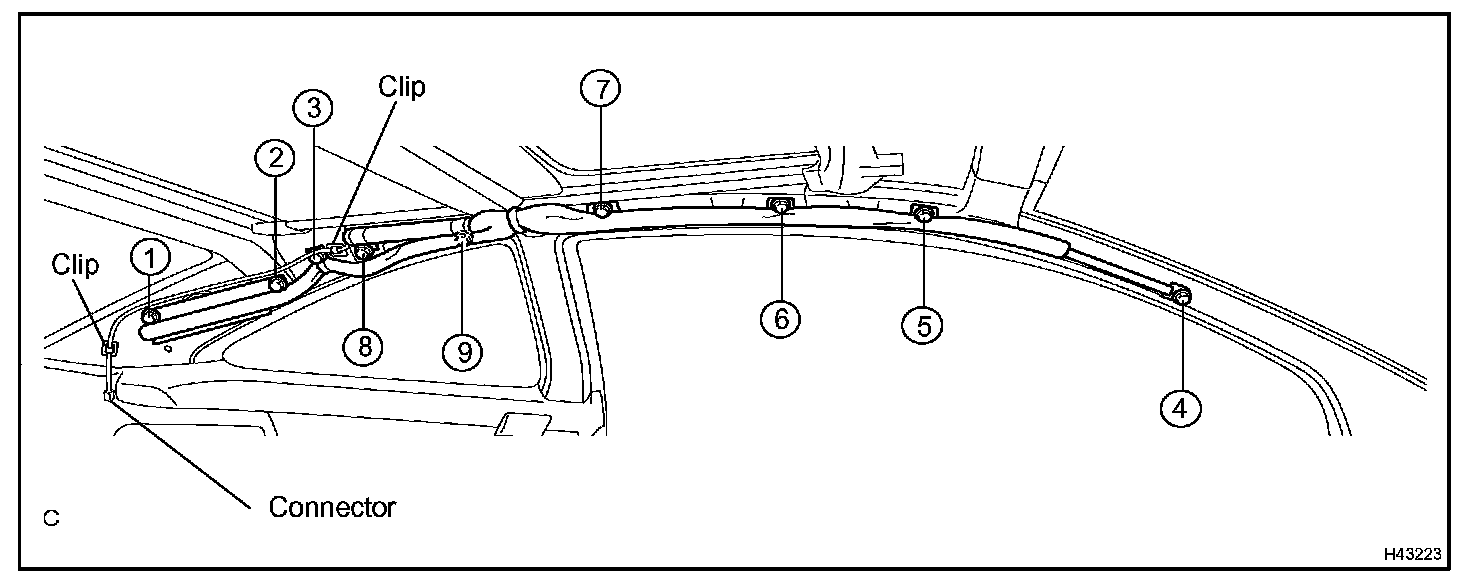

b. Remove the 9 bolts, 2 clips and the curtain shield airbag assy LH in the order shown in the illustration.
5. INSTALL CURTAIN SHIELD AIR BAG ASSY LH

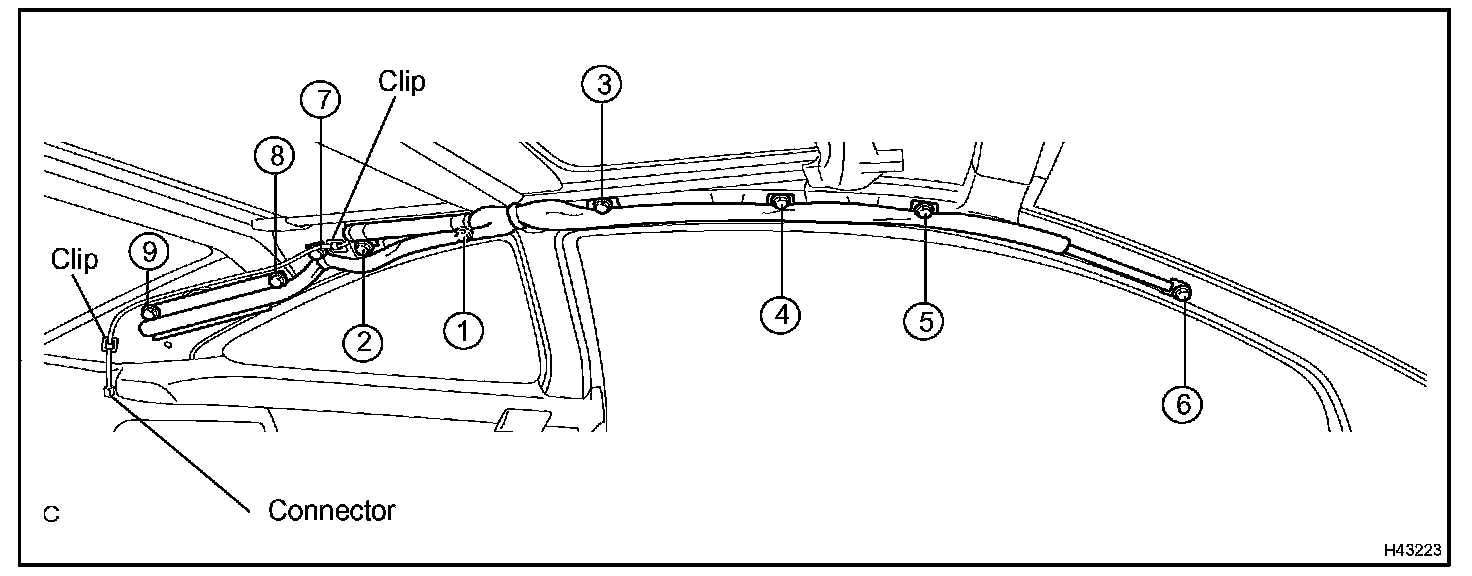

a. Install the curtain shield airbag assy LH with the 9 bolts and the 2 clips in the order shown in the illustration.
Torque:9.8 Nm (100 kgf.cm, 87 in.lbf)
b. Connect the connector to the curtain shield airbag assy LH.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
6. INSPECT CURTAIN SHIELD AIR BAG ASSY LH
7. INSTALL ROOF HEADLINING ASSY
8. CONNECT BATTERY NEGATIVE TERMINAL
NOTE: When disconnecting the negative (-) battery terminal, initialize the systems shown in the table after the terminal is reconnected.
9. INSPECT SRS WARNING LIGHT
