Clockspring Assembly / Spiral Cable: Service and Repair
Horn Button Assy:
SPIRAL CABLE SUB-ASSY
REPLACEMENT
HINT:
- Installation is in the reverse order of removal.
1. REFER TO SERVICE PRECAUTIONS
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL COVER LOWER NO.2
5. REMOVE STEERING WHEEL COVER LOWER NO.3
6. REMOVE HORN BUTTON ASSY
7. REMOVE STEERING WHEEL ASSY
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
8. REMOVE STEERING COLUMN COVER LWR

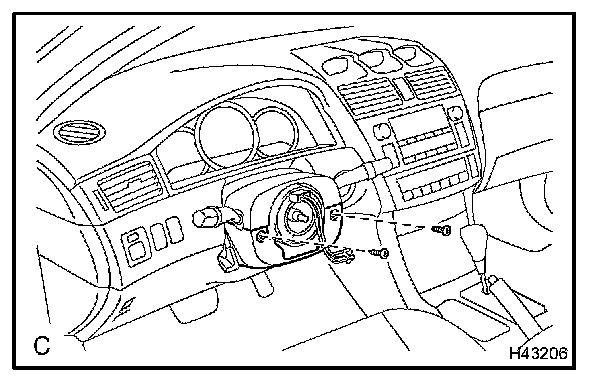

a. Remove the 2 screws and the steering column cover lower.
9. REMOVE STEERING COLUMN COVER
10. REMOVE SPIRAL CABLE SUB-ASSY
a. Disconnect the connectors from the spiral cable sub-assy.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

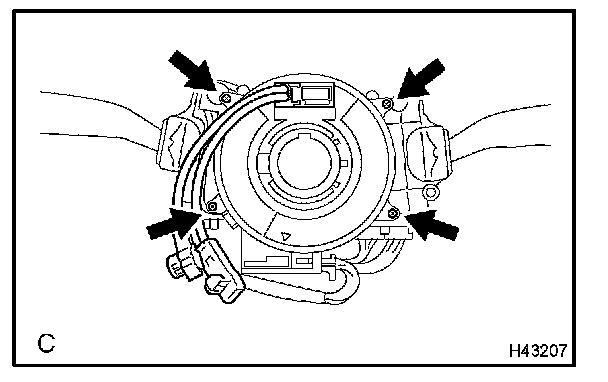

b. Remove the 4 screws and remove the spiral cable sub-assy.
11. INSPECT SPIRAL CABLE SUB-ASSY
a. If any of the following conditions occur, replace the spiral cable sub-assy with a new one.
Condition:
Scratches or cracks on the connector
Cracks, dents or chips in the spiral cable sub-assy
12. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
a. Check that the front wheels are facing straight ahead.
13. INSTALL SPIRAL CABLE SUB-ASSY
a. Set the turn signal switch to the neutral position.
NOTE: Make sure that the turn signal switch is in the neutral position or the pin of the turn signal switch may be snapped.
b. Install the spiral cable sub-assy with the 4 screws.
NOTE: When replacing the spiral cable sub-assy with a new one, remove the lock pin before installing the steering wheel assy.
c. Connect the connectors to the spiral cable sub-assy.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
14. INSTALL STEERING COLUMN COVER
15. INSTALL STEERING COLUMN COVER LWR
a. Install the steering column cover lower with the 2 screws.
16. ADJUST SPIRAL CABLE SUB-ASSY
a. Check that the ignition switch is off.
b. Check that the battery negative (-) terminal is disconnected.
CAUTION: After removing the terminal wait for at least 90 seconds before starting the operation.

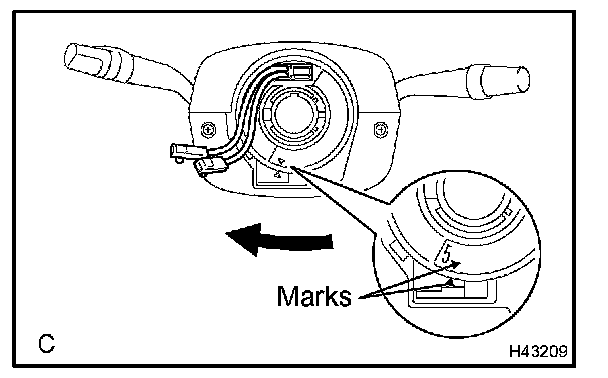

c. Turn the spiral cable sub-assy counterclockwise slowly by hand until it feels firm.

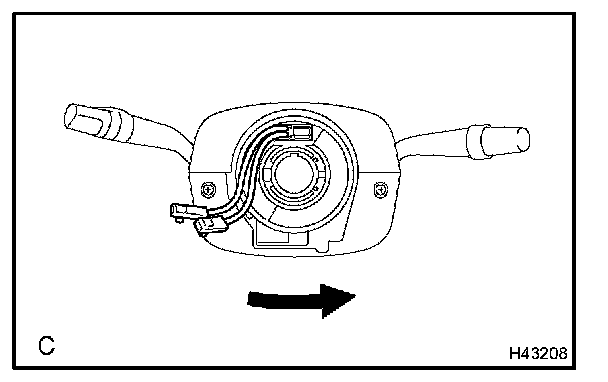

d. Rotate the spiral cable sub-assy clockwise approximately 2.5 turns to align the marks.
HINT: The spiral cable sub-assy will rotate approximately 2.5 turns to both left and right of the center.
17. INSTALL STEERING WHEEL ASSY
18. INSPECT STEERING WHEEL CENTER POINT
19. INSTALL HORN BUTTON ASSY
20. CONNECT BATTERY NEGATIVE TERMINAL
NOTE: When disconnecting the negative (-) battery terminal, initialize the systems shown in the table after the terminal is reconnected.
21. INSPECT HORN BUTTON ASSY
22. INSPECT SRS WARNING LIGHT
