DTC Check/Clear

DTC CHECK/CLEAR

SUPPLEMENTAL RESTRAINT SYSTEM DTC CHECK (USING HAND-HELD TESTER)

a. Check the DTCs.

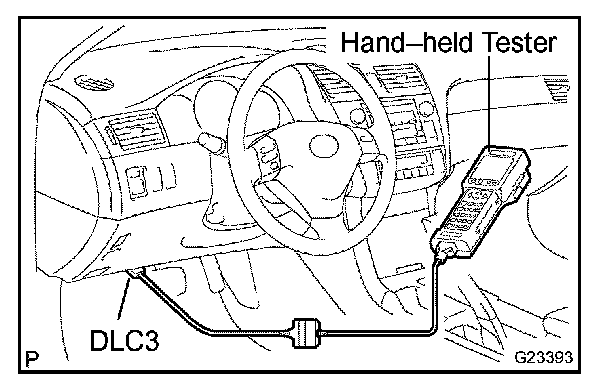

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Check the DTCs by following the prompts on the DLC3 tester screen.

[System Selection Screen]
"1: DIAGNOSIS" - "1: OBD/MOBD" - "MODEL YEAR" - "MODEL SELECTION = CAMRY SOLARA" - Select the option parts - "8: SRS AIRBAG" - "2: DTC INFO" - "1: PRESENT CODES"

HINT: Refer to the hand-held tester operator's manual for further details.

b. Clear the DTCs.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs by following the prompts on the tester screen.

[System Selection Screen]
"1: DIAGNOSIS" - "1: OBD/MOBD" - "MODEL YEAR" - "MODEL SELECTION = CAMRY SOLARA" - Select the option parts - "8: SRS AIRBAG" - "2: DTC INFO" - "4: CLEAR CODES"

HINT: Refer to the hand-held tester operator's manual for further details.

FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM DTC CHECK (USING HAND-HELD TESTER)

HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for supplemental restraint system, perform troubleshooting for the front passenger occupant classification system.
- Since the DTCs for the front passenger occupant classification system can only be output by the hand-held tester, use the hand-held tester to output the DTCs.

a. Check the DTCs.

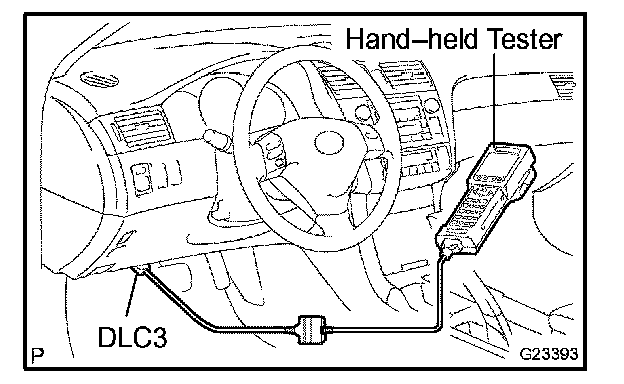

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Check the DTCs by following the prompts on the tester screen.

[System Selection Screen]
"1: DIAGNOSIS" - "1: OBD/MOBD" - "MODEL YEAR" - "MODEL SELECTION = CAMRY SOLARA" - Select the option parts - "9: OCCUPANT DETECT" - "2: DTC INFO" - "1: PRESENT CODES"

HINT: Refer to the hand-held tester operator's manual for further details.

b. Clear the DTCs.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs by following the prompts on the tester screen.

[System Selection Screen]
"1: DIAGNOSIS" - "1: OBD/MOBD" - "MODEL YEAR" - "MODEL SELECTION = CAMRY SOLARA" - Select the option parts - "9: OCCUPANT DETECT" - "2: DTC INFO" - "4: CLEAR CODES"

HINT: Refer to the hand-held tester operator's manual for further details.
