System Specifications

TIMING BELT

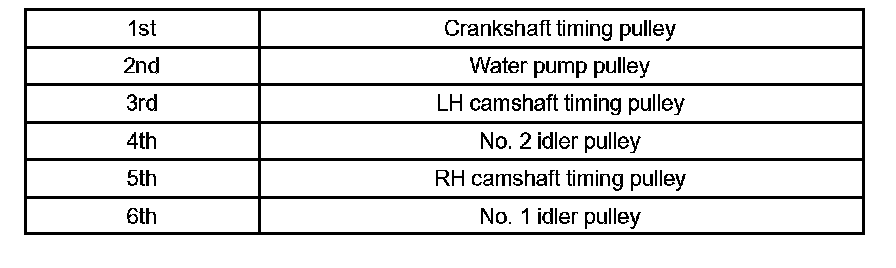

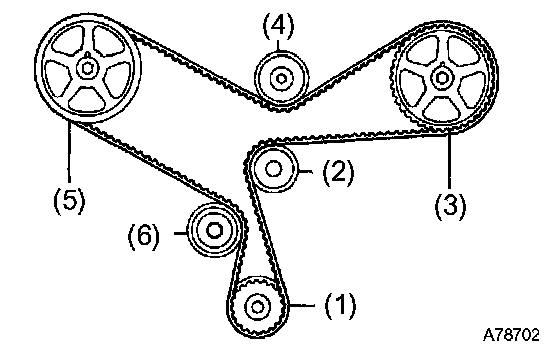

Install the timing belt in this order

TIMING BELT TENSIONER
Temporarily install the tensioner with the 2 bolts.
Torque 27 Nm (280 kgf-cm, 20 ft. lbs.)

TIMING COVER
Install the timing belt cover.
Torque 8.5 Nm (87 kgf-cm, 76 inch lbs.)

CRANKSHAFT PULLEY
Using SST, install the pulley bolt.
SST 09213-54015 (91651-60855), 09330-00021
Torque 220 Nm (2,250 kgf-cm, 162 ft. lbs.)
