Power Point Socket Assy

Audio & Visual System - Part 2:

POWER POINT SOCKET ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSY
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
3. REMOVE CONSOLE BOX SUB-ASSY REAR W/CONSOLE DOOR
4. REMOVE CONSOLE PANEL SUB-ASSY UPPER




5. REMOVE POWER POINT SOCKET ASSY

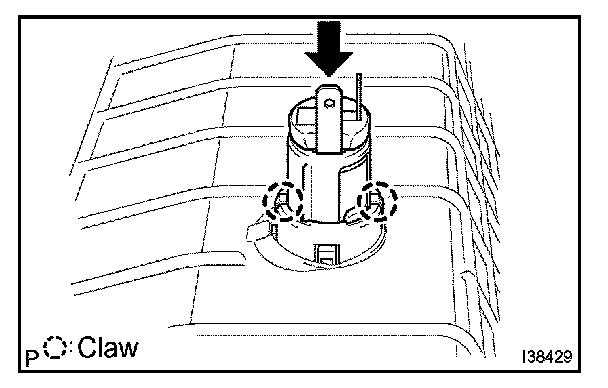

a. Disengage the 2 claws and remove the power point socket assy.

6. INSTALL POWER POINT SOCKET ASSY
a. Align the socket with the notch on the power point socket cover and install the power socket assy by pushing it in as hard as possible.
