Steering Mounted Controls Transmitter: Service and Repair

Audio & Visual System - Part 2:

STEERING PAD SWITCH ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REFER TO AIR BAG SYSTEM SERVICE PRECAUTIONS. Service Precautions
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSY. Service and Repair







6. REMOVE STEERING PAD SWITCH ASSY
a. Disconnect the connector.

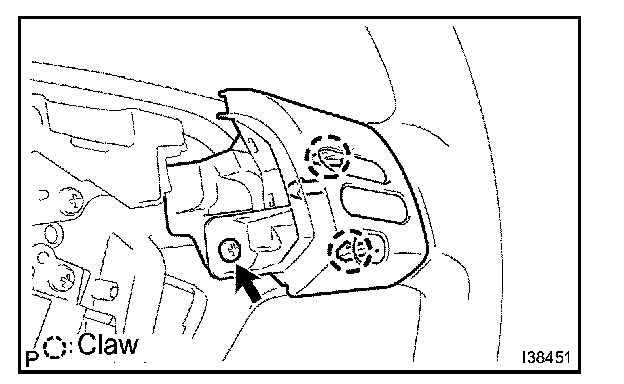

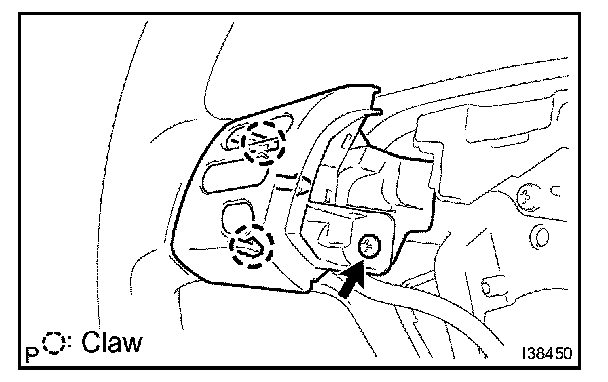

b. Remove the 2 screws.
c. Disengage the 4 claws and the pin. d.Remove the steering pad switch assy.

7. INSTALL HORN BUTTON ASSY
8. CONNECT BATTERY NEGATIVE TERMINAL




9. PERFORM INITIALIZATION
10. INSPECT HORN BUTTON ASSY
11. INSPECT SRS WARNING LIGHT
