Front Axle Hub Bolt Replacement

FRONT AXLE LH HUB BOLT
REPLACEMENT
1. REMOVE FRONT WHEEL
2. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE LH HUB BOLT





a) Temporarily install the 2 nuts and 2 washers to the front axle LH hub bolt as shown in the illustration.

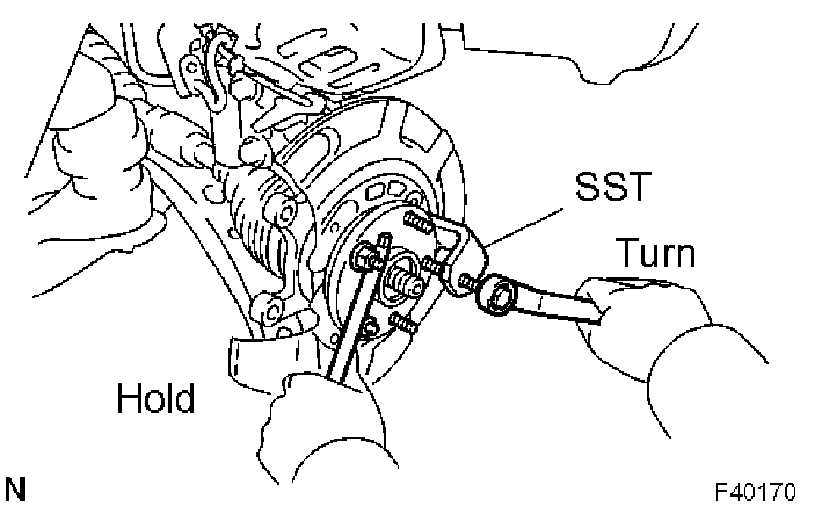

b) Using SST and a screwdriver or an equivalent to hold the front axle, remove the front axle LH hub bolt.
SST 09628-10011
5. INSTALL FRONT AXLE LH HUB BOLT

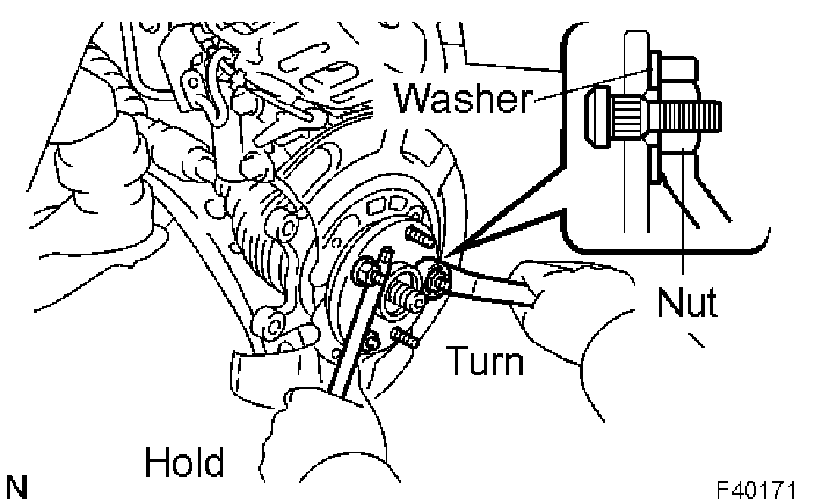

a) Install a washer and nut to a new front axle LH hub bolt as shown in the illustration.
b) Using a screwdriver to hold the front axle, install a new hub bolt by tightening the nut.
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CALIPER ASSY LH
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
