Clutch Accumulator ASSY Replacement

CLUTCH ACCUMULATOR ASSY
REPLACEMENT

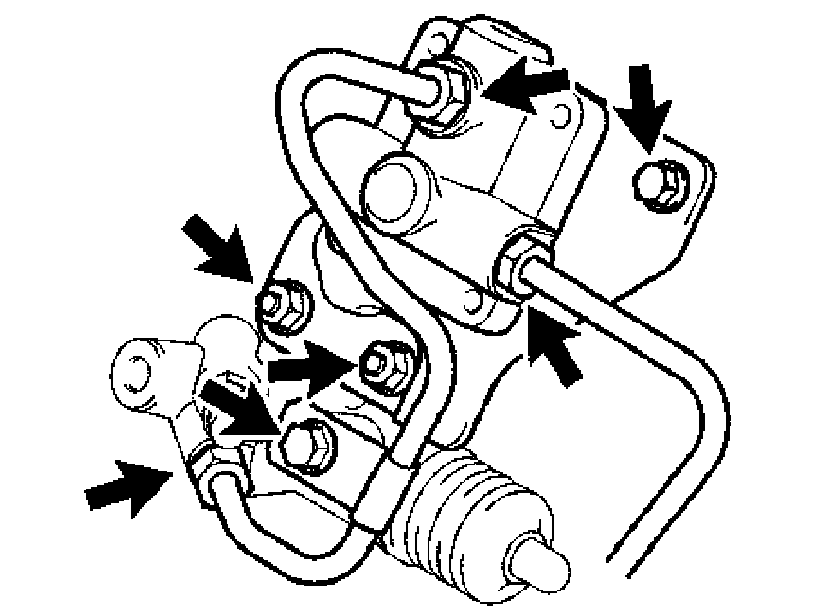

1. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE
a) Remove the bolt and tube clamp bracket.





b) Using SST, disconnect the 3 flexible hose tubes.
SST 09023-00100

HINT: Use a container to catch the fluid.

2. REMOVE CLUTCH ACCUMULATOR ASSY
a) Remove the bolt, 2 nuts and clutch accumulator assy.

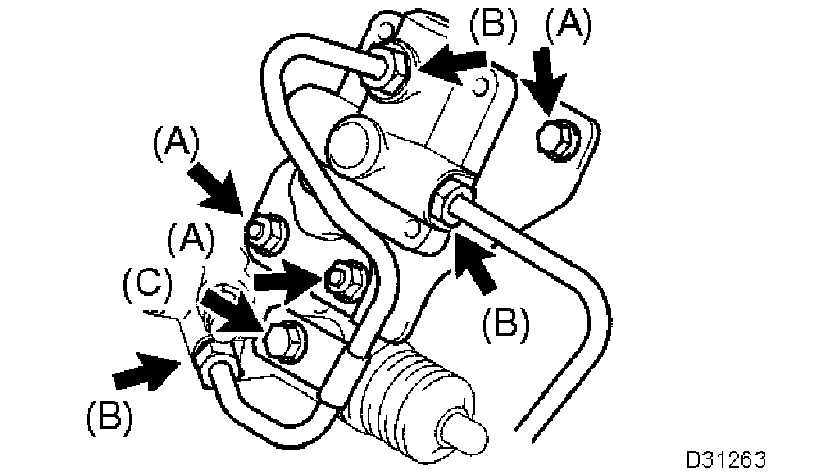

3. INSTALL CLUTCH ACCUMULATOR ASSY





a) Install the clutch accumulator assy with the 2 nuts and bolt.
Bolt, Nut: (A)
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
4. CONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE
a) Using SST, connect the 3 flexible hose tubes to the clutch accumulator assy.
SST 09023-00100
Flexible hose tube: (B)
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
b) Install the bolt and tube clamp bracket.
Bolt: (C) Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
5. BLEED CLUTCH PIPE LINE
a) Fill the brake reservoir tank with brake fluid and bleed the clutch system.
Torque: 8.4 Nm (85 kgf-cm, 74 inch lbs.)
6. CHECK CLUTCH FLUID LEAKAGE
7. CHECK FLUID LEVEL IN RESERVOIR
