Washer Motor and Pump

ON-VEHICLE INSPECTION




1. WINDSHIELD WASHER MOTOR AND PUMP ASSY
a. Operation Check
1. Fill the washer jar with washer fluid.

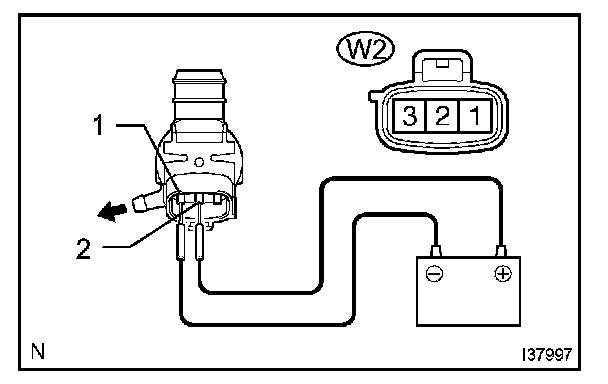

2. Connect the positive battery (+) lead to terminal 2 of the windshield washer motor and pump assy, and the negative battery (-) lead to terminal 1. Check that washer fluid flows from the washer jar.
