Water Pump

WATER PUMP ASSEMBLY

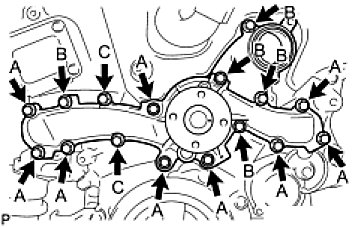

Install a new water pump gasket and the water pump assembly with the 16 bolts.
Bolt A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Bolts B and C - Torque 9.1 Nm (93 kgf-cm, 81 in-lbf)

- Make sure that there is no oil on the threads of bolts A.
- Be sure to replace 2 bolts C with new ones or reuse them after applying adhesive 1344.
Adhesive: Toyota Genuine Adhesive 1344, Three Bond 1344 or Equivalent
