IE (Roof Wire And Instrument Panel J/B (Lower Finish Panel))
IE (Roof Wire And Instrument Panel J/B (Lower Finish Panel))

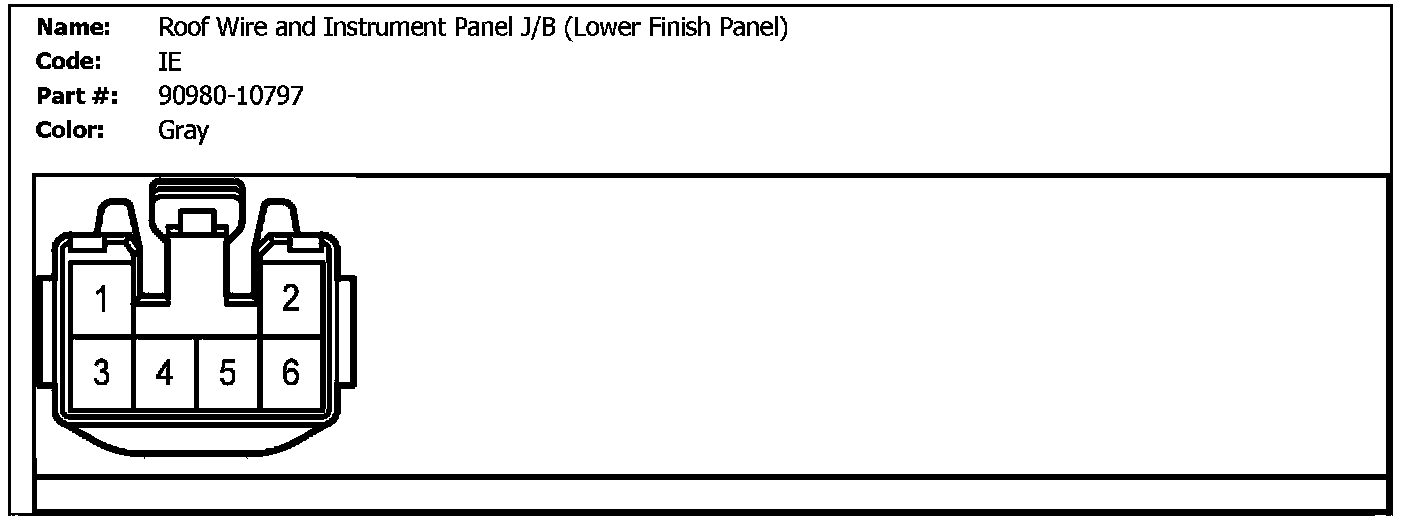

IE (Roof Wire And Instrument Panel J/B (Lower Finish Panel)):

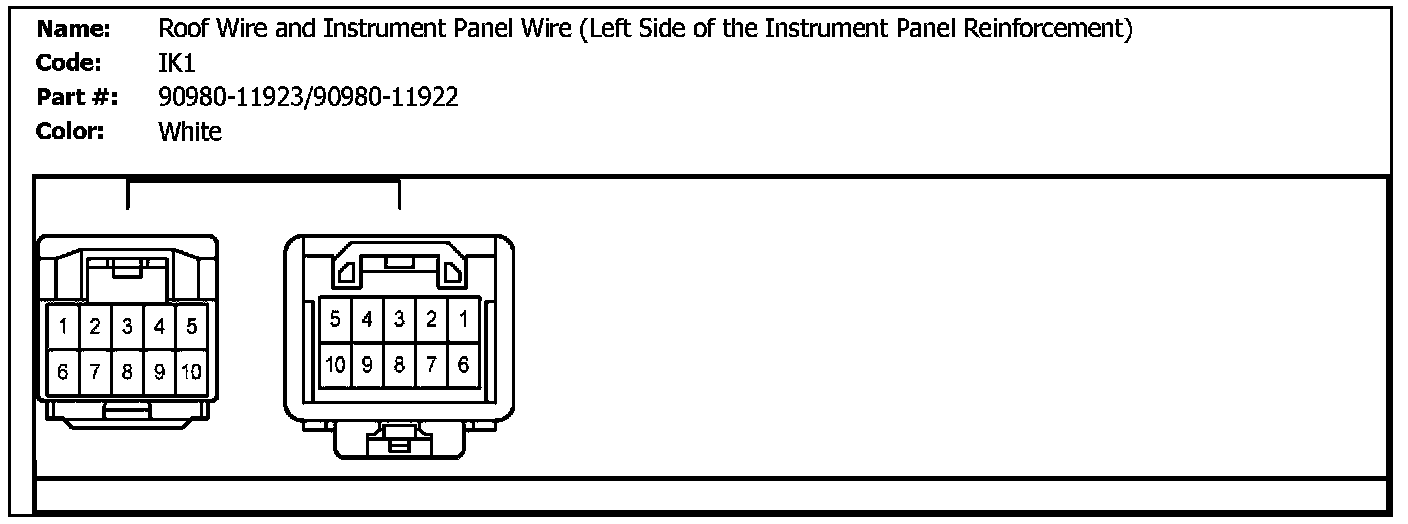

IK1 (Roof Wire And Instrument Panel Wire (Left Side Of The Instrument Panel Reinforcement)):
