P10 (Power Window Motor Rear LH)
P10 (Power Window Motor Rear LH)

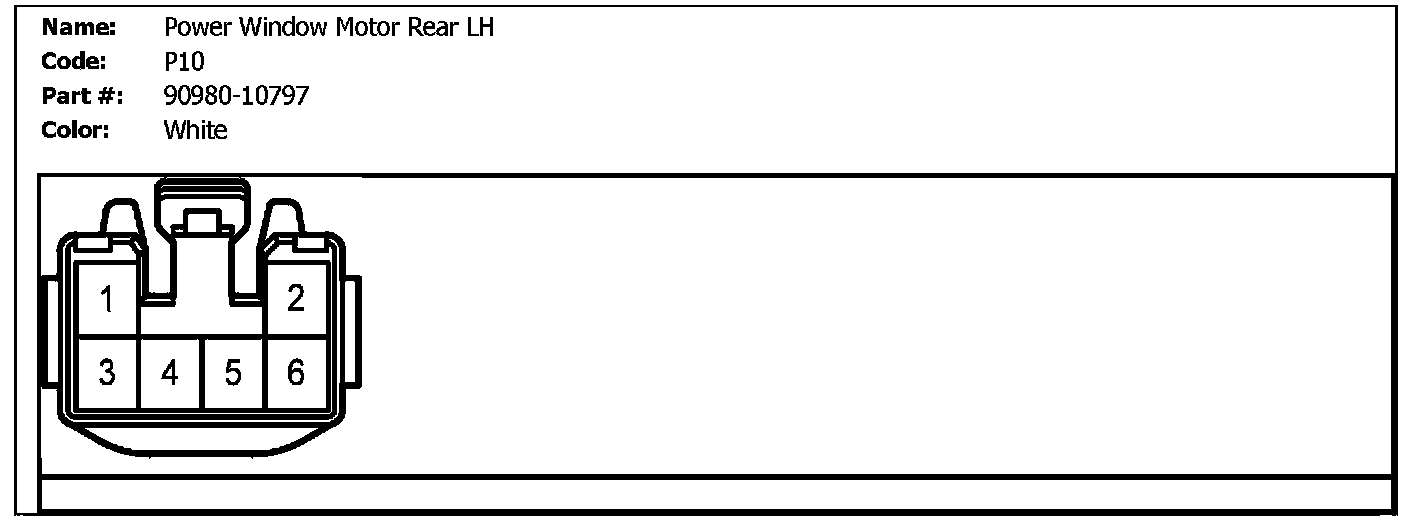

P10 (Power Window Motor Rear LH):

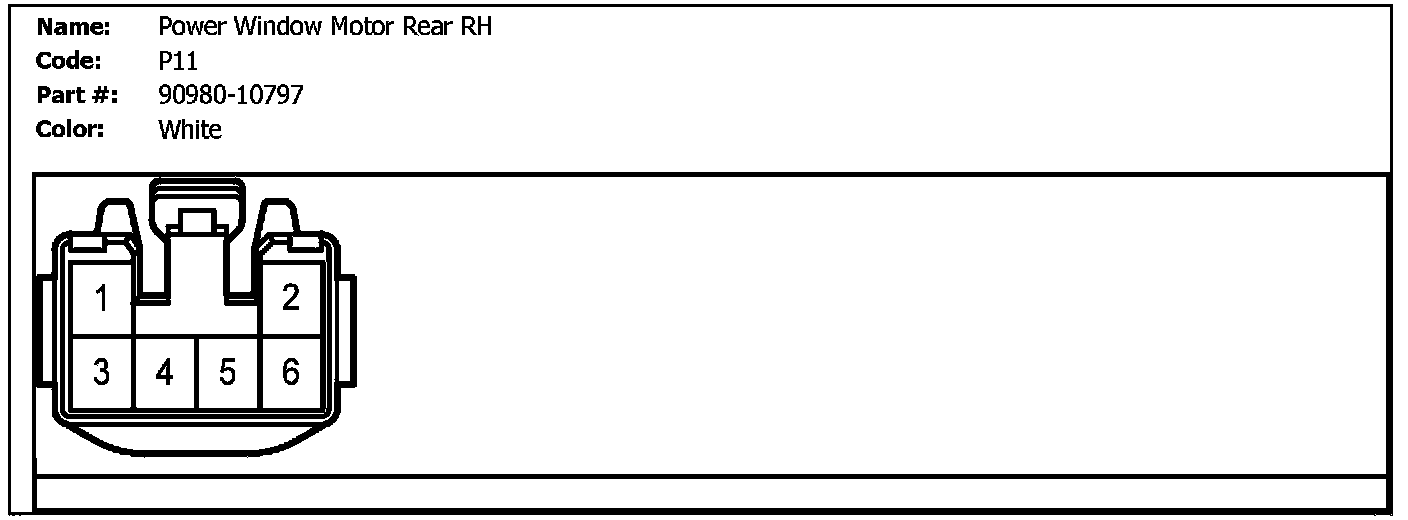

P11 (Power Window Motor Rear RH):
P8 (Power Window Motor Front LH):

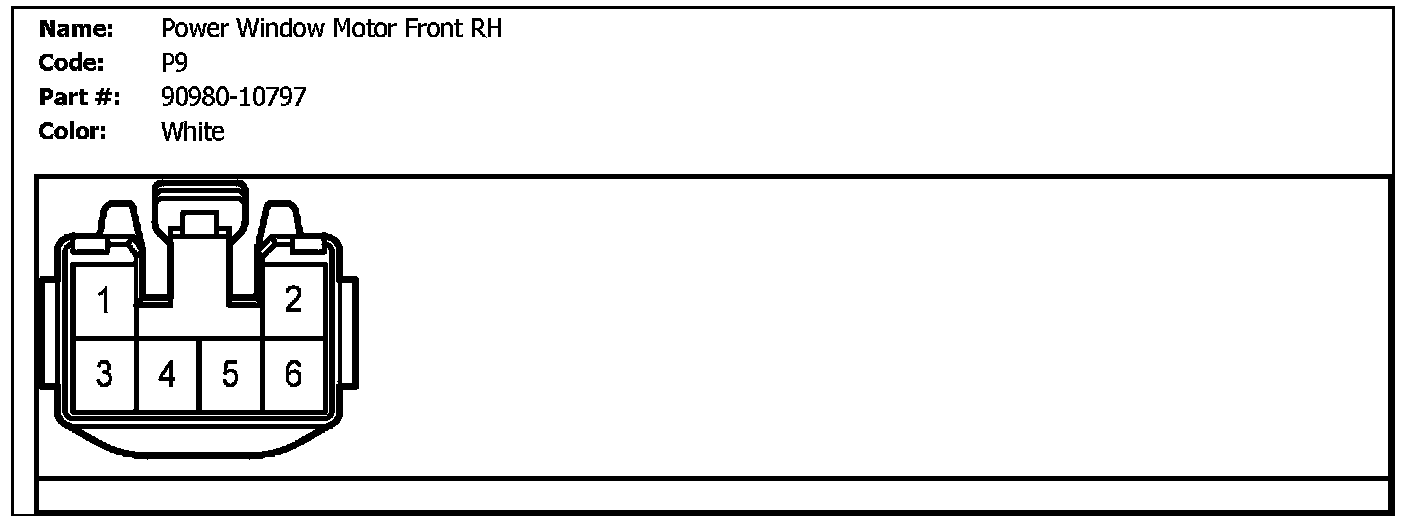

P9 (Power Window Motor Front RH):
