Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2008
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Tank
>>
Locations
Fuel Tank: Locations

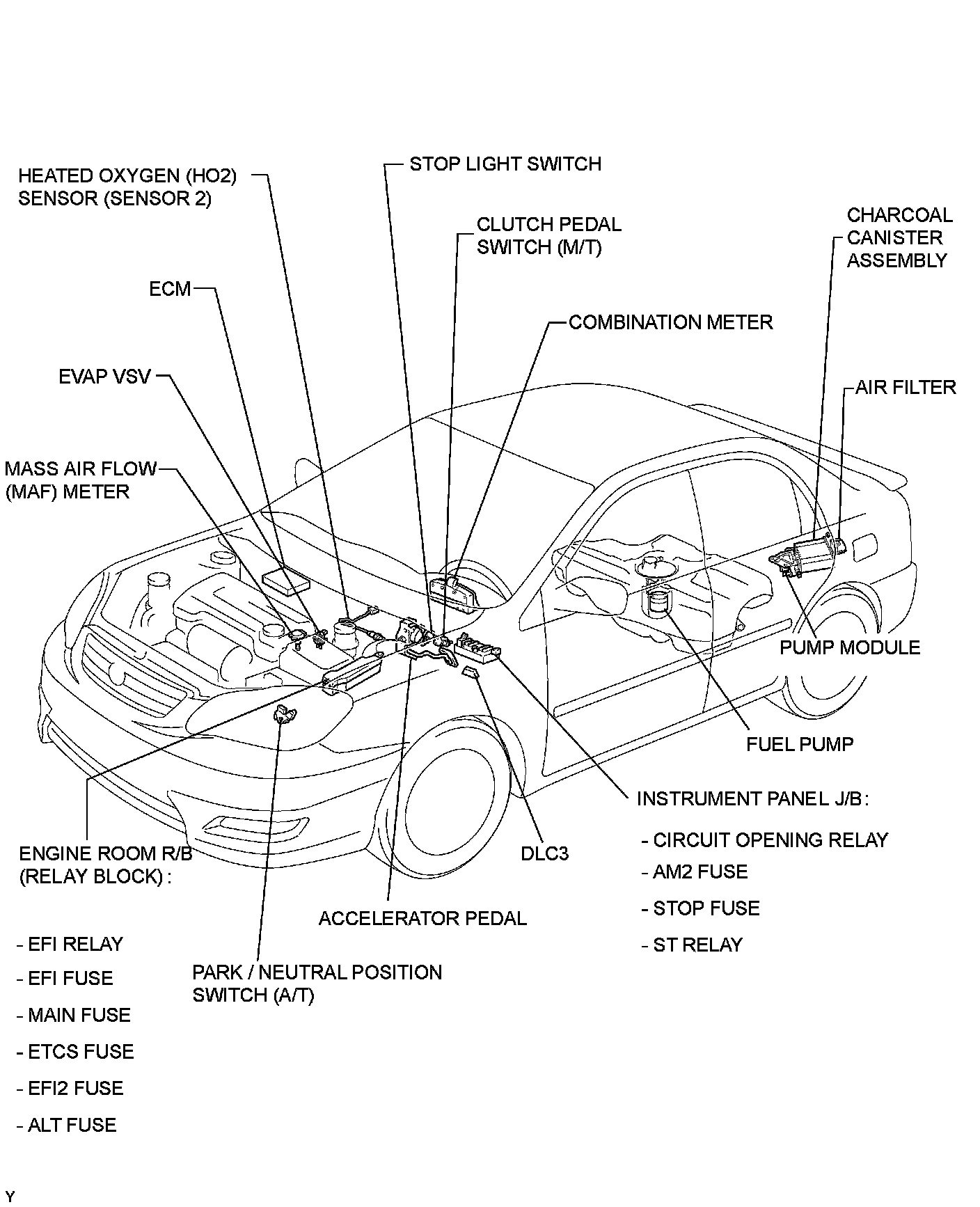

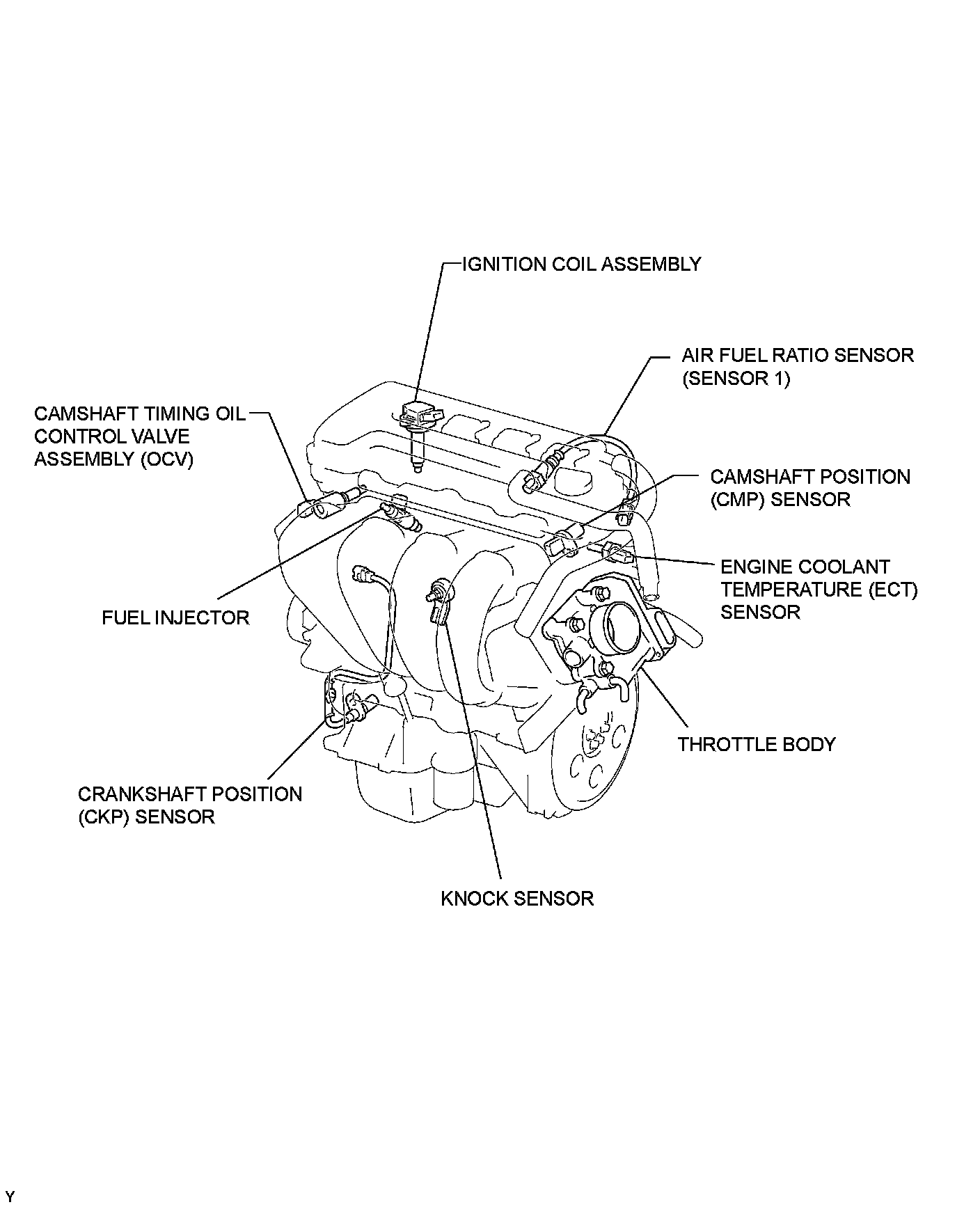

1ZZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
