Forward Clutch
Forward Clutch

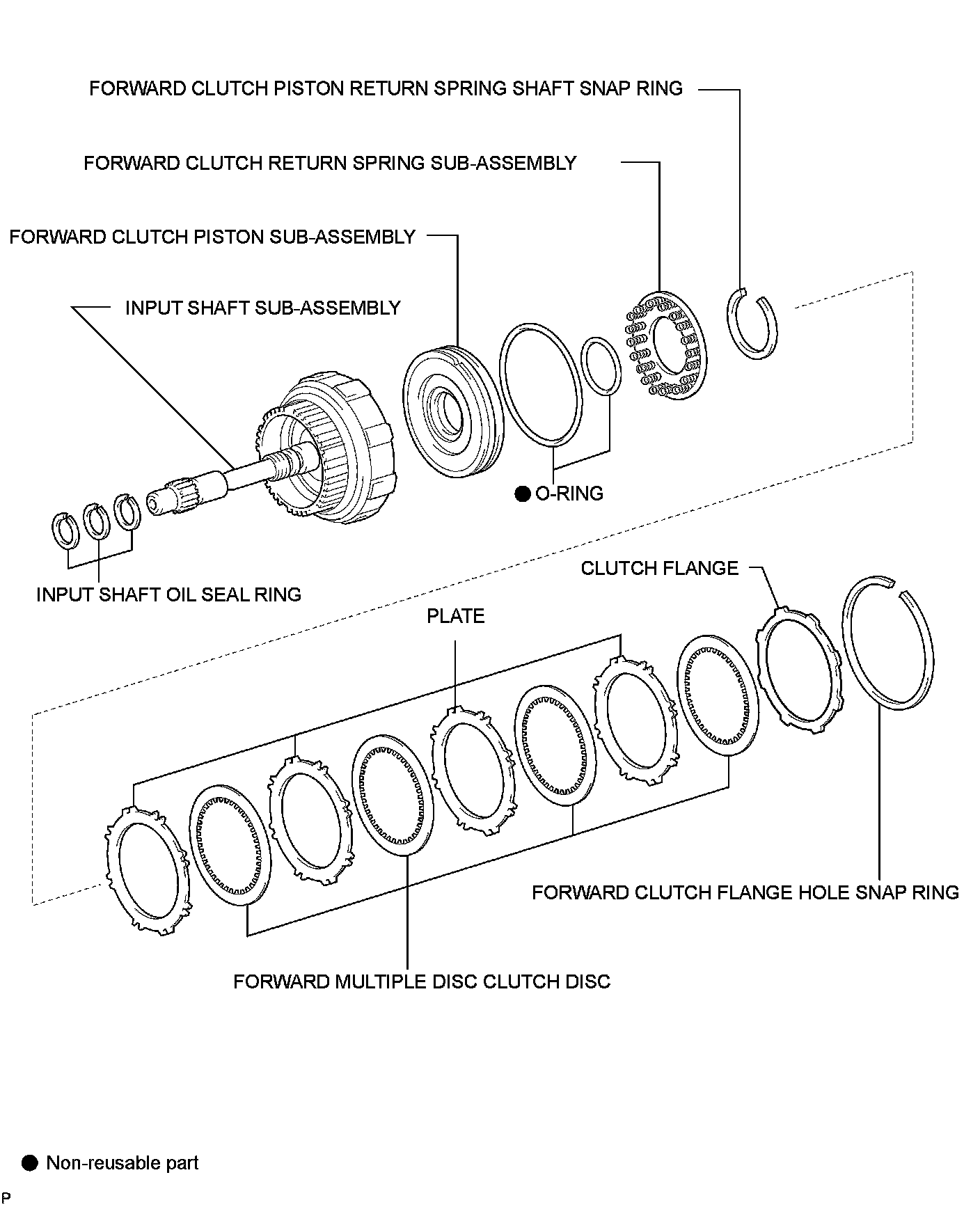

A245E AUTOMATIC TRANSAXLE: FORWARD CLUTCH: COMPONENTS
COMPONENTS
ILLUSTRATION
