Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Relays and Modules - Brakes and Traction Control
>>
Electronic Brake Control Module
>>
Service and Repair
>>
Components
Components

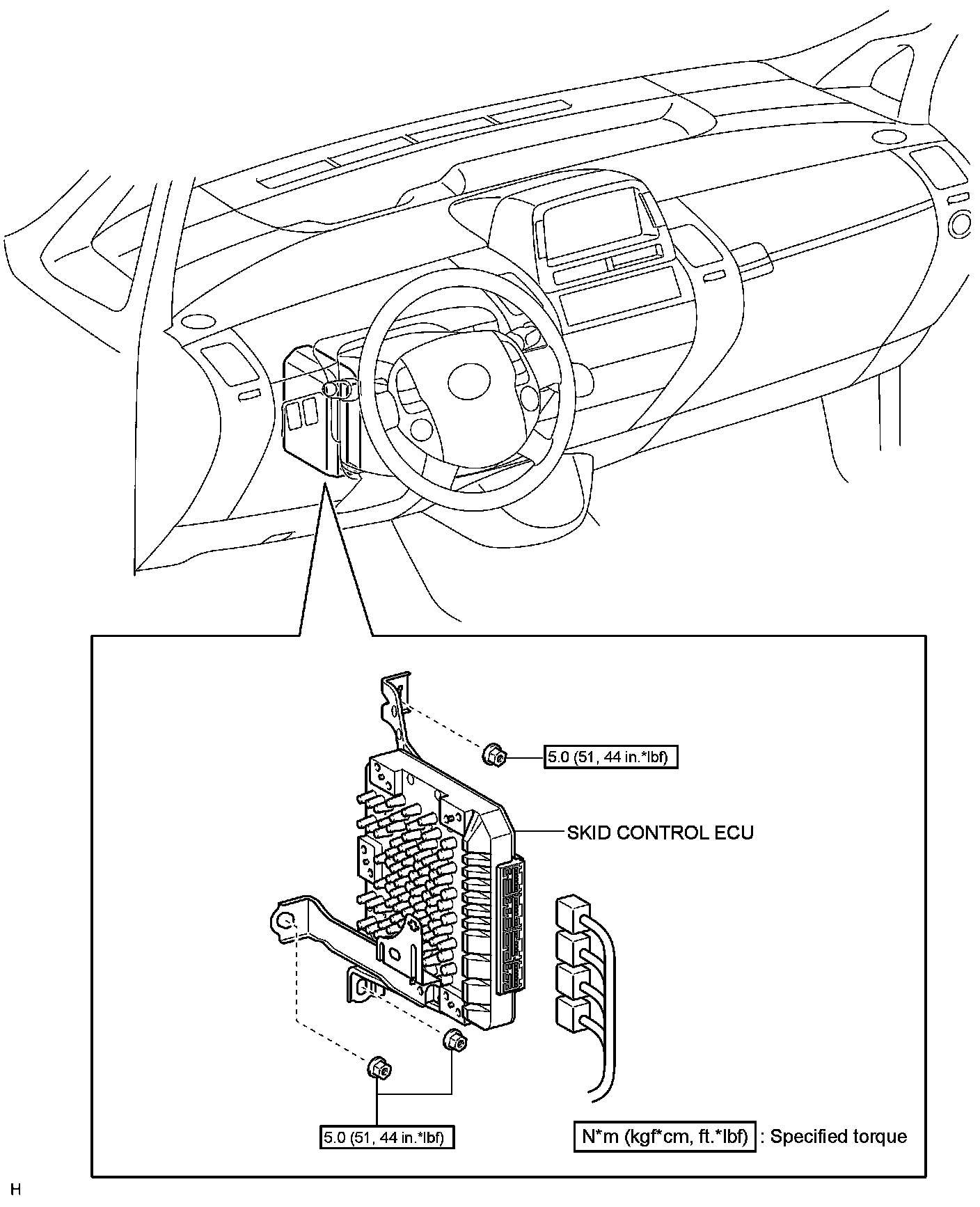

BRAKE CONTROL: SKID CONTROL ECU:
COMPONENTS
