Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING RECEIVER:

INSTALLATION





1. INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY

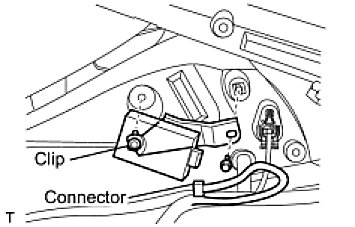

(a) Attach the clip and install the bolt with the receiver.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
(b) Connect the connector.
2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH (Installation)

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (Installation)

4. INSTALL REAR DECK TRIM COVER (Installation)

5. INSTALL REAR FLOOR NO. 1 BOARD (Installation)

6. INSTALL DECK FLOOR BOX LH
7. INSTALL DECK FLOOR BOX REAR
8. INSTALL REAR FLOOR NO. 4 BOARD
9. INSTALL REAR FLOOR NO. 3 BOARD
10. INSTALL REAR FLOOR NO. 2 BOARD
11. INSTALL TONNEAU COVER ASSEMBLY
12. INSTALL BACK DOOR WEATHERSTRIP
13. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (Installation)

14. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
15. INSTALL REAR SIDE SEATBACK FRAME LH (Installation)

16. INSTALL REAR SIDE SEATBACK FRAME RH (Installation)

17. INSTALL REAR DOOR SCUFF PLATE RH (Installation)

18. INSTALL REAR SEAT CUSHION ASSEMBLY (Installation)

19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
- When the warning light is illuminated or the battery has been disconnected and reconnected, pressing the power switch may not start the system on the first try. If so, press the power switch again.
- With the power switch's power mode changed to ON (IG), disconnect the battery. If the key is not in the key slot during reconnection, DTC B2799 may be output.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).

20. REGISTER TRANSMITTER ID
(a) Register the transmitter ID (Registration).
21. INSPECT TIRE PRESSURE WARNING SYSTEM
(a) Inspect the tire pressure warning system (Test Mode Procedure).
