Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING RECEIVER:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).

2. REMOVE REAR SEAT CUSHION ASSEMBLY (Removal)

3. REMOVE REAR DOOR SCUFF PLATE RH (Removal)

4. REMOVE REAR SIDE SEATBACK FRAME LH (Removal)

5. REMOVE REAR SIDE SEATBACK FRAME RH (Removal)

6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (Removal)

8. REMOVE BACK DOOR WEATHERSTRIP
9. REMOVE TONNEAU COVER ASSEMBLY
10. REMOVE REAR FLOOR NO. 2 BOARD
11. REMOVE REAR FLOOR NO. 3 BOARD
12. REMOVE REAR FLOOR NO. 4 BOARD
13. REMOVE DECK FLOOR BOX REAR
14. REMOVE DECK FLOOR BOX LH
15. REMOVE REAR FLOOR NO. 1 BOARD (Removal)

16. REMOVE DECK TRIM COVER REAR (Removal)

17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (Removal)

18. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH (Removal)

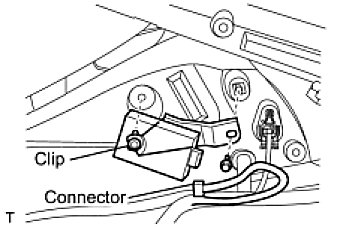

19. REMOVE TIRE PRESSURE WARNING RECEIVER ASSEMBLY
(a) Disconnect the connector.
(b) Remove the bolt.
(c) Using a clip remover, detach the clip and remove the receiver.
