ABS (w/ VSC), TRAC, VSC

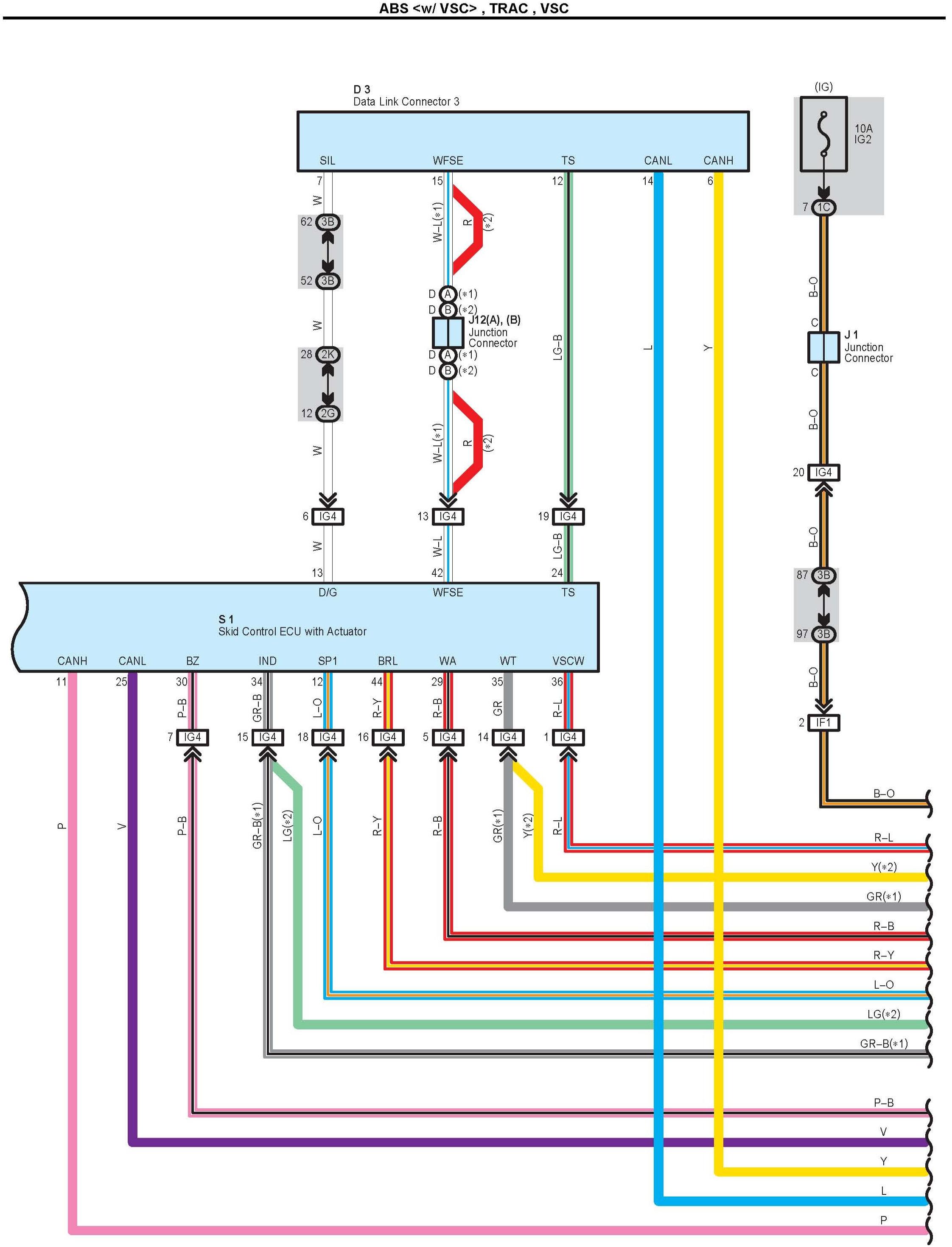

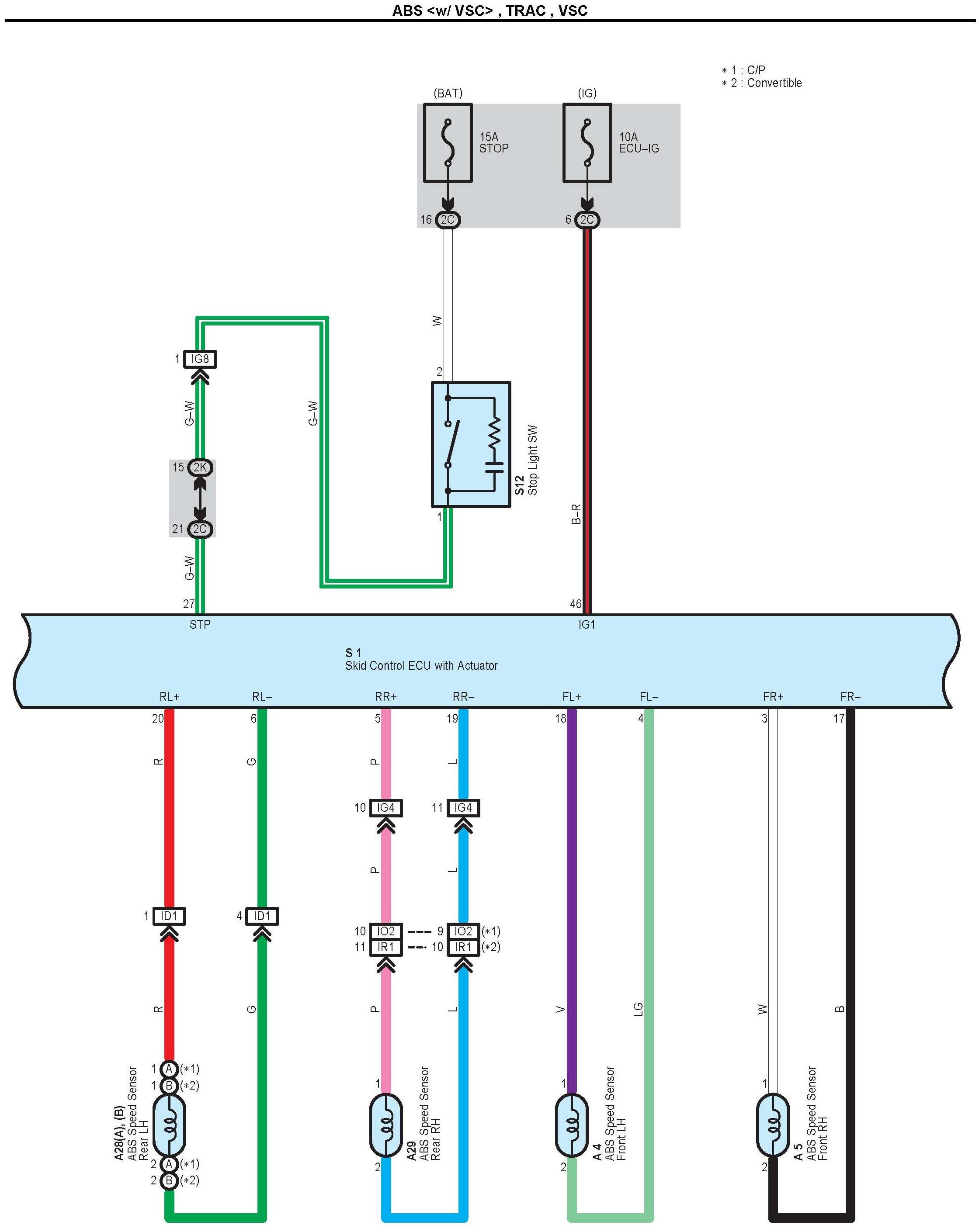

ABS (w/ VSC), TRAC, VSC Part 1:

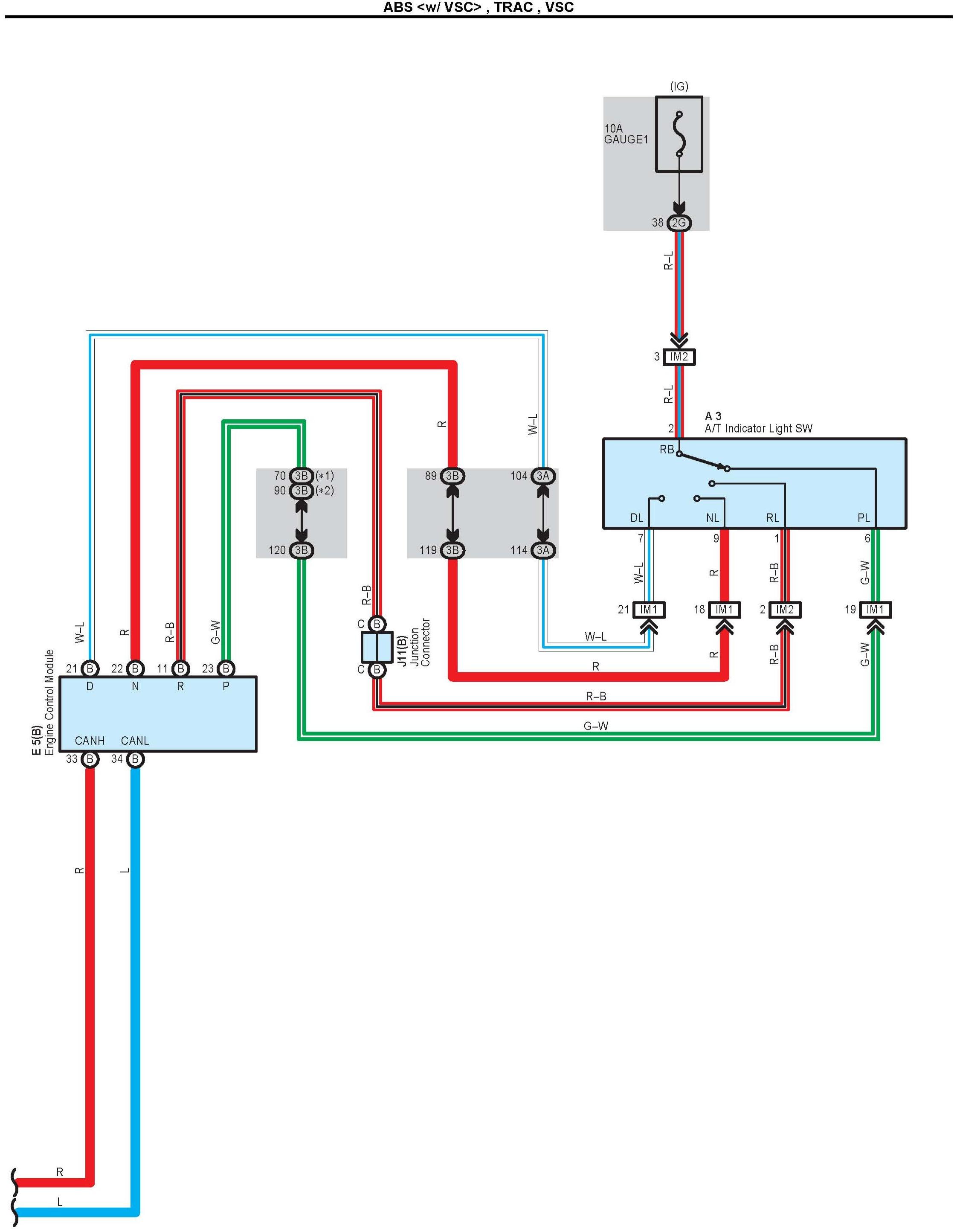

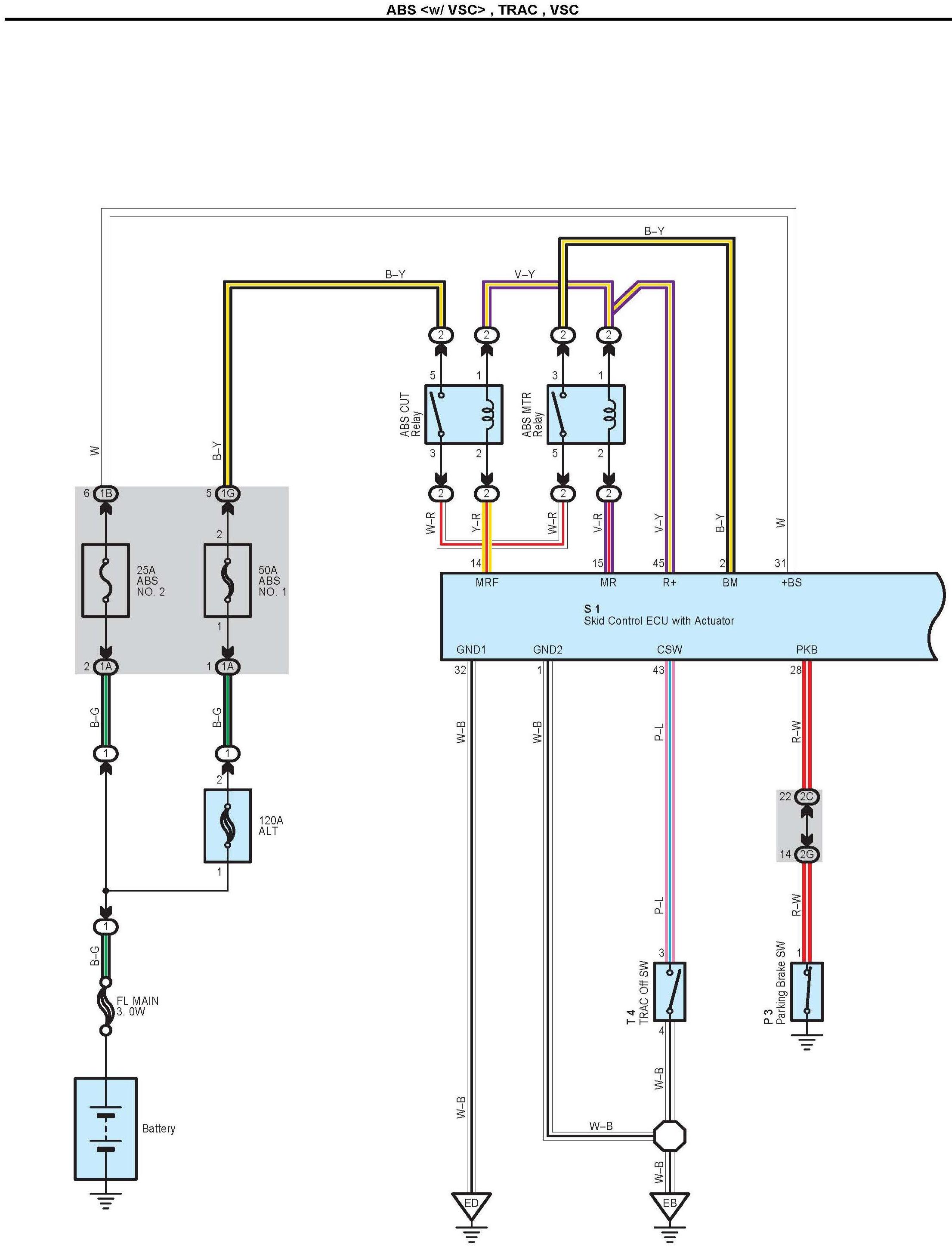

ABS (w/ VSC), TRAC, VSC Part 2:

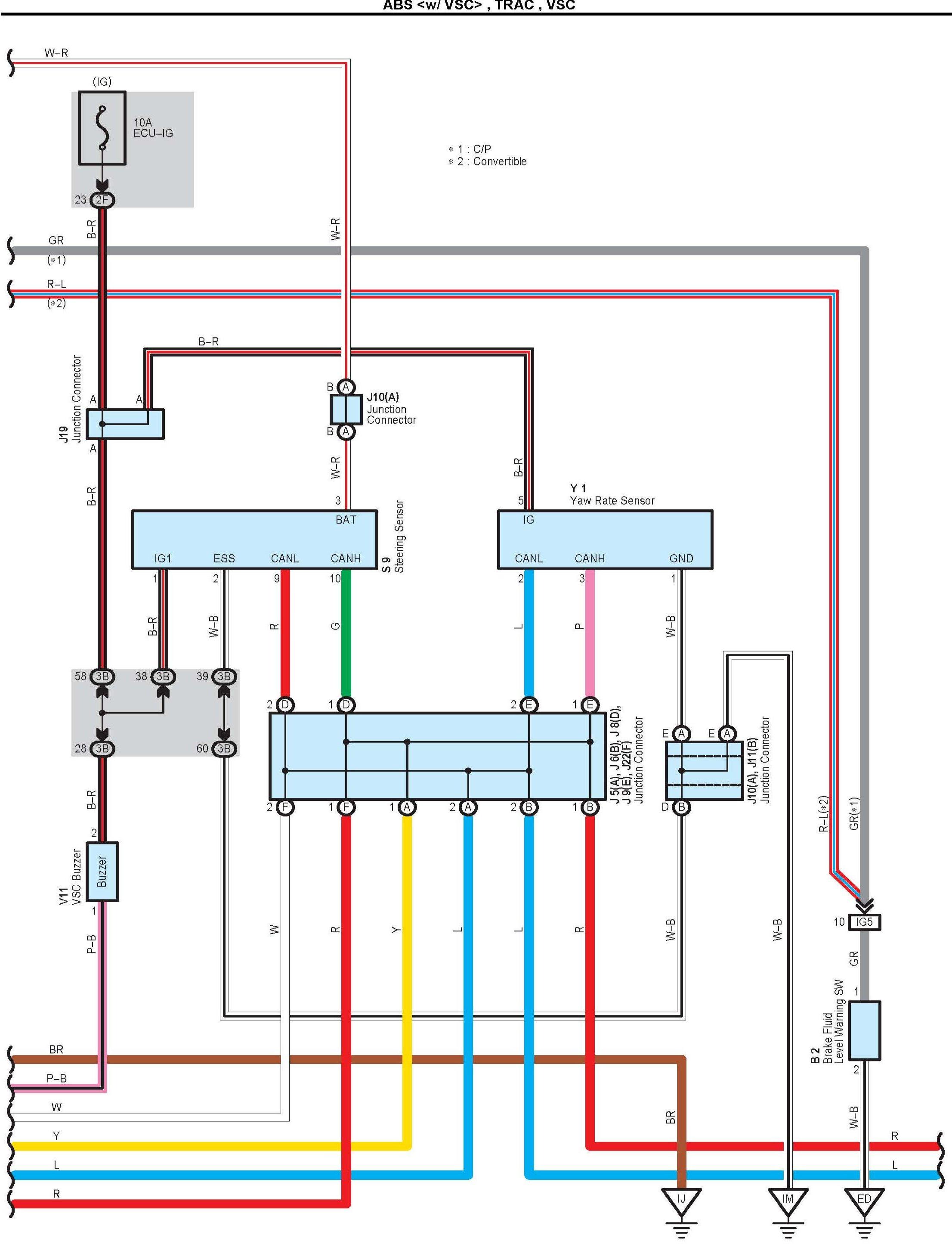

ABS (w/ VSC), TRAC, VSC Part 3:

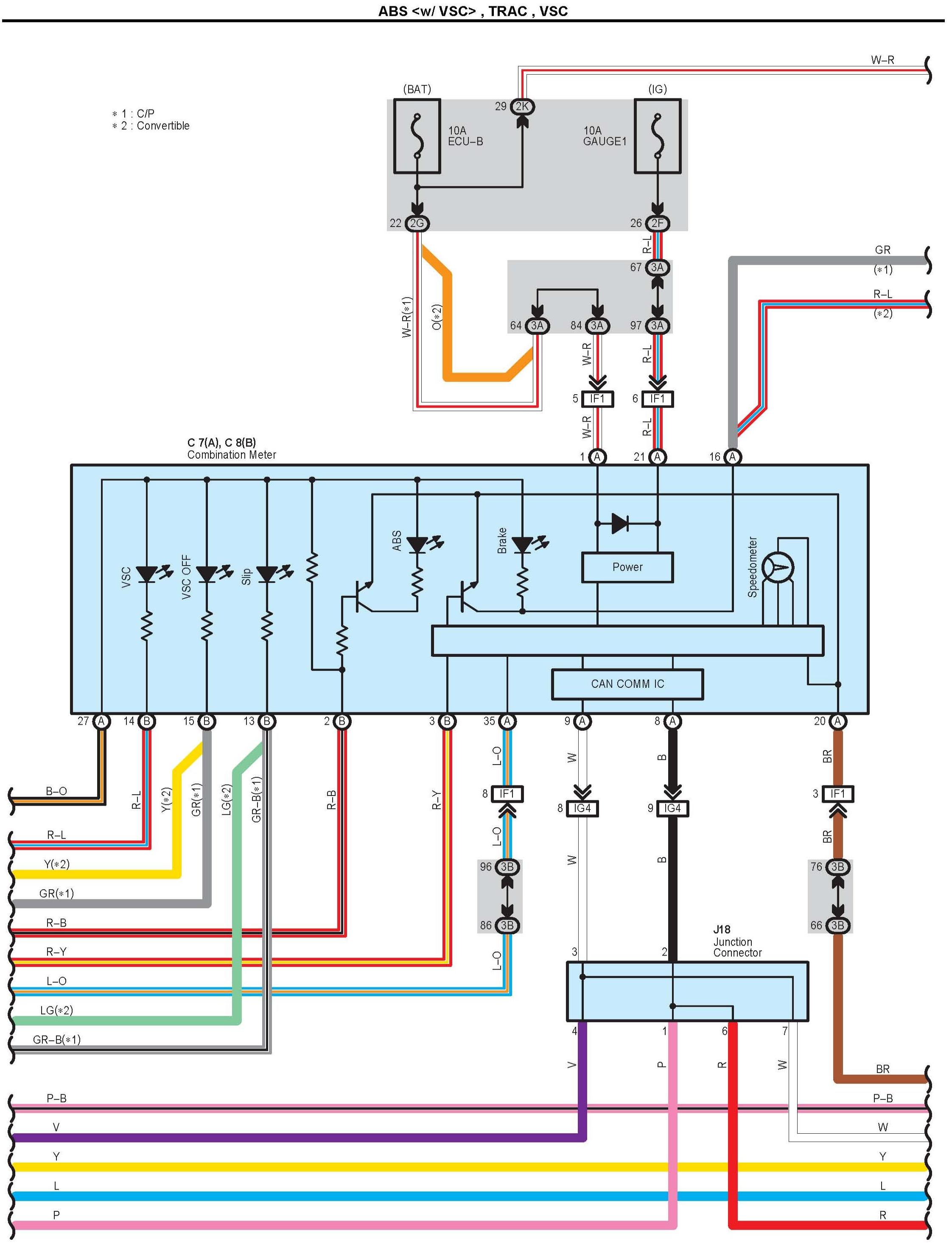

ABS (w/ VSC), TRAC, VSC Part 4:

ABS (w/ VSC), TRAC, VSC Part 5:

ABS (w/ VSC), TRAC, VSC Part 6:

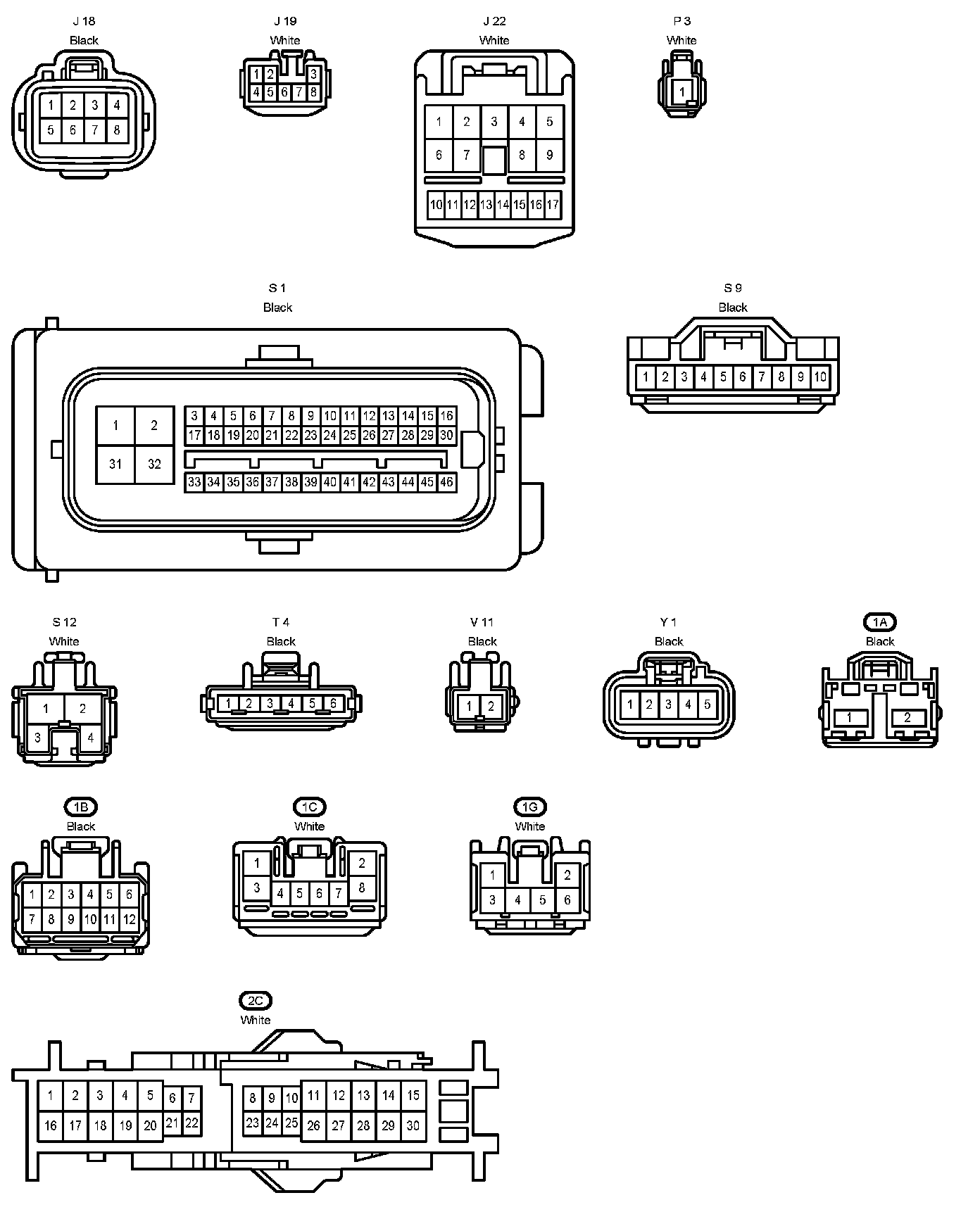

Connector Pin Outs Part 1:

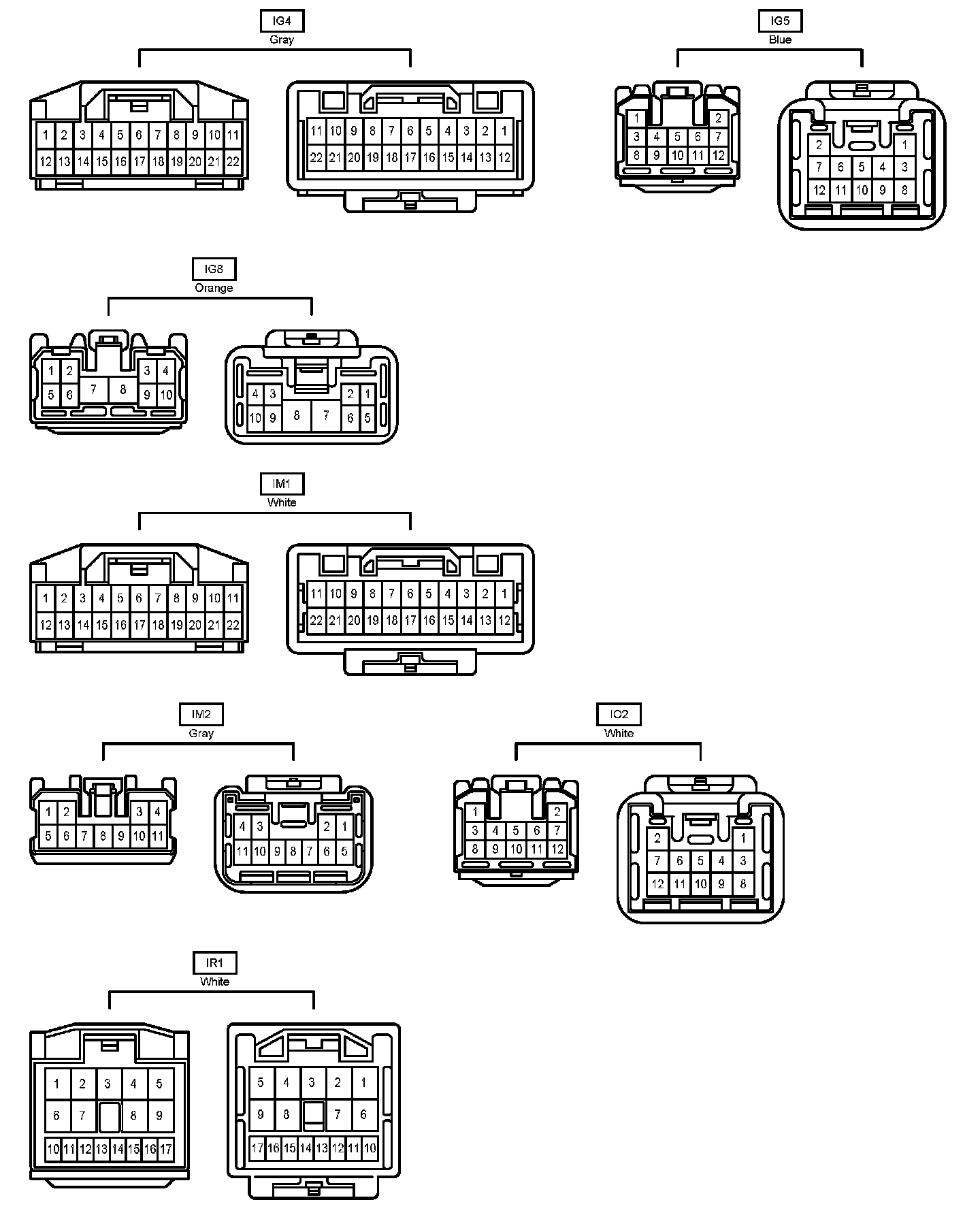

Connector Pin Outs Part 2:

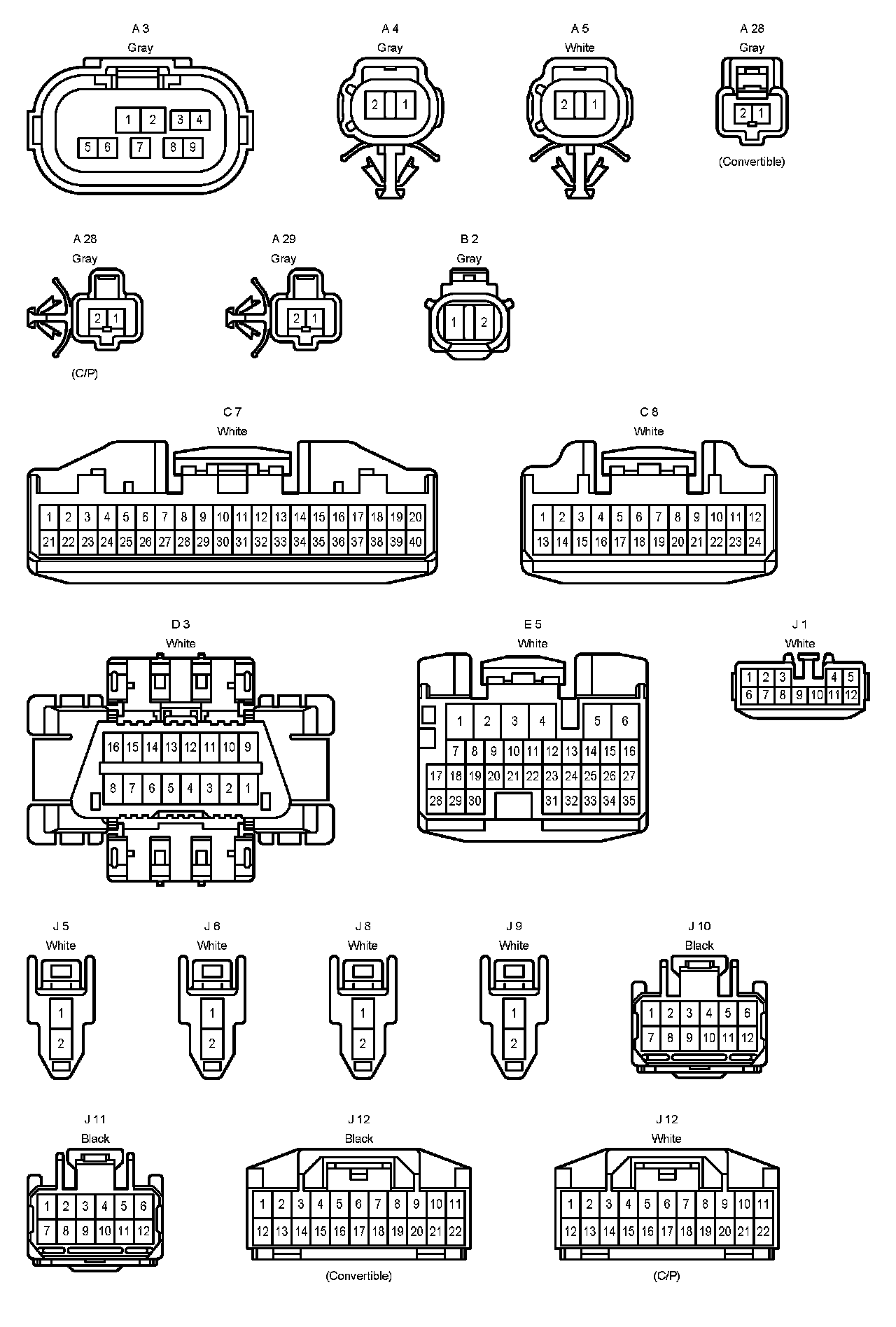

Connector Pin Outs Part 3:

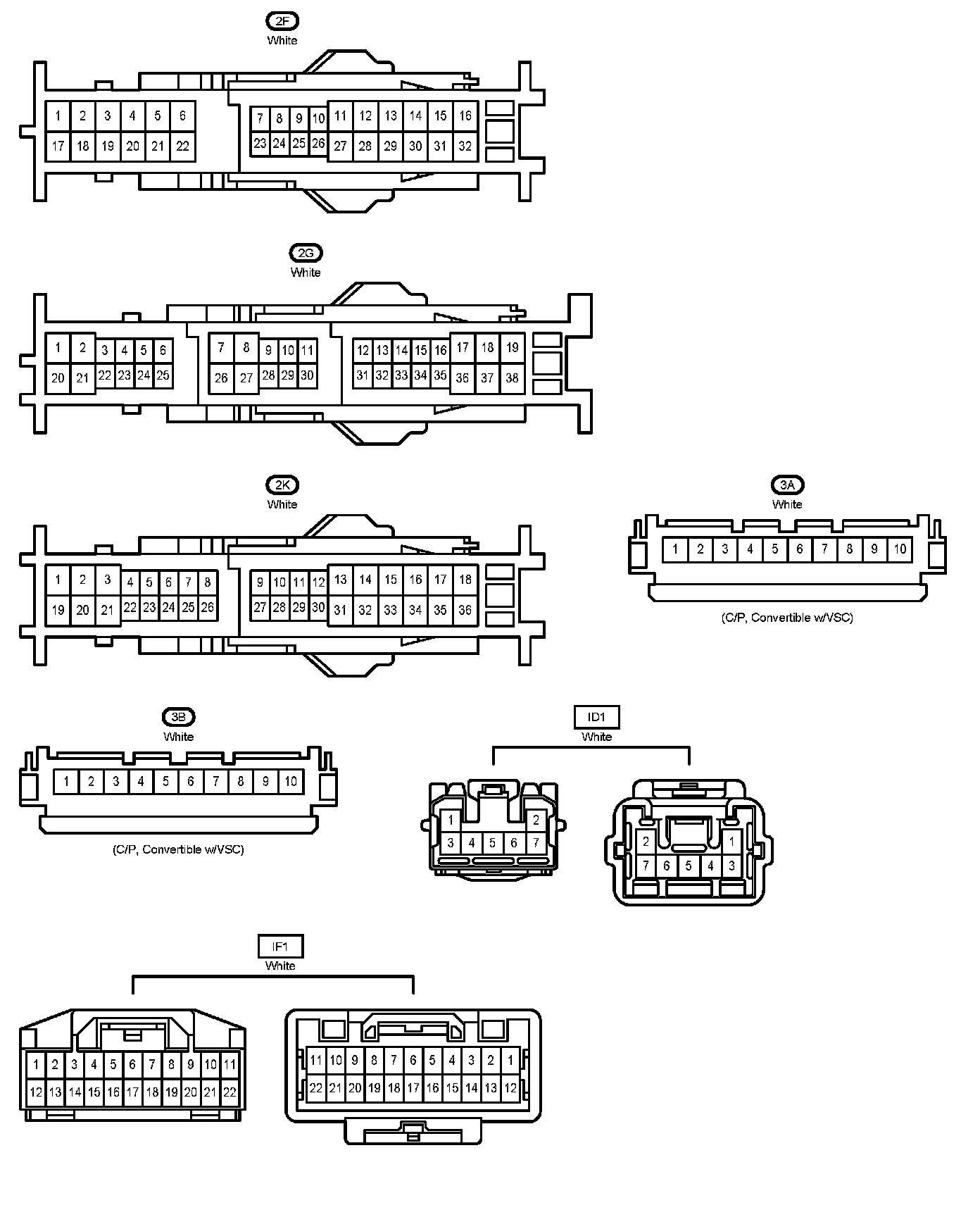

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
