B1497

AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1497/97: BUS IC Communication Malfunction

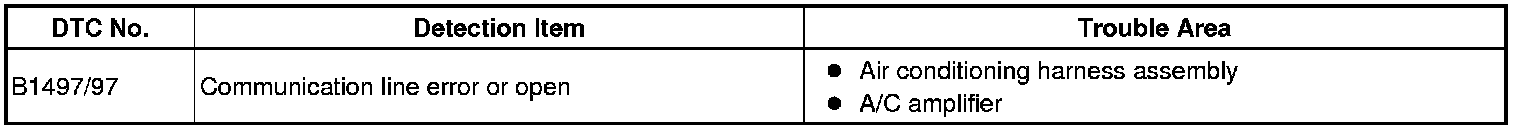

DTC B1497/97 - BUS IC Communication Malfunction

DESCRIPTION

The air conditioning harness assembly connects the air conditioning amplifier and each servomotor. The A/C amplifier supplies power and sends operation instructions to each servomotor through the air conditioning harness assembly. Each servomotor sends the damper position information to the A/C amplifier.

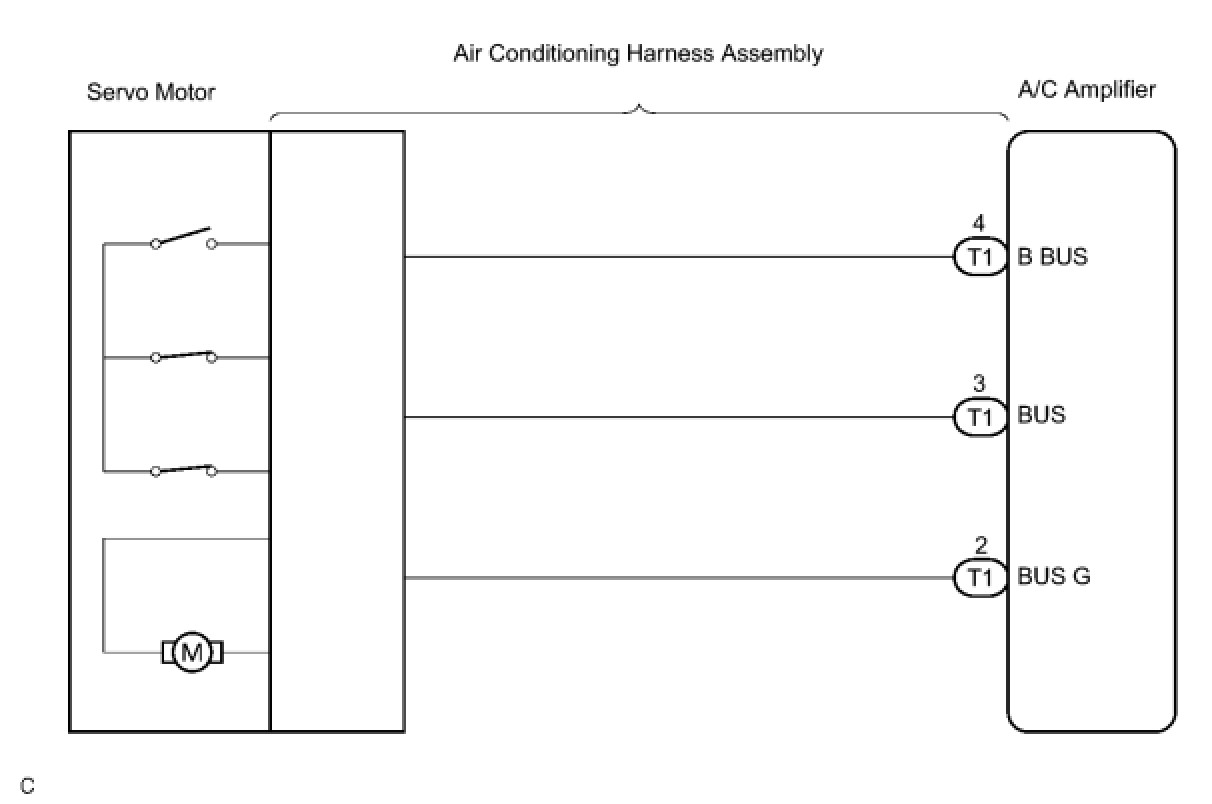

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

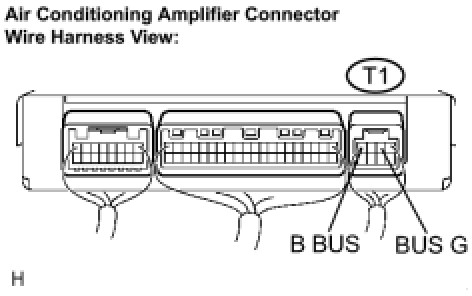

1. INSPECT AIR CONDITIONING AMPLIFIER




(a) Remove the A/C amplifier with connectors still connected.

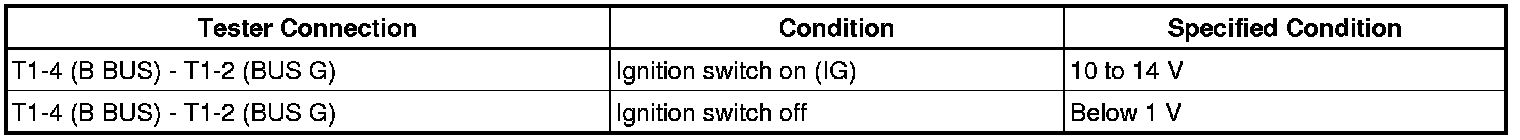

(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPLACE AIR CONDITIONING AMPLIFIER
OK -- Continue to next step.

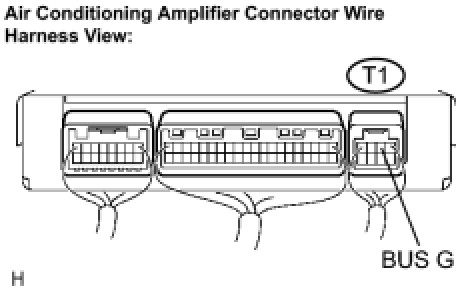

2. INSPECT AIR CONDITIONING AMPLIFIER




(a) Remove the A/C amplifier with connectors still connected.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPLACE AIR CONDITIONING AMPLIFIER
OK -- REPLACE AIR CONDITIONING HARNESS ASSEMBLY
