Door Lock - Smart Key System
DOOR LOCK: SMART KEY SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

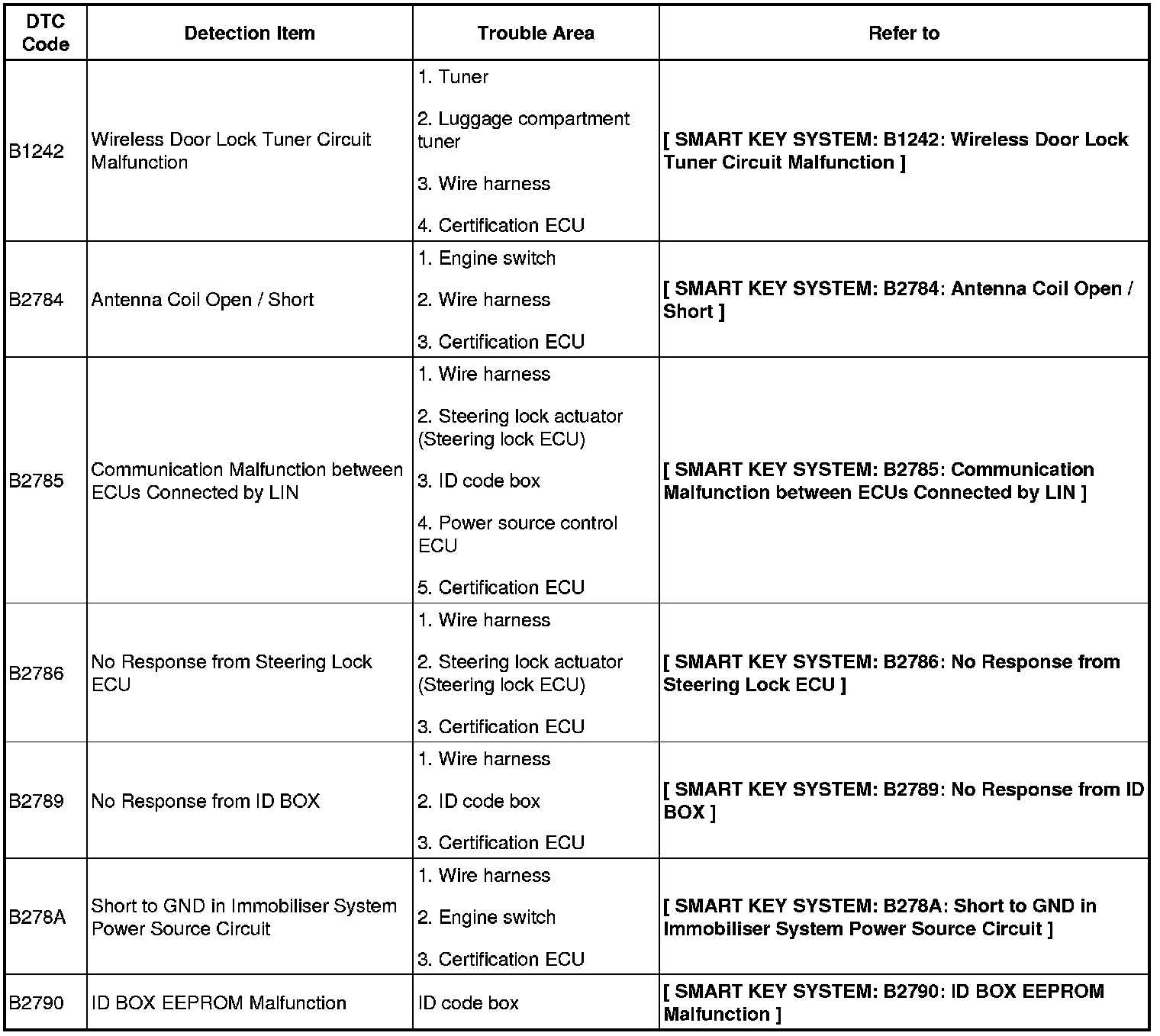

1. CERTIFICATION ECU DIAGNOSTIC TROUBLE CODE CHART
Certification ECU
B1242 - B2790:

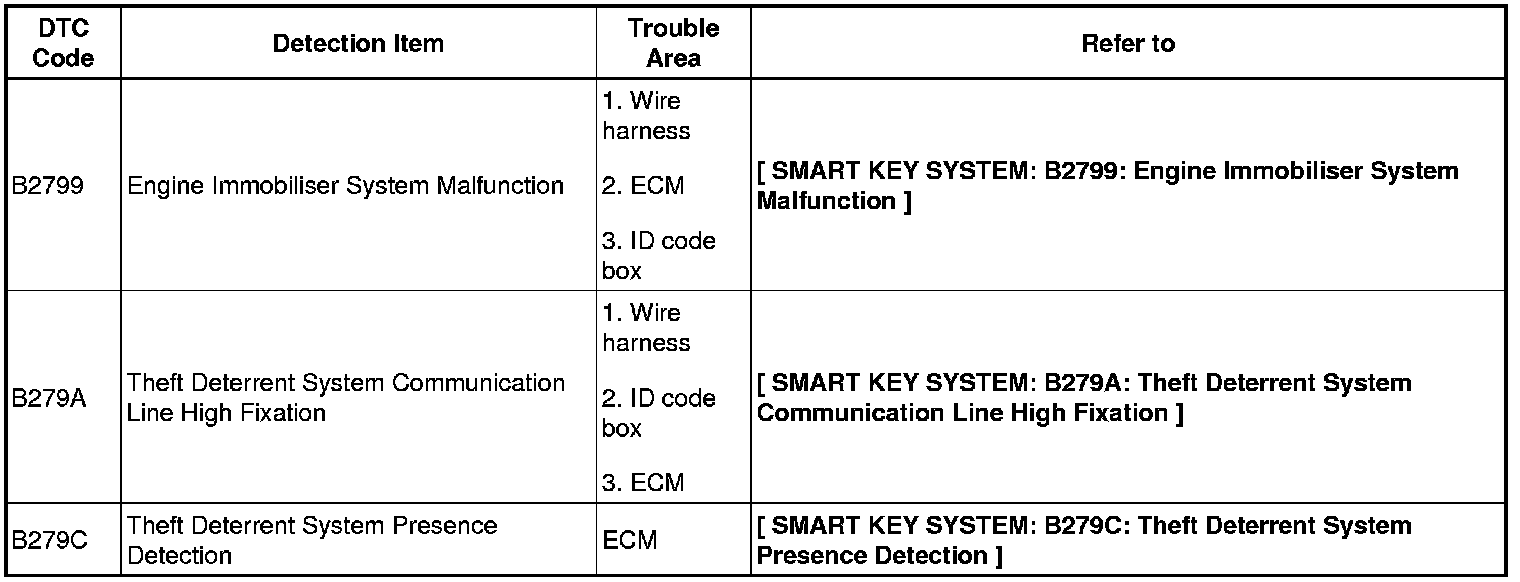

2. ECM DIAGNOSTIC TROUBLE CODE CHART
HINT: The DTCs for the engine immobiliser system are specified above. If the other codes are output, check the DTC chart for the SFI system.
ECM
