Dynamic Laser Cruise Control System

CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "Refer to" in the DTC chart.

DYNAMIC LASER CRUISE CONTROL SYSTEM

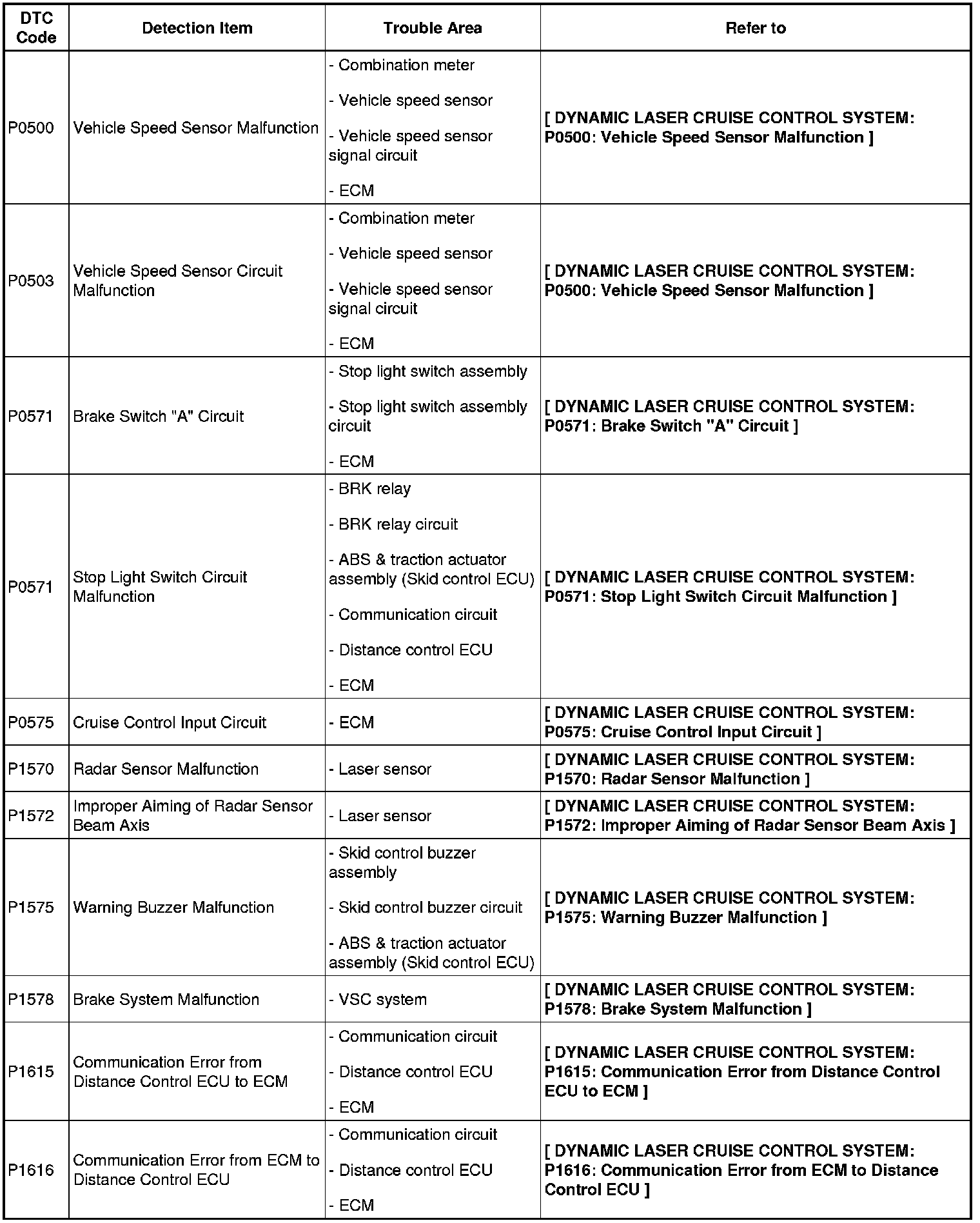

P0500 - P1616:

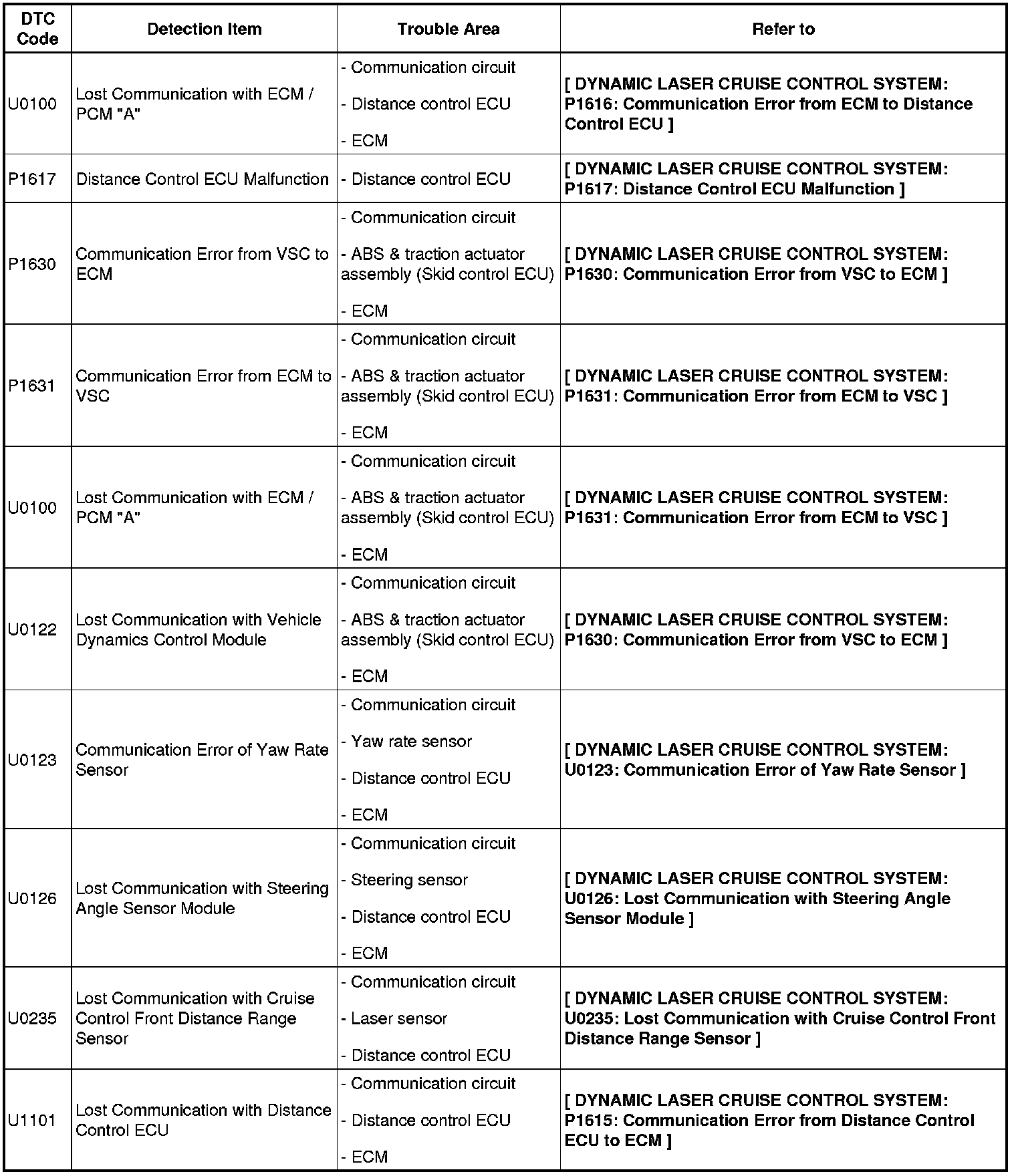

U0100 - U1101 / P1617 - P1631:

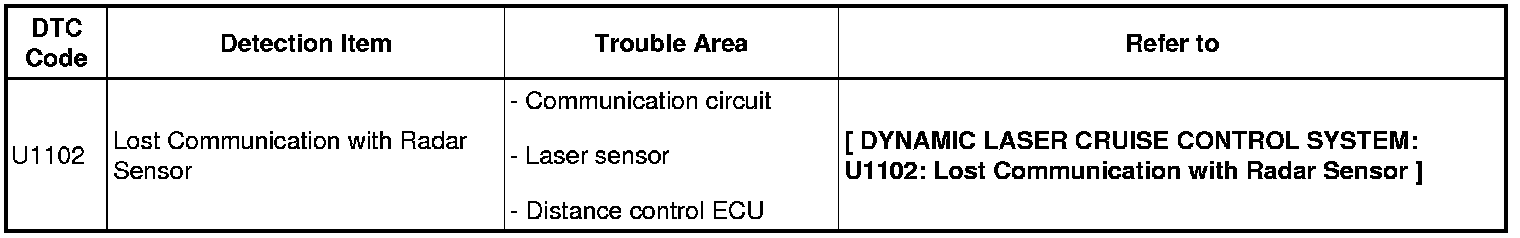

U1102:

HINT: When DTC P1578 is output, check for DTCs on the skid control ECU in the diagnosis mode. Only when any code is output, inspect the trouble area based on the DTC.
