Engine Immobiliser System
ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

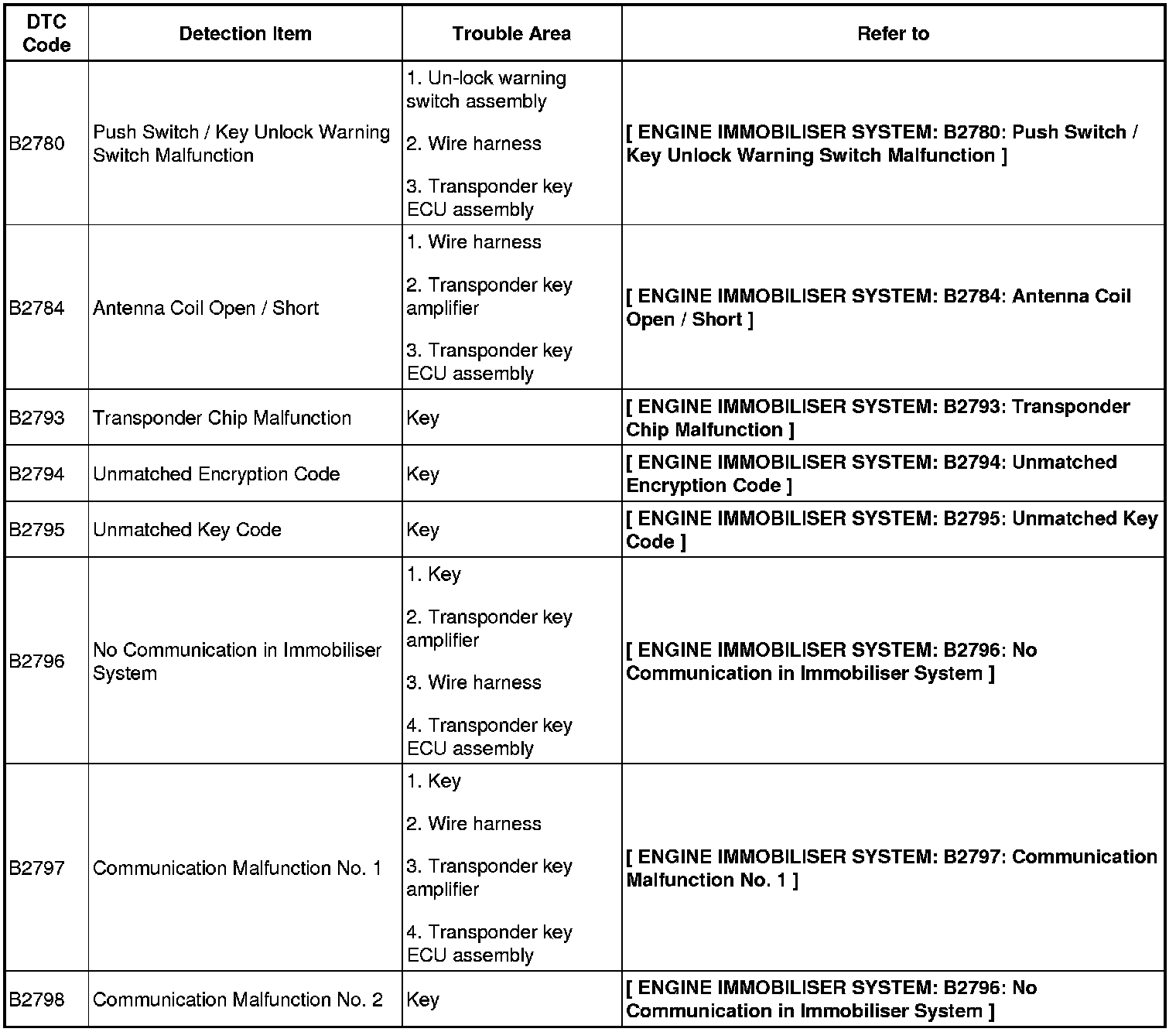

1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART
Transponder Key ECU Assembly
B2780 - B2798:

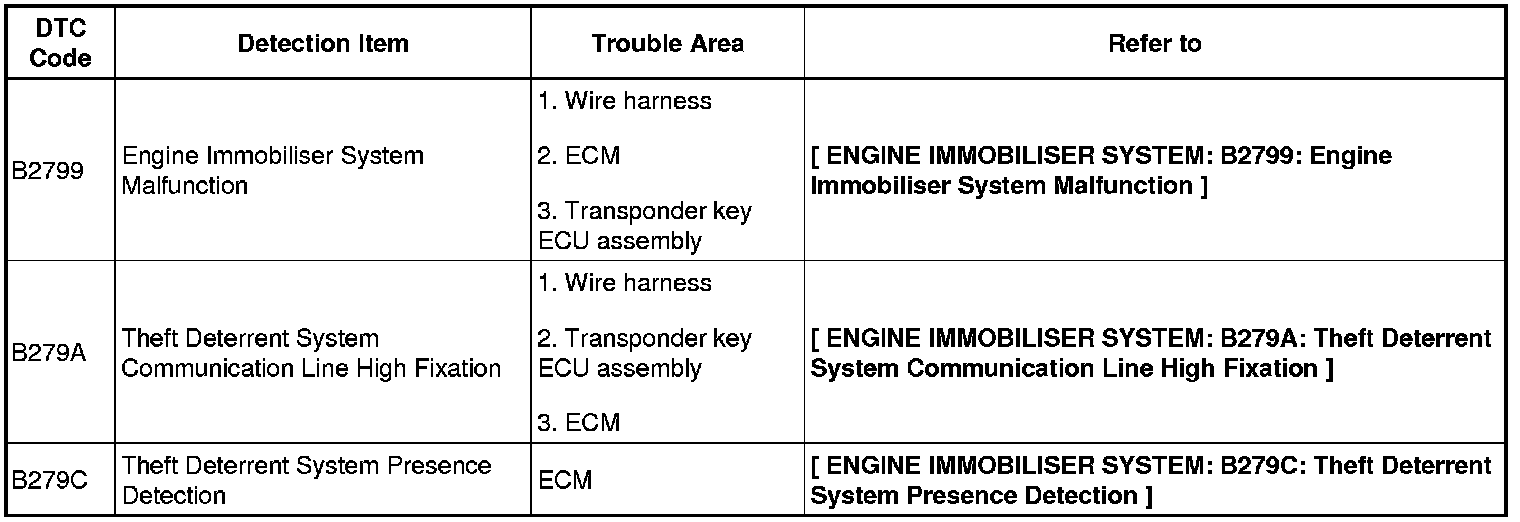

2. ECM DIAGNOSTIC TROUBLE CODE CHART
NOTE: The DTCs for the engine immobiliser system are specified above. If other codes are output, check the DTC chart for the SFI system.
ECM
