Occupant Classification System








SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

1. DTCS FOR OCCUPANT CLASSIFICATION SYSTEM
If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below.

Occupant Classification System

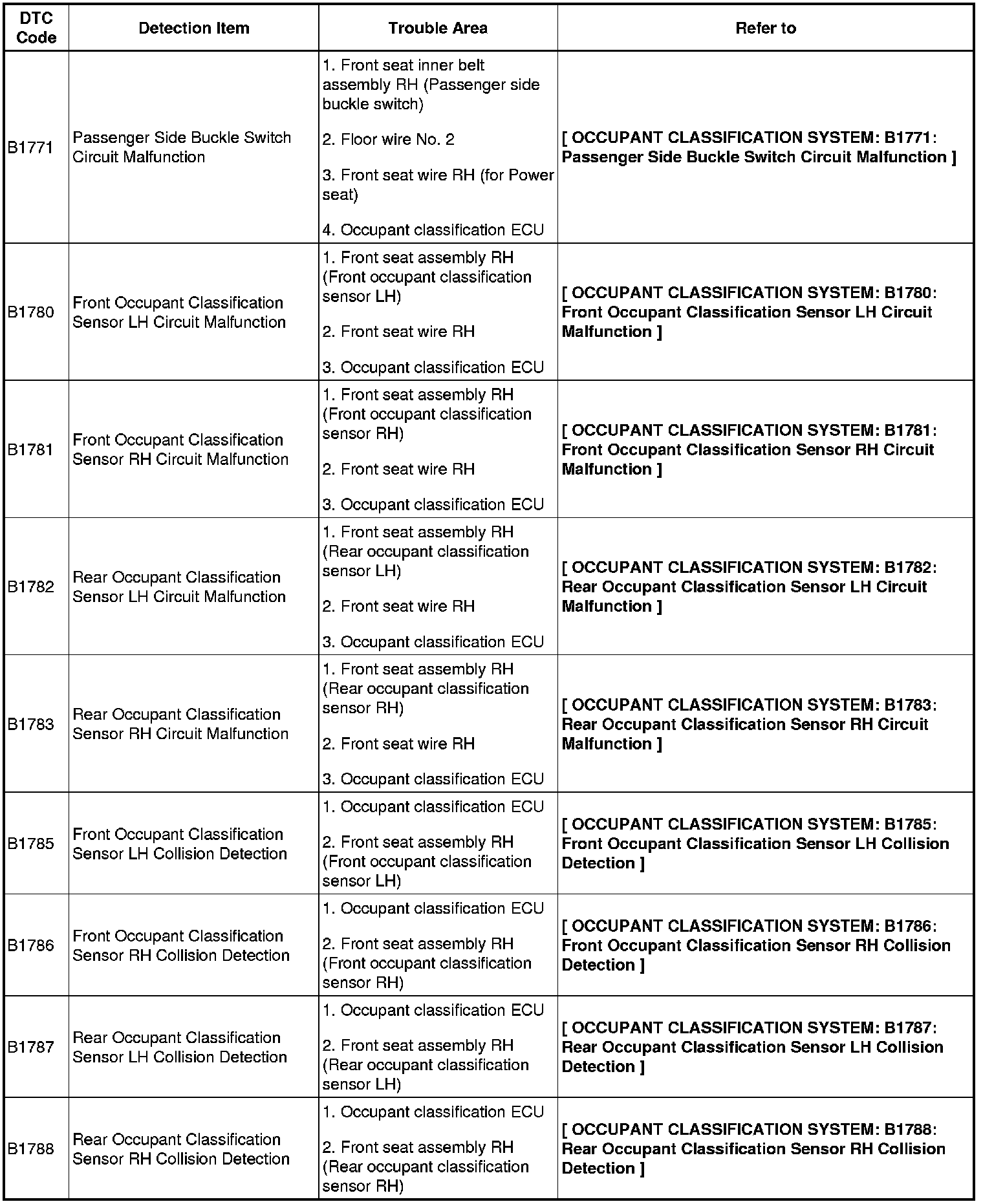

B1771 - B1788:

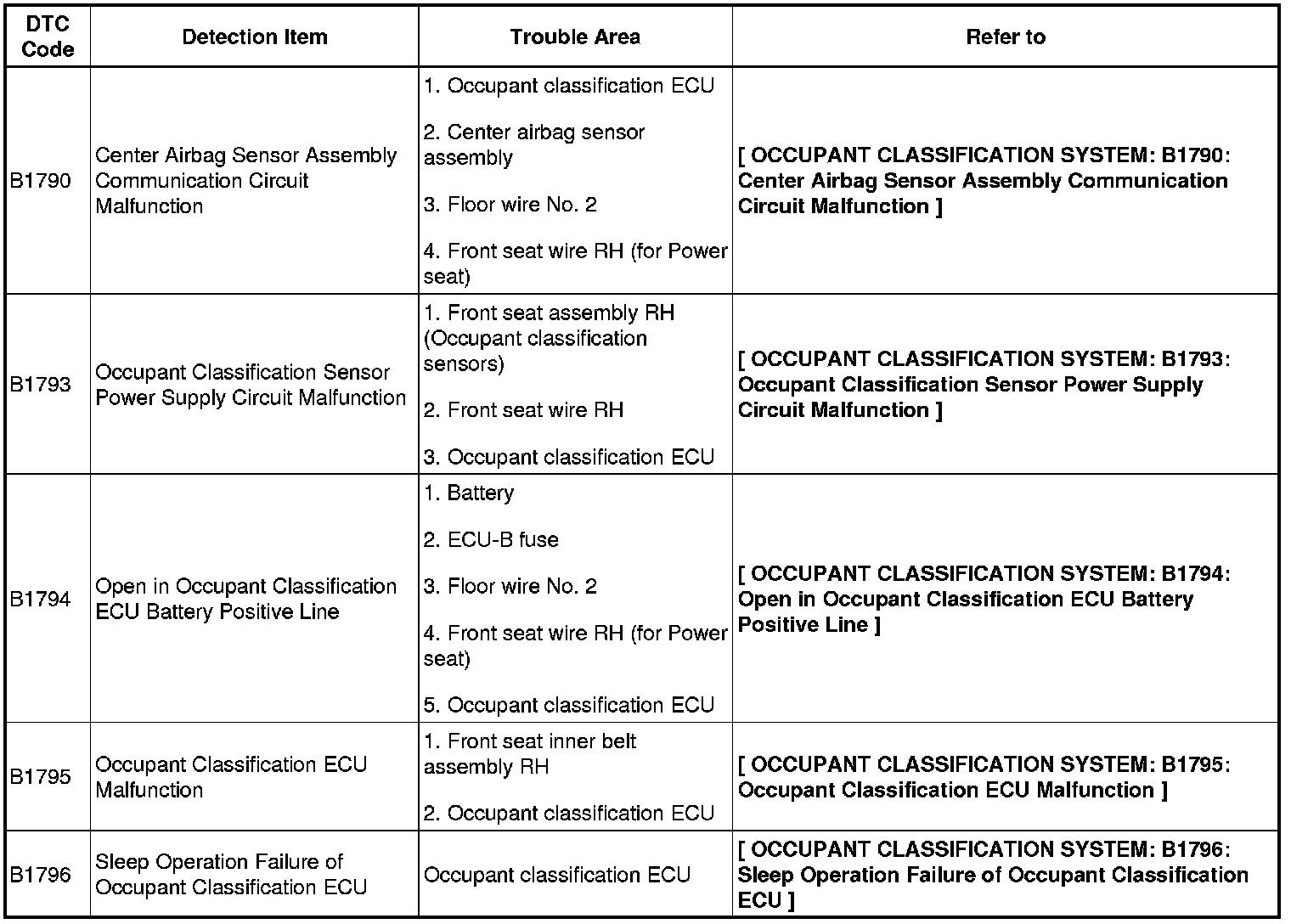

B1790 - B1796:
