Starting - Smart Key System

2GR-FE STARTING: SMART KEY SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

1. DTC CHECK

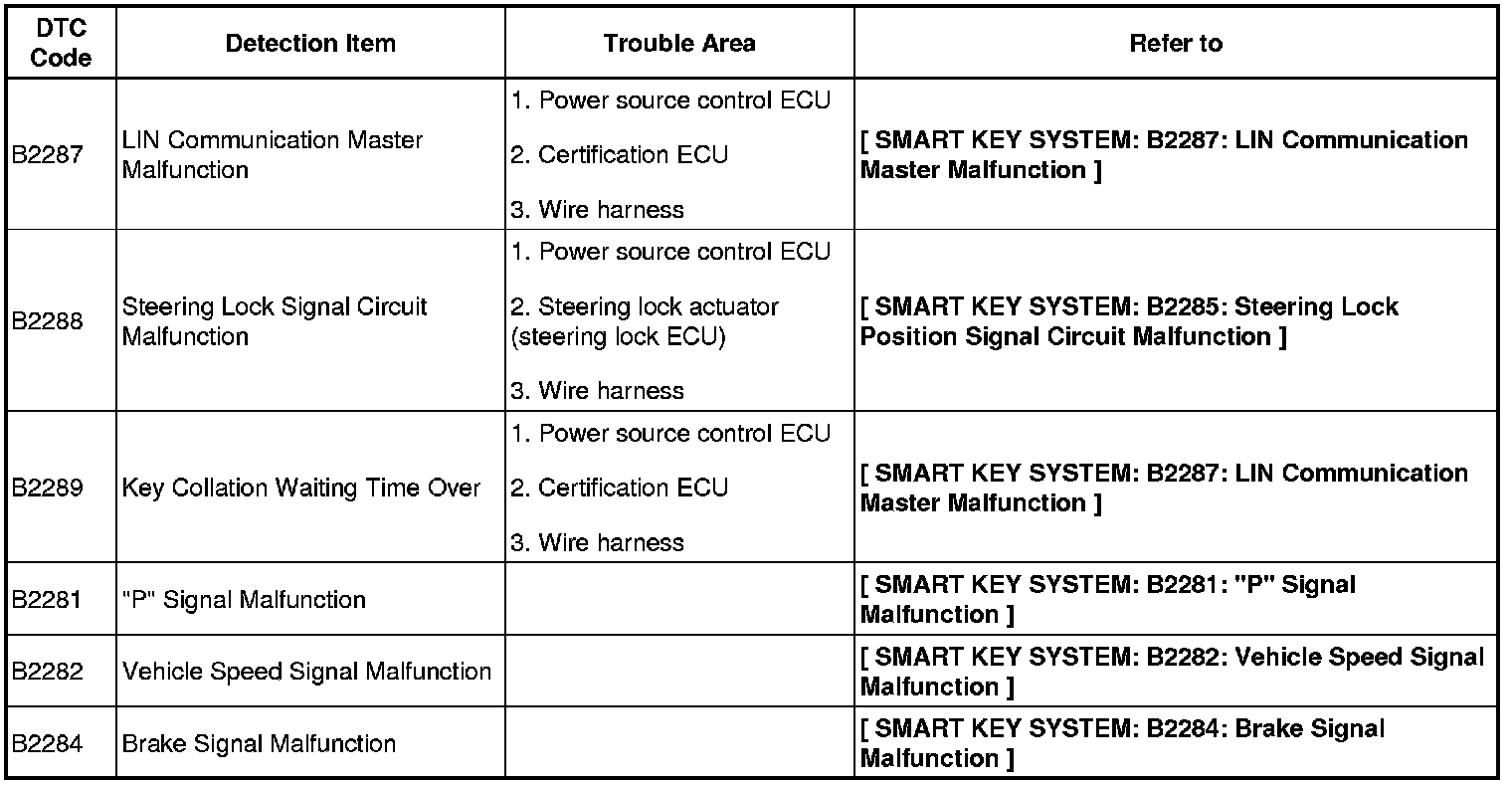

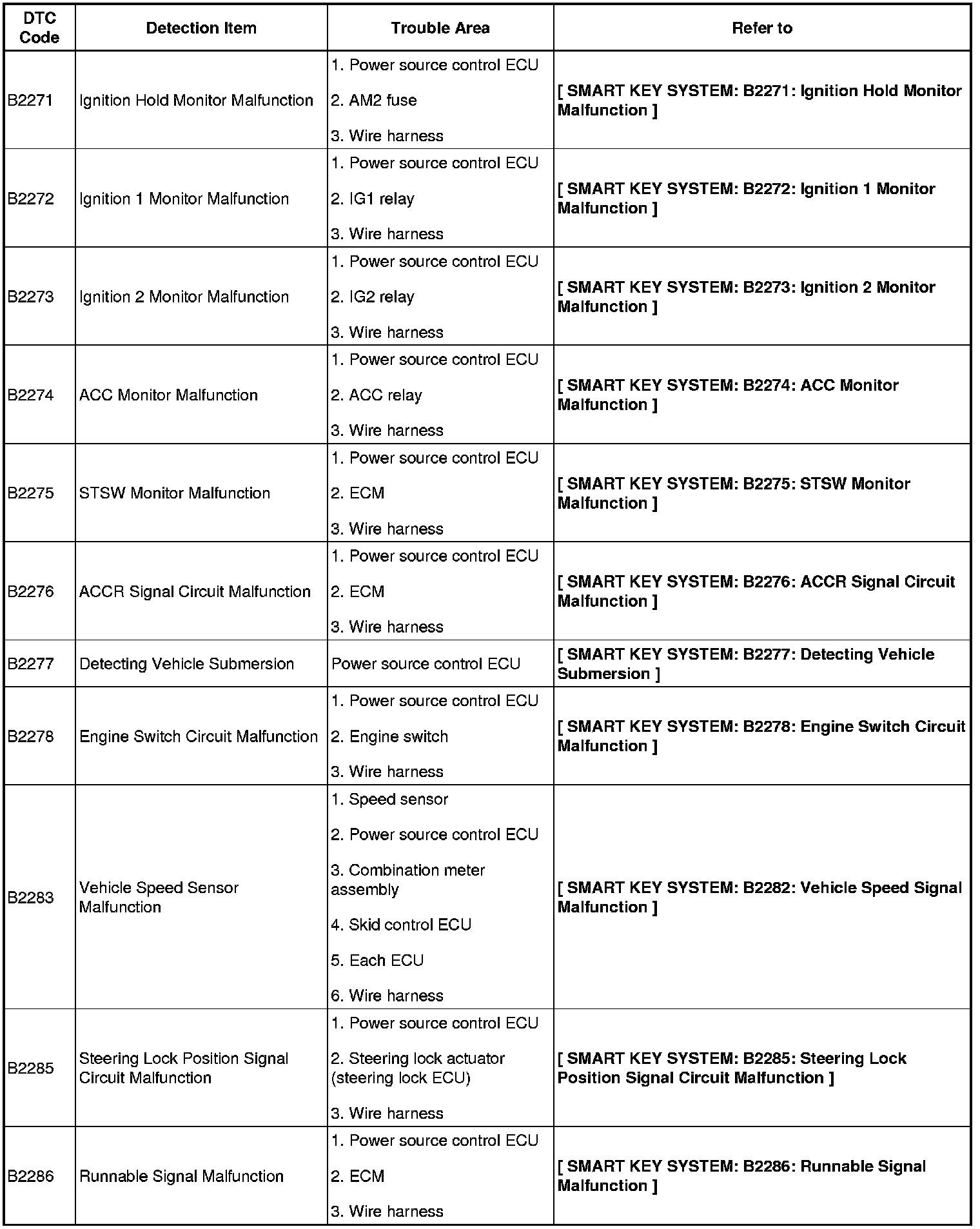

If a malfunction code is displayed during the DTC check, the suspected area listed for that code in the table below.

SMART KEY SYSTEM
