Tire Pressure Warning System

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the respective "Refer to" in the DTC chart.

TIRE PRESSURE WARNING SYSTEM:

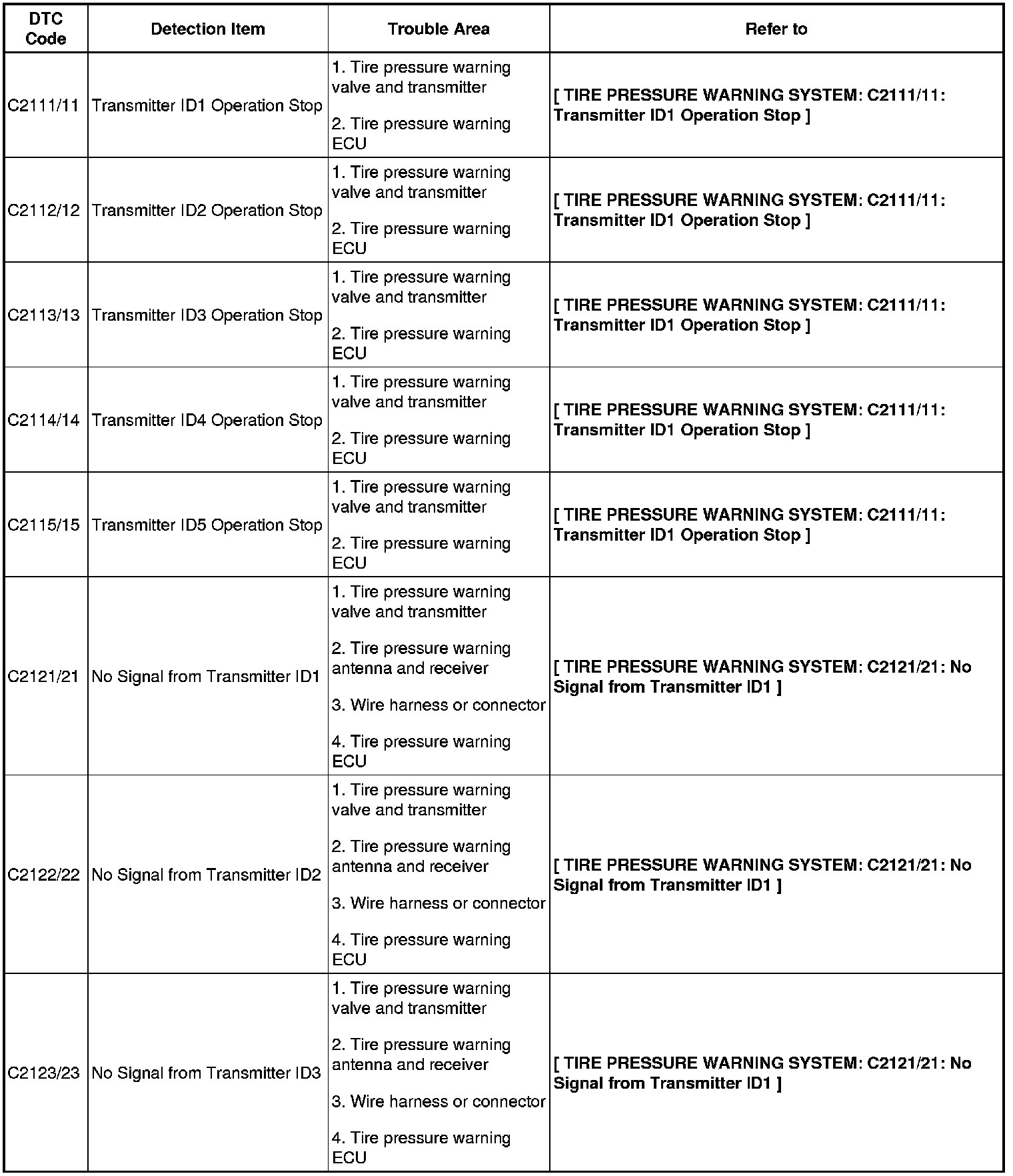

C2111/11 - C2123/23:

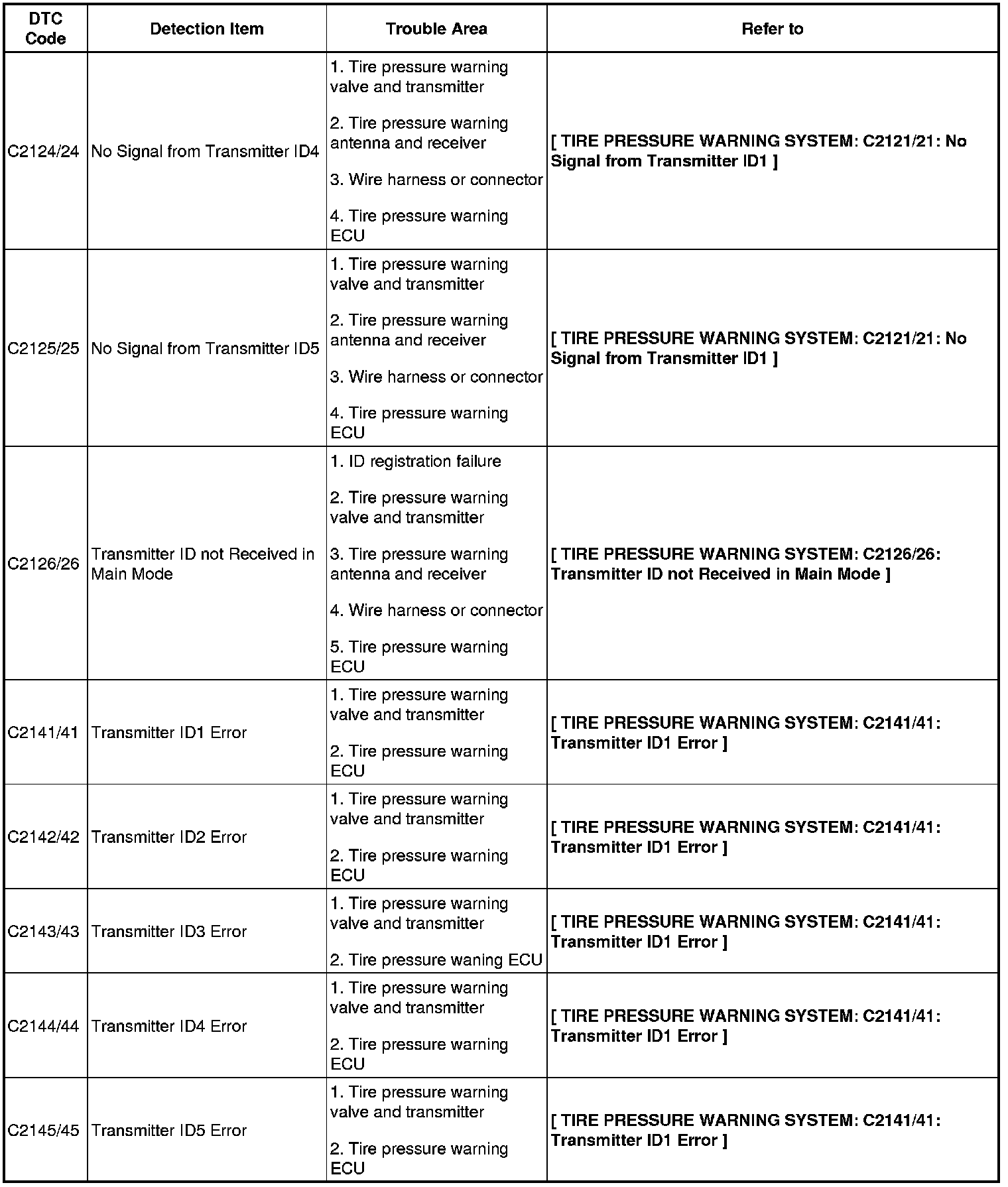

C2124/24 - C2145/45:

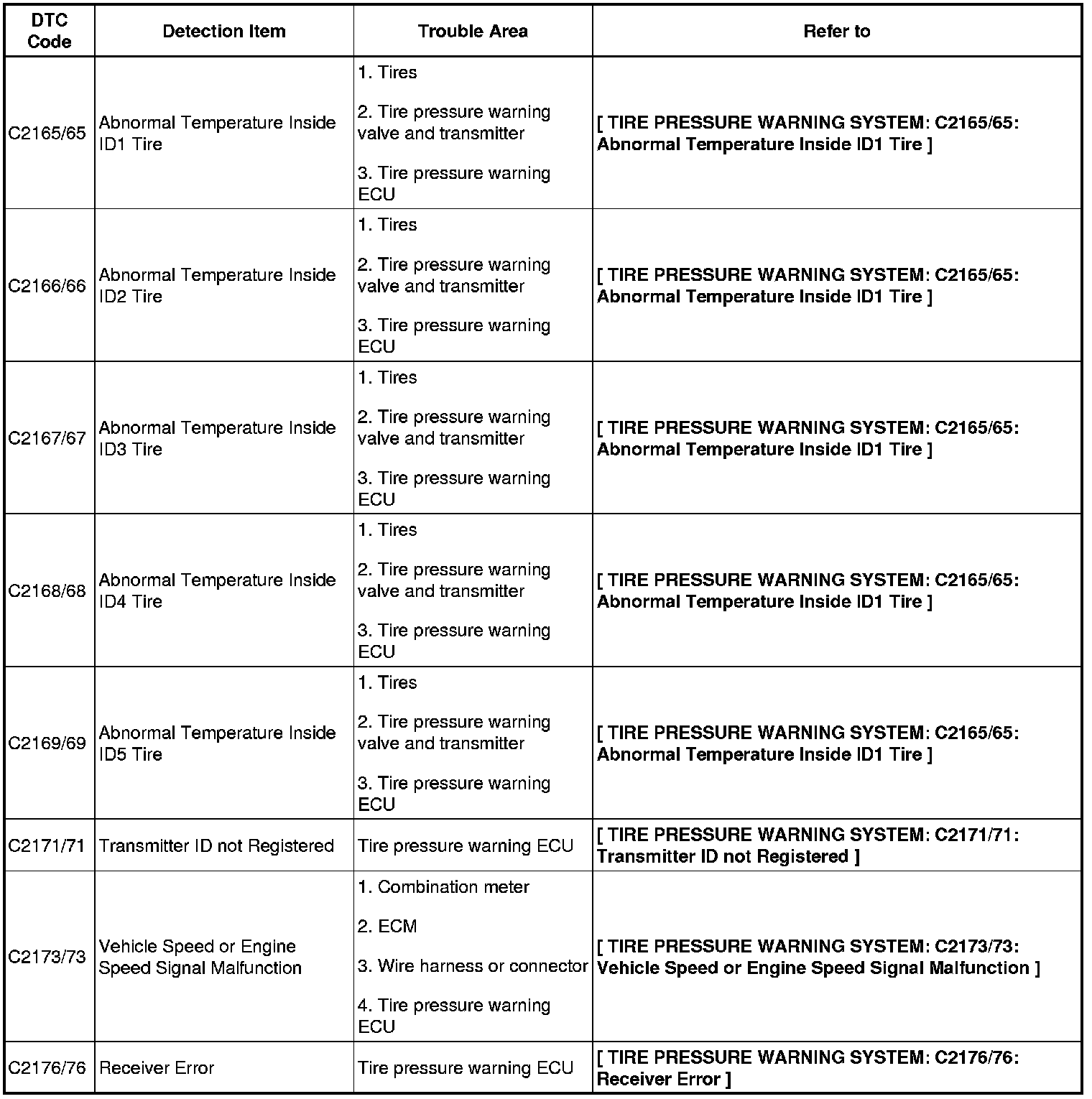

C2165/65 - 2176/76:

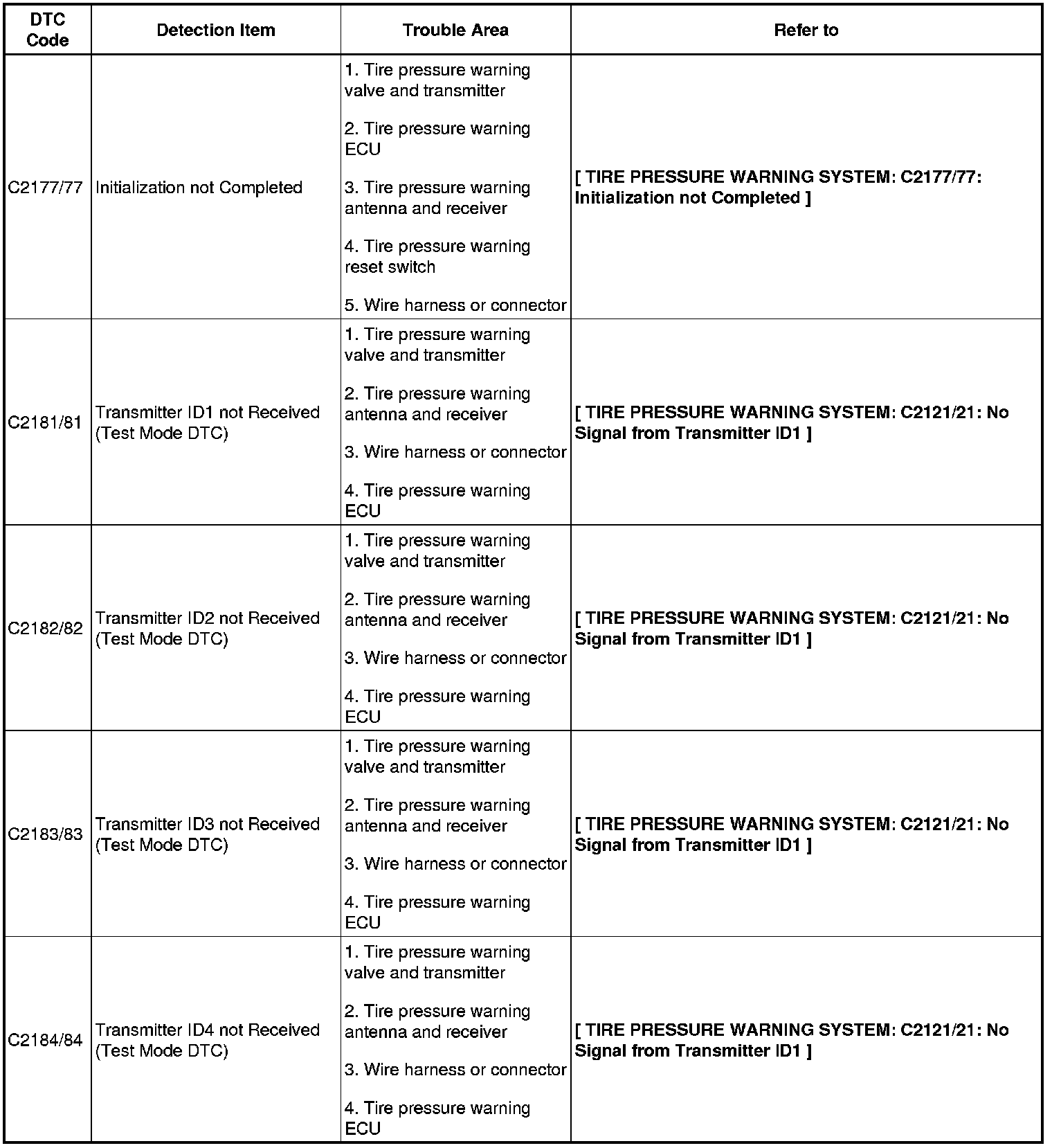

C2177/77 - C2184/84:

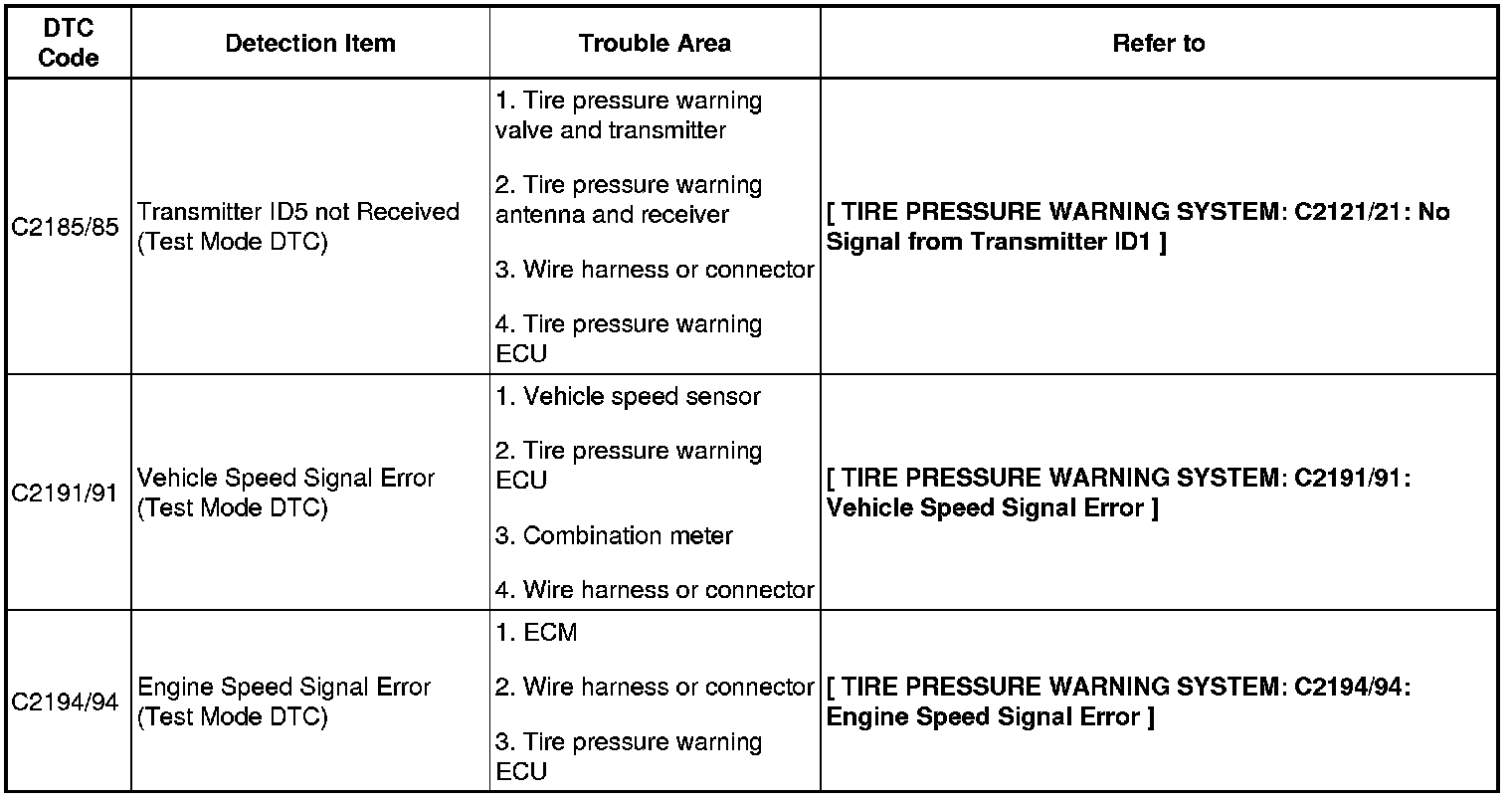

C2185/85 - C2194/94:
