ABS Control System Malfunction - Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1223/43: ABS Control System Malfunction

DTC C1223/43 - ABS Control System Malfunction

DESCRIPTION

This DTC is output when the VSC system detects a malfunction in the ABS system.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC (FOR ABS SYSTEM)
(a) Clear the DTC.
(b) Turn the ignition switch on (IG).
(c) Check that the same DTC is recorded.

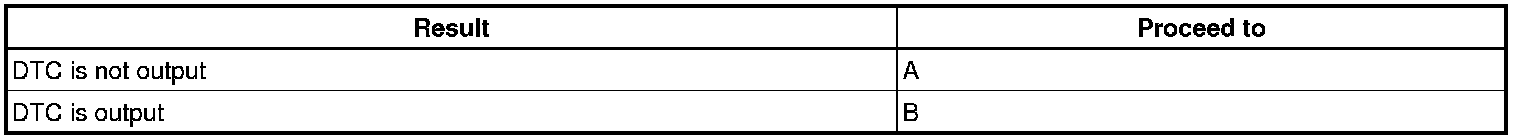

Result:





HINT: These DTCs may be stored due to a malfunction in the connector terminal connection, etc.

B -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC
A -- END
