Audio and Visual System

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 63-43: CD-ROM Abnormal

DTC 63-43 - CD-ROM Abnormal

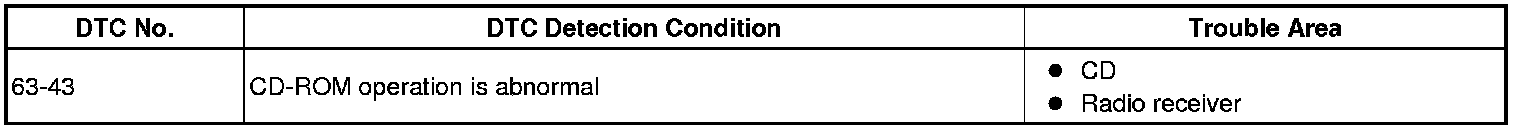

DESCRIPTION





INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK IF A PROPER CD IS INSERTED
(a) Make sure that the CD is an audio CD, and that it is not deformed, flawed, stained, deteriorated, or otherwise defective.
OK:
Normal CD

HINT:
- Translucent or uniquely-shaped CDs cannot be played.
- CDs with adhesive paper labels should not be played.
- Details are available on playable CDs.

NG -- CD IS FAULTY
OK -- Continue to next step.

2. REPLACE CD
(a) Replace the CD with another and recheck.
(1) Replace the CD with another normal one.
(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(3) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.

NG -- REPLACE RADIO RECEIVER
OK -- END
