Audio and Visual System

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 63-47: High Temperature

DTC 63-47 - High Temperature

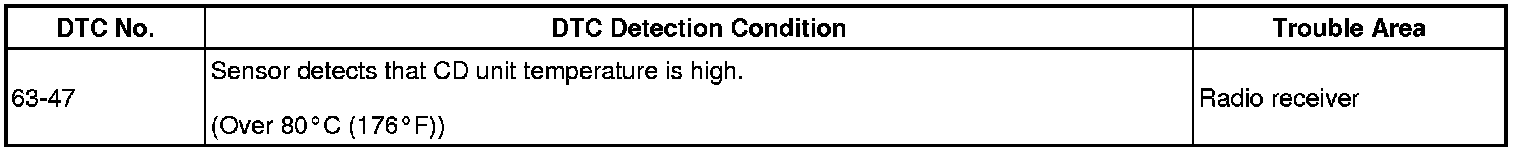

DESCRIPTION





INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER
(a) Park the vehicle in an cool place.
(b) Check that the temperature of the radio receiver becomes sufficiently low, then start the engine.
(c) Clear the DTC.
(d) Check if DTC 63-47 is output.
OK:
DTC 63-47 is not output.

NG -- REPLACE RADIO RECEIVER
OK -- END
