P0606

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0606: ECM / PCM Processor

DTC P0606 - ECM / PCM Processor

MONITOR DESCRIPTION

The ECM continuously monitors its main and sub CPUs. This self-check ensures that the ECM is functioning properly. If outputs from the CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set the DTC immediately.

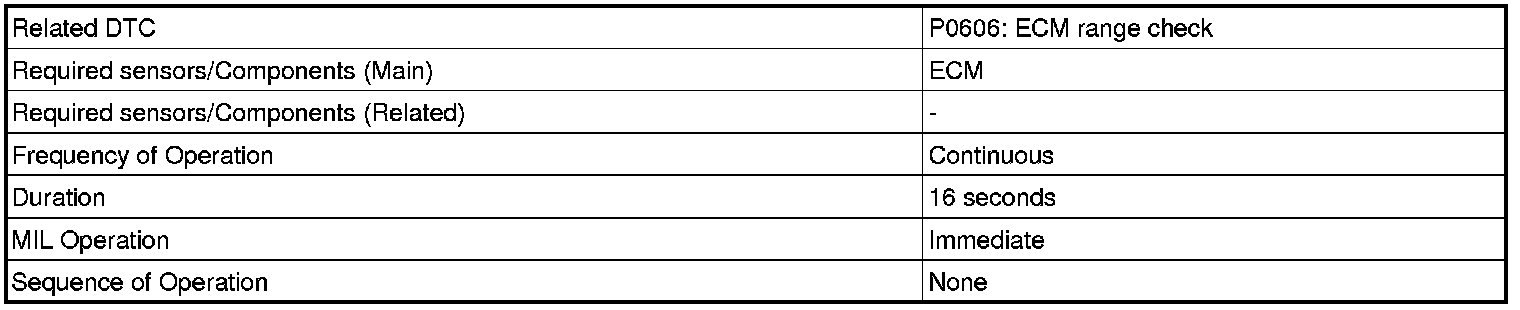

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (DTC P0606)
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester ON.
(d) Clear DTCs DTC Check / Clear.
(e) Turn the ignition switch off and turn the tester off.
(f) Disconnect the tester.
(g) Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.
(h) Connect the cable to the negative (-) battery terminal.
(i) Connect the tester to the DLC3.
(j) Turn the ignition switch to ON.
(k) Turn the tester ON.
(l) Select the following menu items: Powertrain / Engine / Trouble Codes.
(m) Read DTCs.

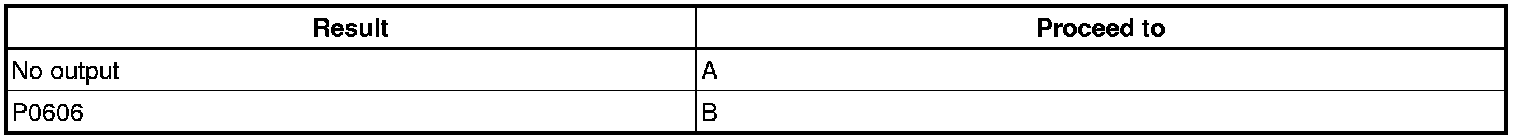

Result:





B -- REPLACE ECM
A -- CHECK FOR INTERMITTENT PROBLEMS
