P060D

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P060D: Internal Control Module Accelerator Pedal Position Performance

DTC P060D - Internal Control Module Accelerator Pedal Position Performance

MONITOR DESCRIPTION

The ECM monitors the input signals of the Accelerator Pedal Position (APP) sensor No. 1. When the input signals and control signals are deviated, the DTC is output.

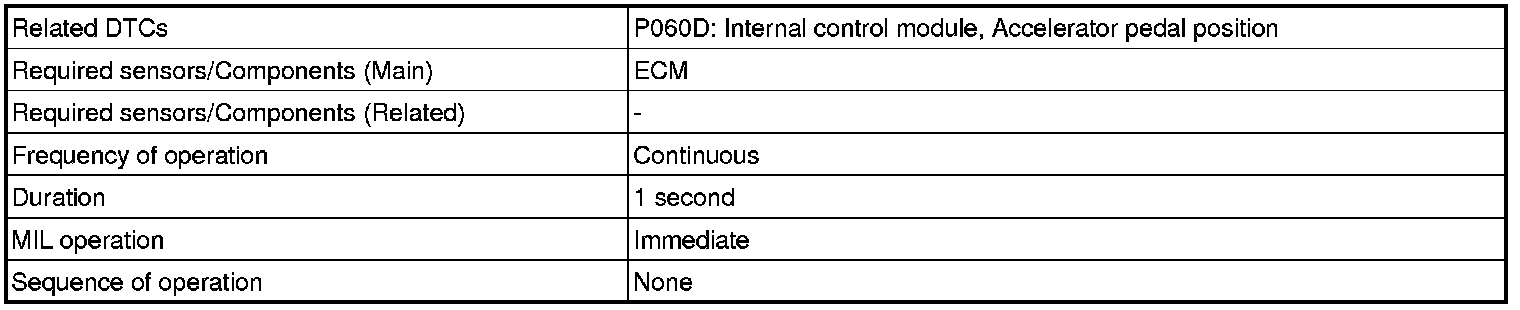

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (DTC P060D)
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester on.
(d) Clear DTC Engine Control System - SFI System.
(e) Turn the ignition switch off and turn the tester off.
(f) Disconnect the tester.
(g) Disconnect the cable from the battery negative (-) terminal and wait for 1 minute.
(h) Connect the cable to the battery negative (-) terminal.
(i) Connect the tester to the DLC3.
(j) Turn the ignition switch to ON.
(k) Turn the tester on.
(l) Select the following menu items: Powertrain / Engine / Trouble Codes.
(m) Read DTCs.

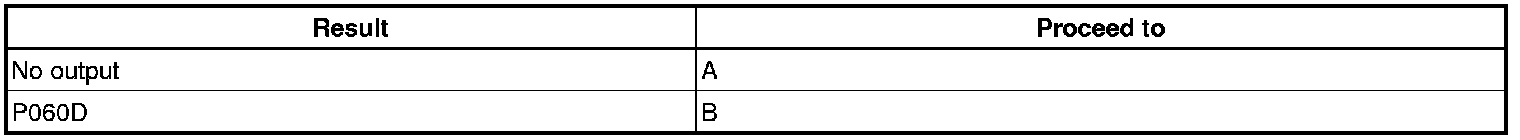

Result:





B -- REPLACE ECM
A -- CHECK FOR INTERMITTENT PROBLEMS
