Communication Error of Yaw Rate Sensor - Dynamic Laser Cruise Control System

CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: U0123: Communication Error of Yaw Rate Sensor

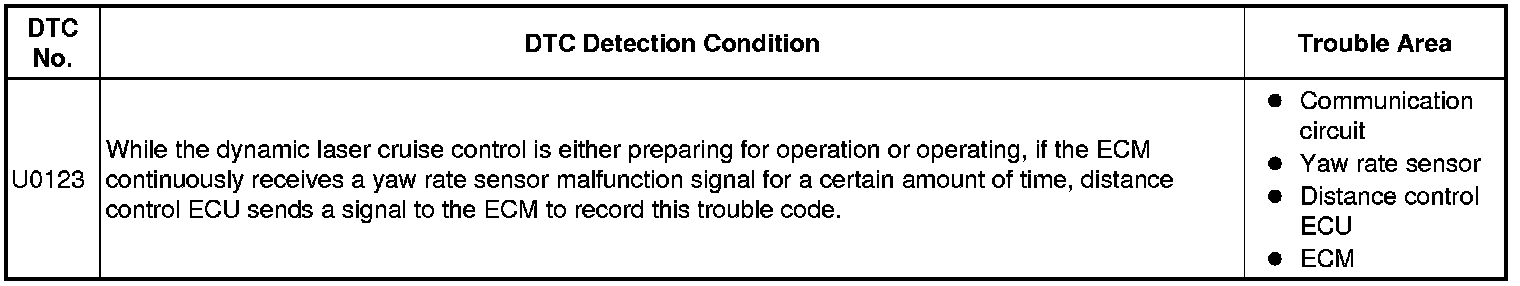

DTC U0123 - Communication Error of Yaw Rate Sensor

DESCRIPTION

This circuit detects the yaw rate of the vehicle and transmits its signal to the skid control ECU and distance control ECU.





INSPECTION PROCEDURE

HINT: This circuit uses CAN for communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system is / are output.

PROCEDURE

1. GO TO CAN COMMUNICATION SYSTEM
NEXT -- END
