Lost Communication With Steering Angle Sensor Module - Dynamic Laser Cruise Control System

CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: U0126: Lost Communication with Steering Angle Sensor Module

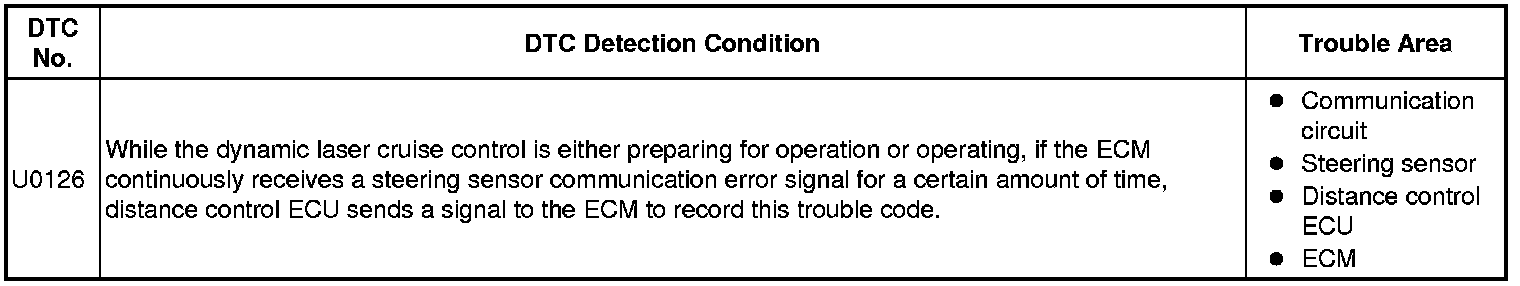

DTC U0126 - Lost Communication with Steering Angle Sensor Module

DESCRIPTION

This circuit detects the angle and direction of steering and automatically transmits its signal to the skid control ECU and distance control ECU.





INSPECTION PROCEDURE

HINT: This circuit uses CAN for communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system is / are output.

PROCEDURE

1. GO TO CAN COMMUNICATION SYSTEM
NEXT -- END
