Removal

AUDIO / VISUAL: AMPLIFIER ANTENNA: REMOVAL

REMOVAL

1. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH Removal

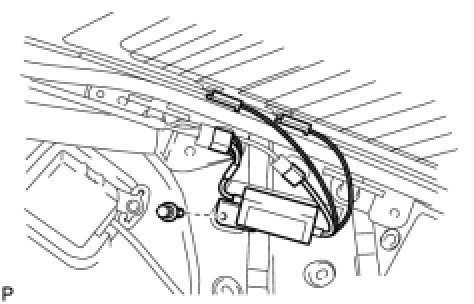

2. REMOVE AMPLIFIER ANTENNA ASSEMBLY





(a) Disconnect all connectors.
(b) Remove the bolt and the amplifier antenna assembly.
