Removal

AUDIO / VISUAL: RADIO ANTENNA CORD: REMOVAL

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Removal
3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Front Passenger Airbag)

HINT: Refer to the procedures up to the removal of the instrument panel safety pad sub-assembly (w/ front passenger airbag) Removal.

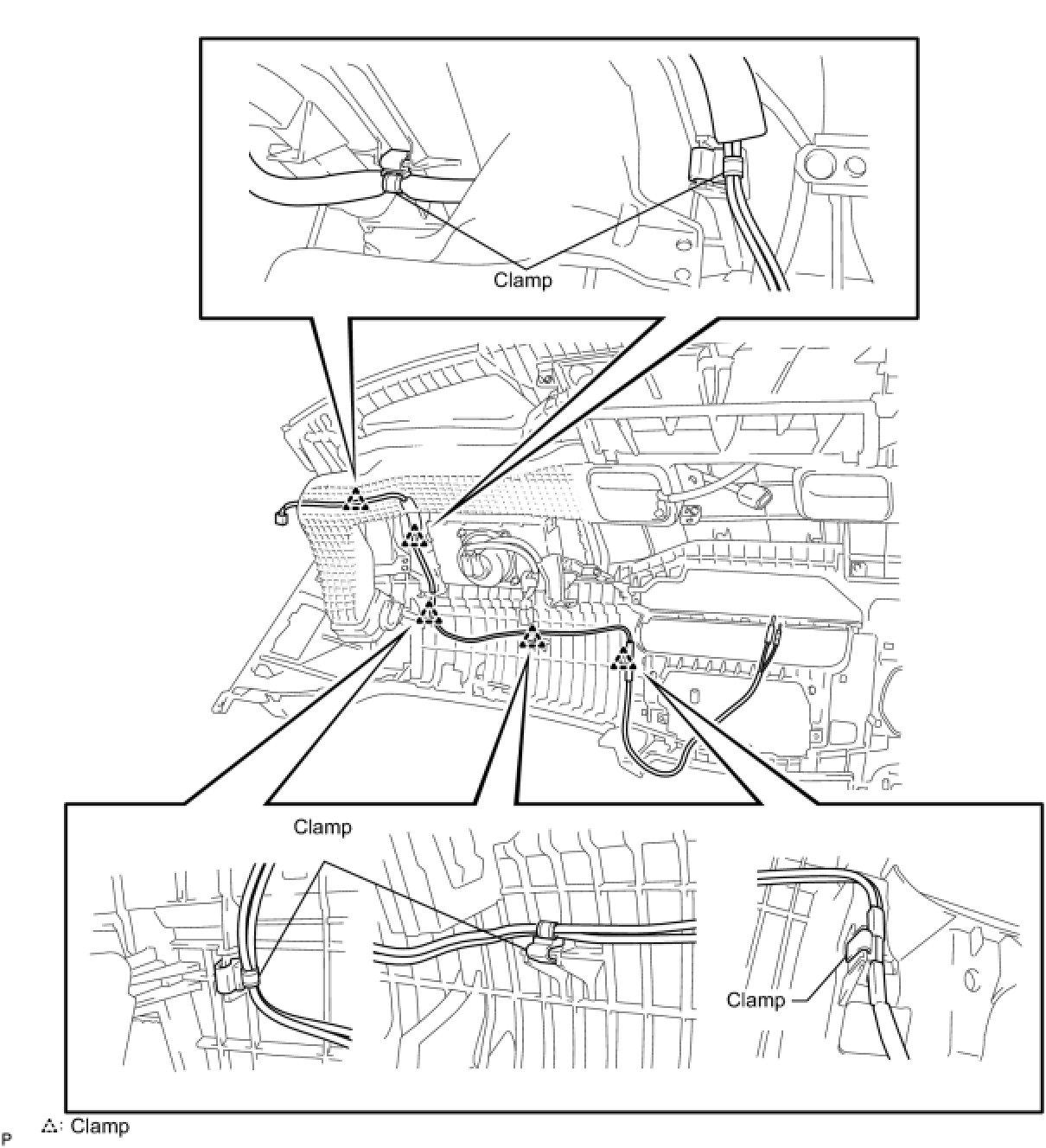

4. REMOVE ANTENNA CORD SUB-ASSEMBLY
(a) Remove the 5 clamps and antenna cord sub-assembly.





5. REMOVE ROOF HEADLINING ASSEMBLY

HINT: Refer to the procedures up to the removal of the roof headlining assembly Removal.

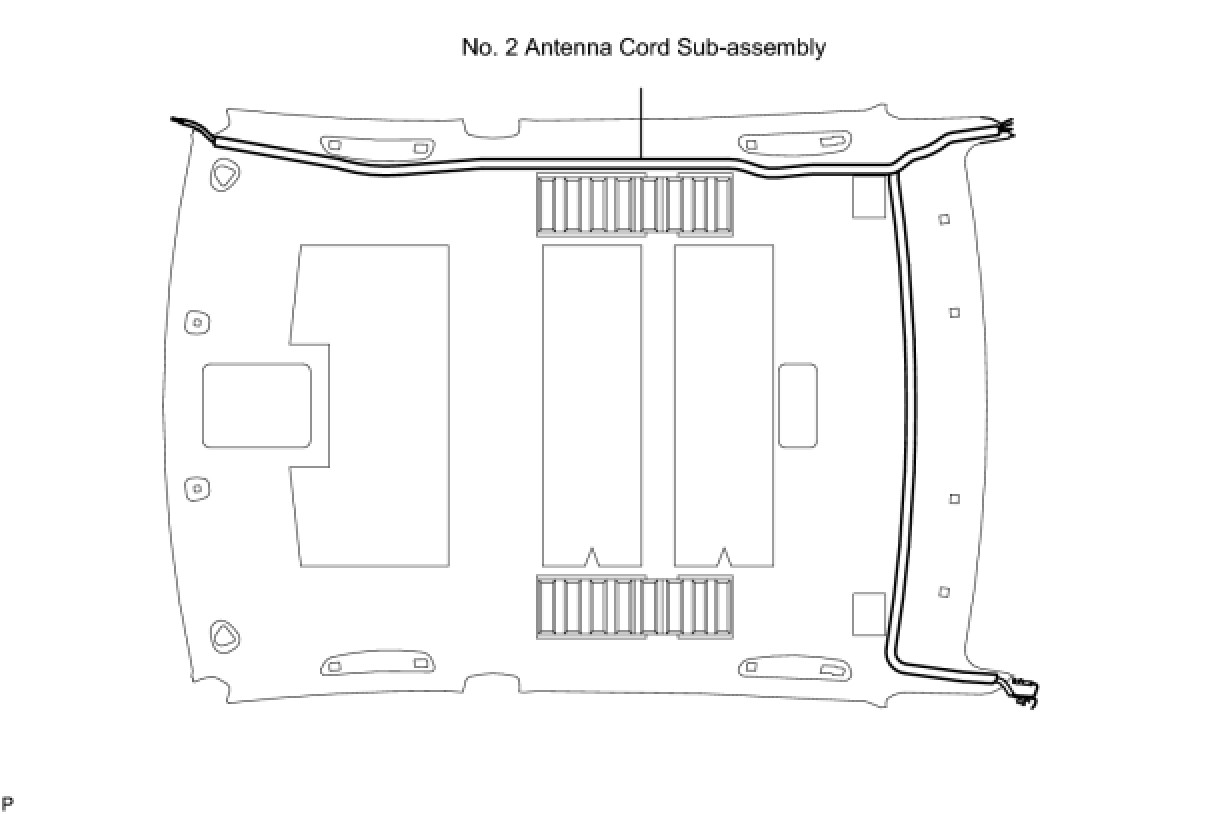

6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
(a) Remove No. 2 antenna cord sub-assembly.
