Procedures

AUDIO / VISUAL: WINDOW GLASS ANTENNA WIRE: REPAIR

REPAIR

1. REPAIR WINDOW GLASS ANTENNA WIRE





(a) Clean the broken wire tips with a grease, wax and silicone remover.

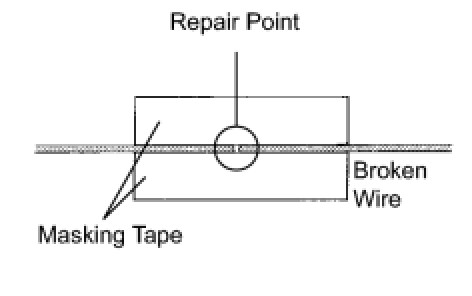

(b) Place masking tape along both sides of the wire to be temporarily hold it in place.
(c) Thoroughly mix the repair agent (Dupont paste No. 4817).

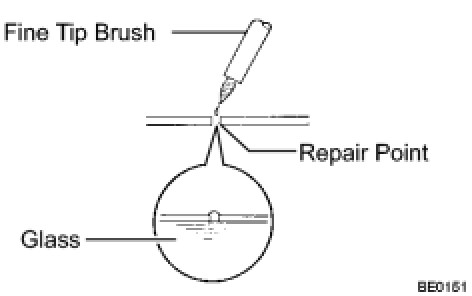

(d) Using a fine tip brush, apply a small amount of the mixed repair agent to the wire.
(e) After a few minutes, remove the masking tape.
(f) Do not repair the defogger wire for at least 24 hours after the window glass (antenna wire repair).
