Installation

AUDIO / VISUAL: RADIO ANTENNA (for Satellite Radio): INSTALLATION

INSTALLATION

1. INSTALL SATELLITE RADIO ANTENNA ASSEMBLY

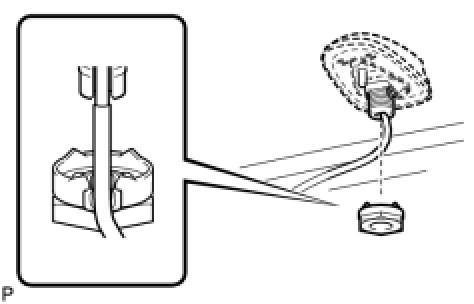

(a) Set the satellite radio antenna assembly into the hole on the roof and place the antenna cord in the cutout of the satellite radio antenna.

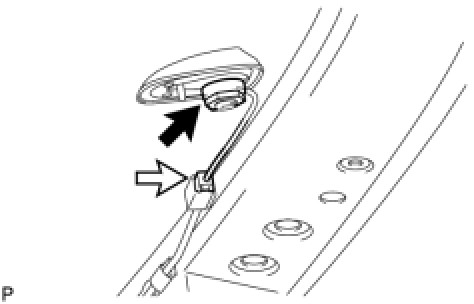

(b) Install the satellite radio antenna assembly with the antenna nut.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
(c) Connect the connector.
2. INSTALL ROOF HEADLINING ASSEMBLY

HINT: Refer to the procedure from Install Roof Headlining Assembly Installation.
