Removal

AUDIO / VISUAL: RADIO ANTENNA (for Satellite Radio): REMOVAL

REMOVAL

1. REMOVE ROOF HEADLINING ASSEMBLY

HINT: Refer to the procedure up to Remove Roof Headlining Assembly Removal.

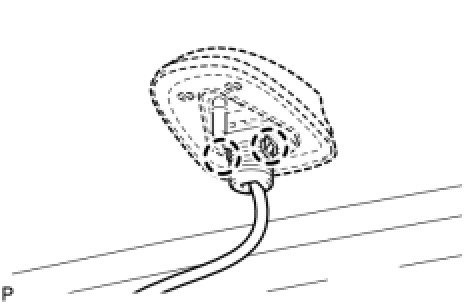

2. REMOVE SATELLITE RADIO ANTENNA ASSEMBLY





(a) Disconnect the connector.
(b) Remove the antenna nut.





(c) Disengage the 2 claws and remove the satellite radio antenna assembly.
