Security Indicator Light Circuit

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: Security Indicator Light Circuit

Security Indicator Light Circuit

DESCRIPTION

When the transponder key is registered, the transponder key ECU assembly outputs the key registration condition by lighting up, blinking or turning off the security indicator.

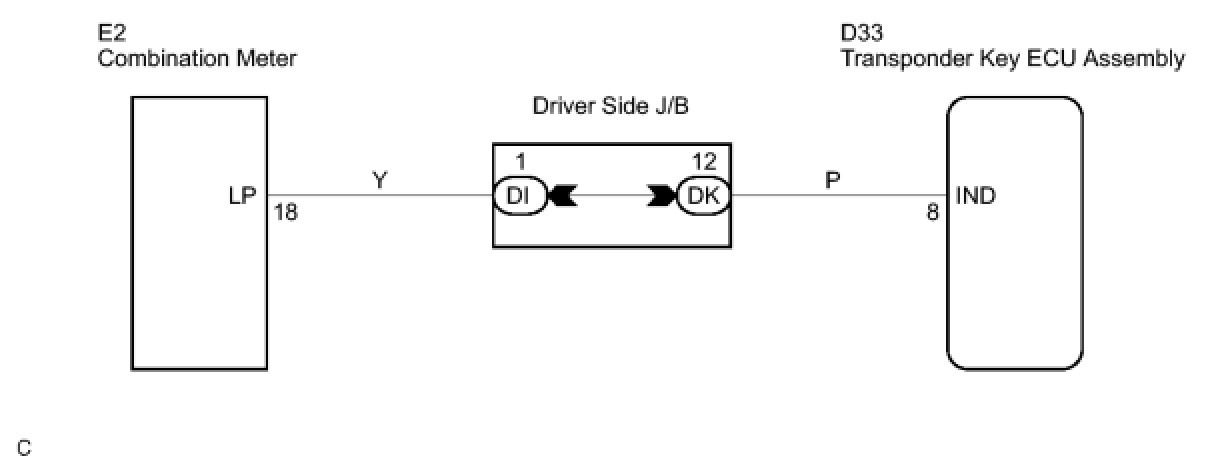

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester on.
(d) Enter the following menus: Body Electrical / Immobiliser / Active Test.
(e) Perform the Active Test according to the display on the tester.

Immobiliser:





OK:
Security indicator turns on and off.

NG -- CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - COMBINATION METER ASSEMBLY)
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
2. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - COMBINATION METER ASSEMBLY)





(a) Disconnect the D33 ECU and E2 combination meter connectors.

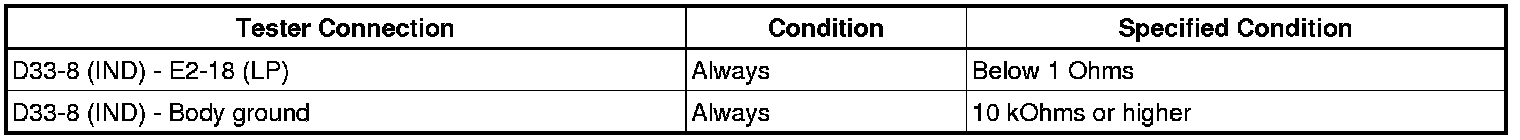

(b) Measure the resistance according to the value(s) in the table below.
Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT TRANSPONDER KEY ECU ASSEMBLY





(a) Reconnect the D33 ECU and E2 combination meter connectors.

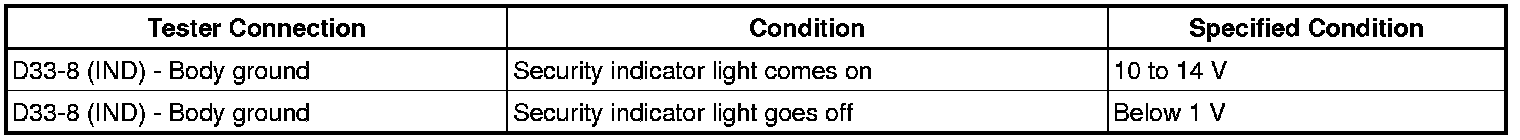

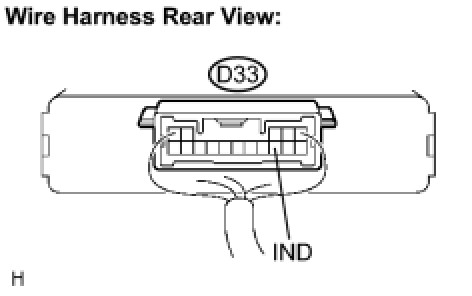

(b) Measure the voltage according to the value(s) in the table below.
Voltage:






NG -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
OK -- REPAIR OR REPLACE COMBINATION METER ASSEMBLY
