Engine Immobiliser System

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: PROBLEM SYMPTOMS TABLE

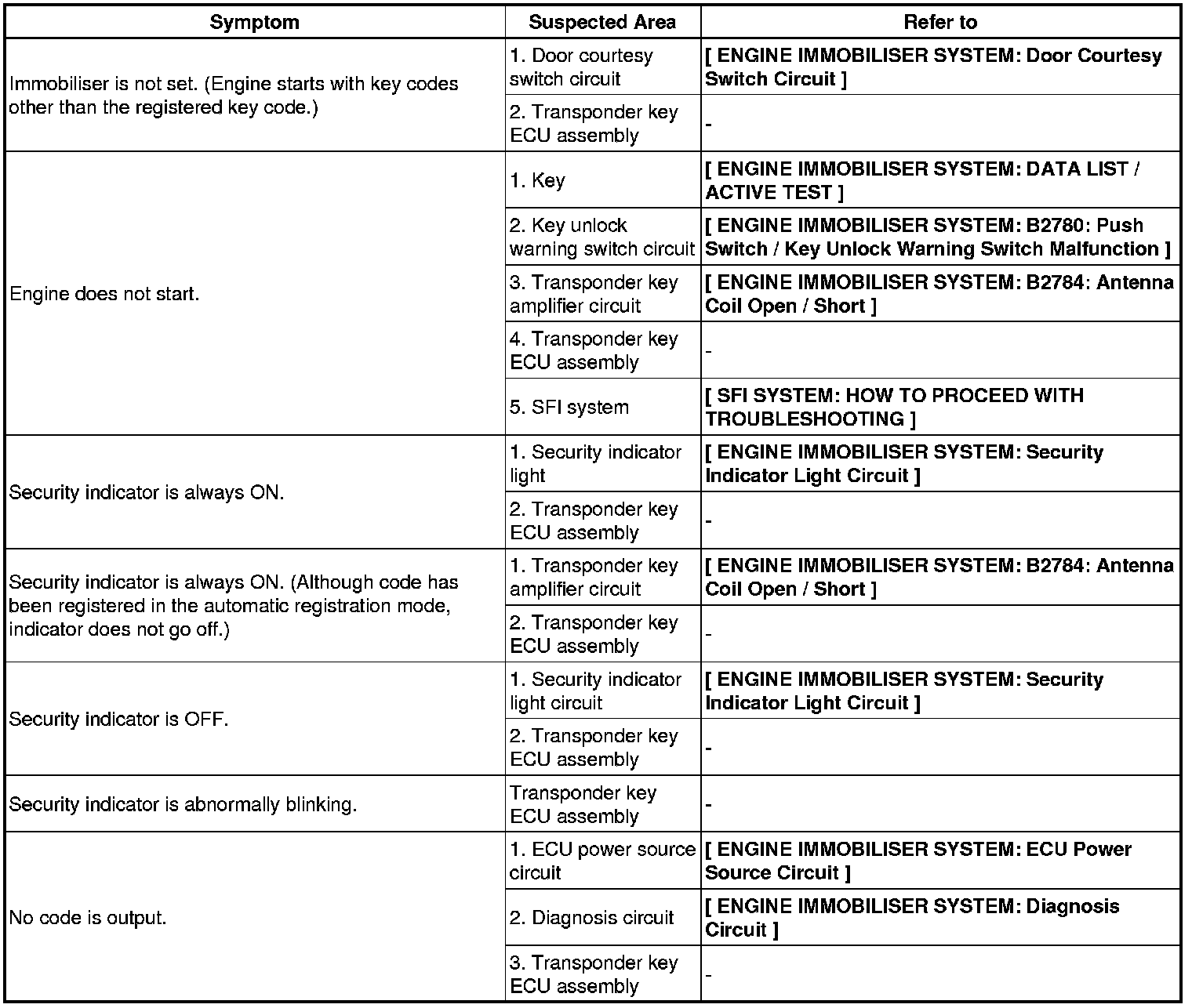

PROBLEM SYMPTOMS TABLE

HINT:
- Inspect the fuse and relay before confirming the suspected area in the table below.
- Inspect each malfunction circuit in numerical order for the corresponding symptom.

HINT: If any malfunction still exists even after checking and confirming that all the circuits are normal, replace the ECU.

ENGINE IMMOBILISER SYSTEM
