Removal

AUDIO / VISUAL: MICROPHONE AMPLIFIER: REMOVAL

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY Removal

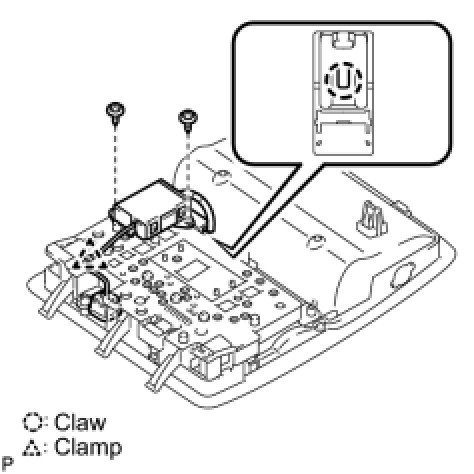

2. REMOVE TELEPHONE MICROPHONE ASSEMBLY





(a) Disengage the claw and remove the clamp.
(b) Remove the 2 screws and remove the telephone microphone assembly.
3. REMOVE AMPLIFIER MICROPHONE ASSEMBLY
4. REMOVE TELEPHONE WIRE





(a) Disconnect the connector and remove the telephone wire.
5. REMOVE MICROPHONE AMPLIFIER ASSEMBLY
