Removal

AUDIO / VISUAL: MULTI-DISPLAY: REMOVAL

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
3. REMOVE STEERING WHEEL COVER LOWER NO. 2 Removal
4. REMOVE STEERING WHEEL COVER LOWER NO. 3 Removal
5. REMOVE STEERING PAD Removal
6. REMOVE STEERING WHEEL ASSEMBLY Removal
7. REMOVE STEERING COLUMN COVER Removal
8. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE Removal
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1 Removal
10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 2 Removal
11. REMOVE INSTRUMENT PANEL FINISH PLATE Removal
12. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY Removal
13. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER Removal
14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal
15. REMOVE ACCESSORY METER ASSEMBLY Removal
16. REMOVE MULTI DISPLAY

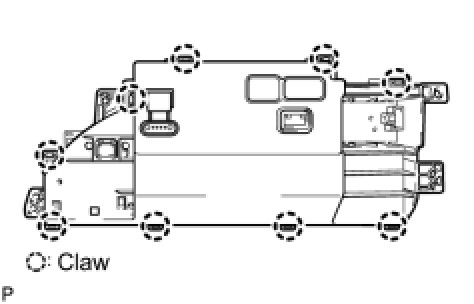

(a) Disengage the 9 claws and remove the back cover.

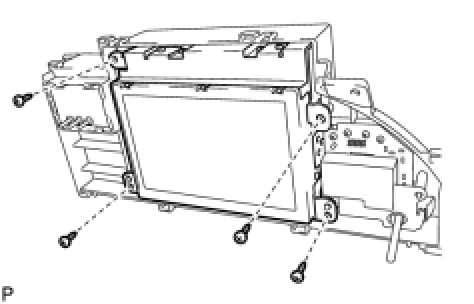

(b) Remove the 4 screws and multi display.
