Removal

NAVIGATION: NAVIGATION ECU: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH
2. REMOVE REAR FLOOR FINISH PLATE Removal
3. REMOVE DISC PLAYER DISC
(a) Eject the disc player disc.
4. REMOVE NAVIGATION ECU COVER

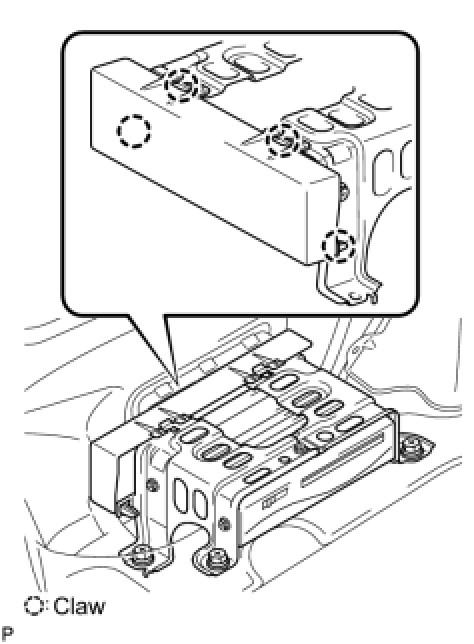

(a) Disengage the 4 claws and remove the navigation ECU cover.
5. REMOVE NAVIGATION COMPUTER WITH BRACKET

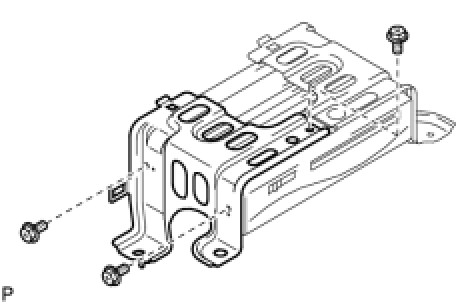

(a) Remove the 3 screws and navigation computer w/ bracket.
6. REMOVE NO.2 DISC PLAYER BRACKET

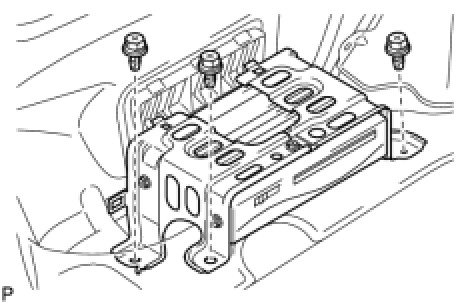

(a) Remove the 3 bolts and No. 2 disc player bracket.
7. REMOVE DISC PLAYER BRACKET

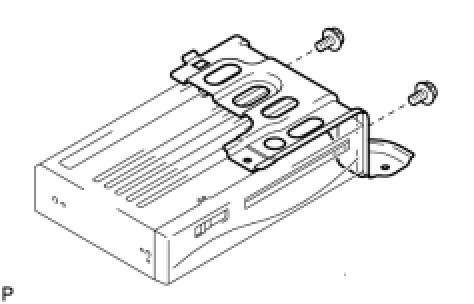

(a) Remove the 2 bolts and disc player bracket.
8. REMOVE NAVIGATION ECU
