Clock Power Source Circuit

NAVIGATION: NAVIGATION SYSTEM: Clock Power Source Circuit

Clock Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the clock assembly.

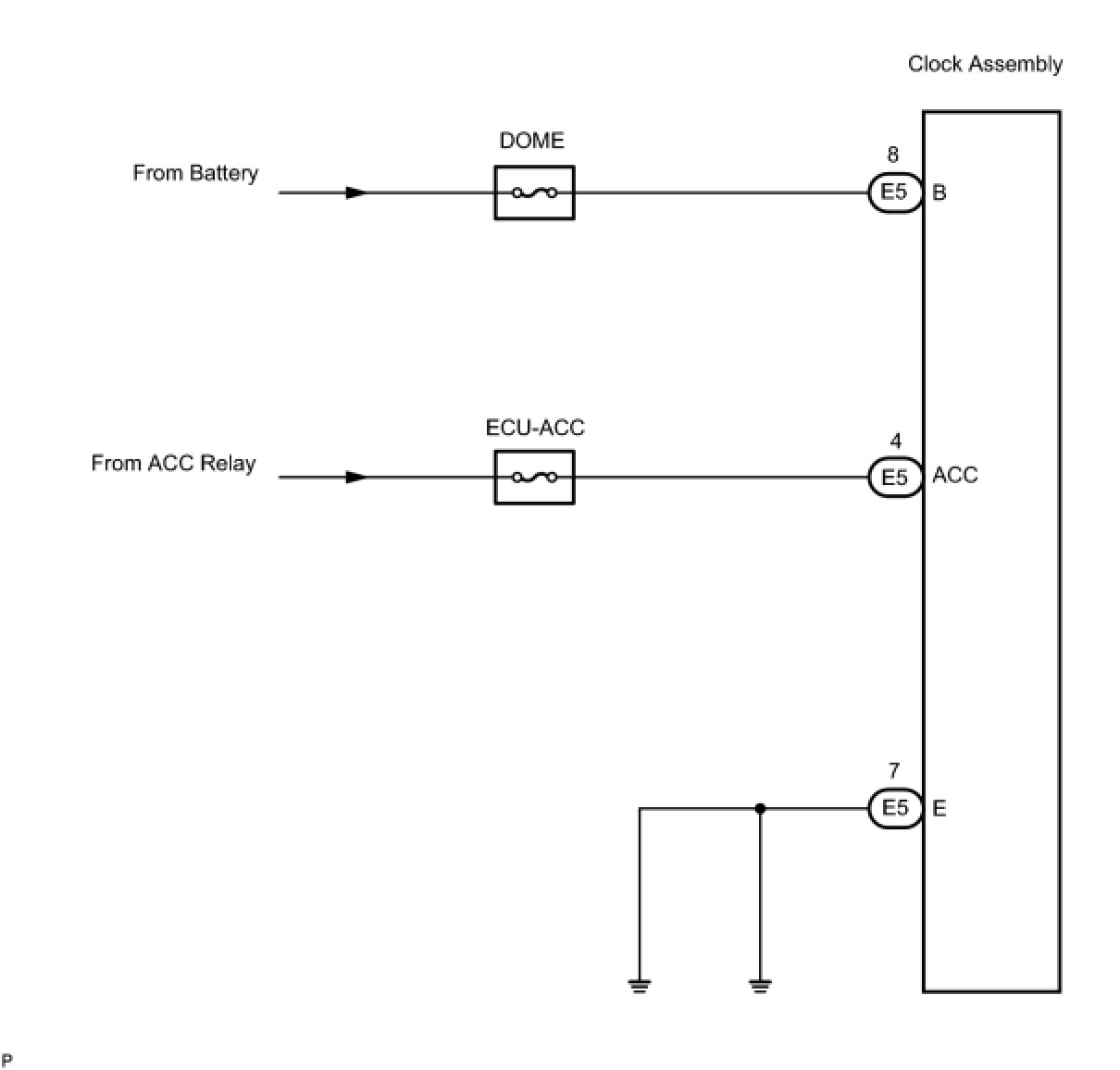

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT CLOCK ASSEMBLY

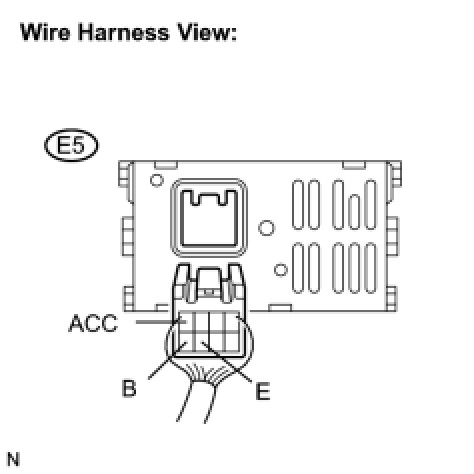

(a) Disconnect the clock assembly connector E5.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

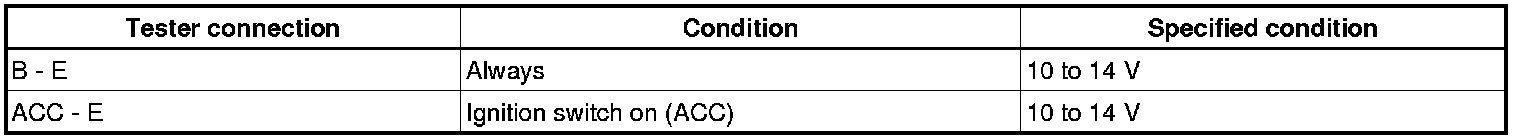

(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
