NAVIGATION: NAVIGATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

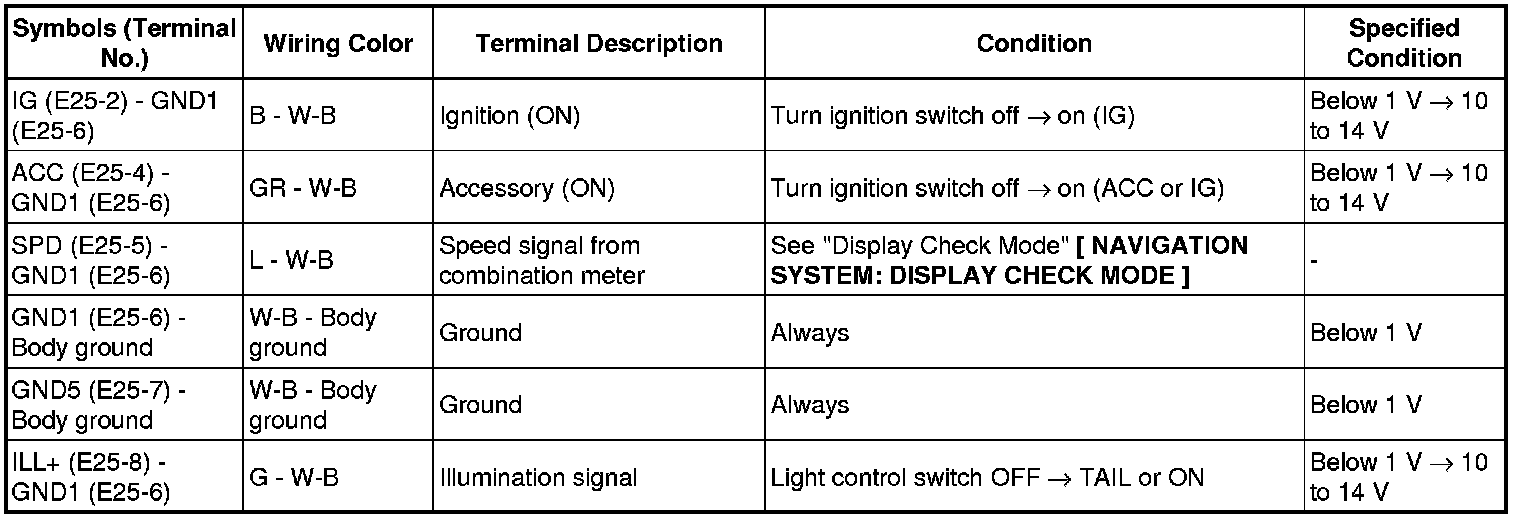

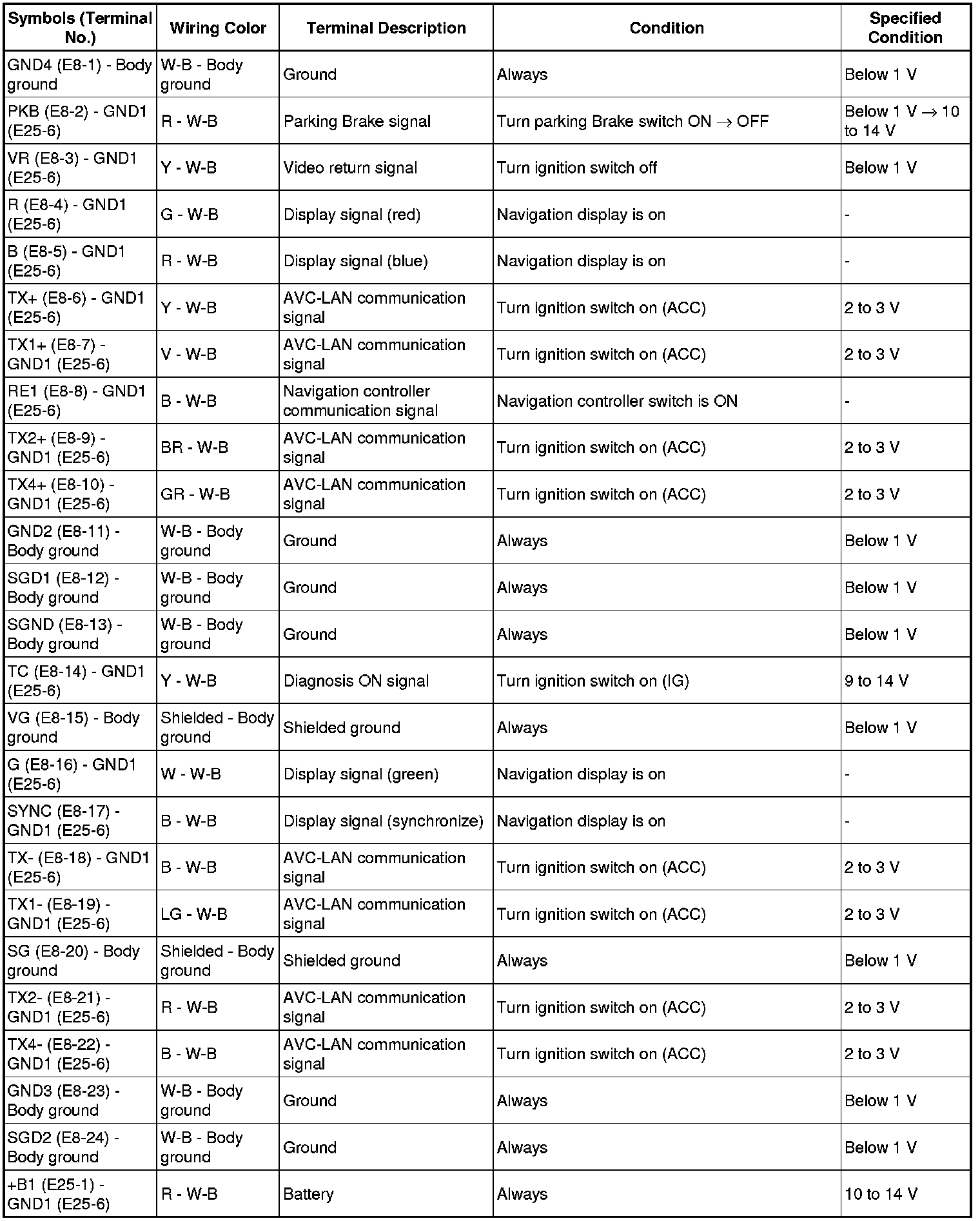

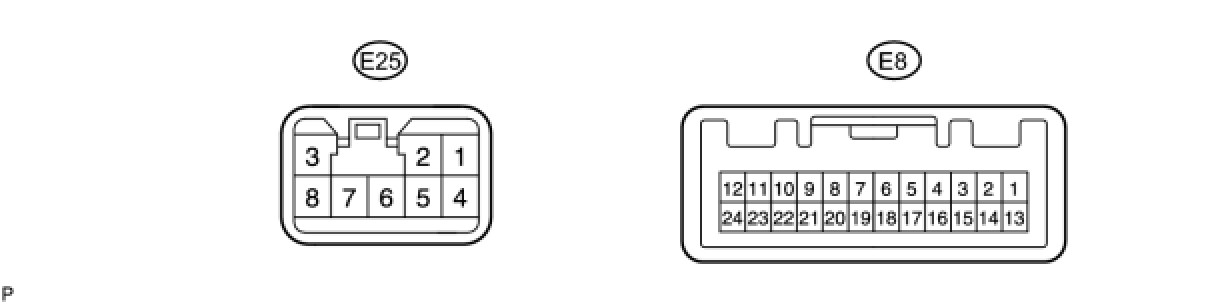

1. MULTI-DISPLAY:

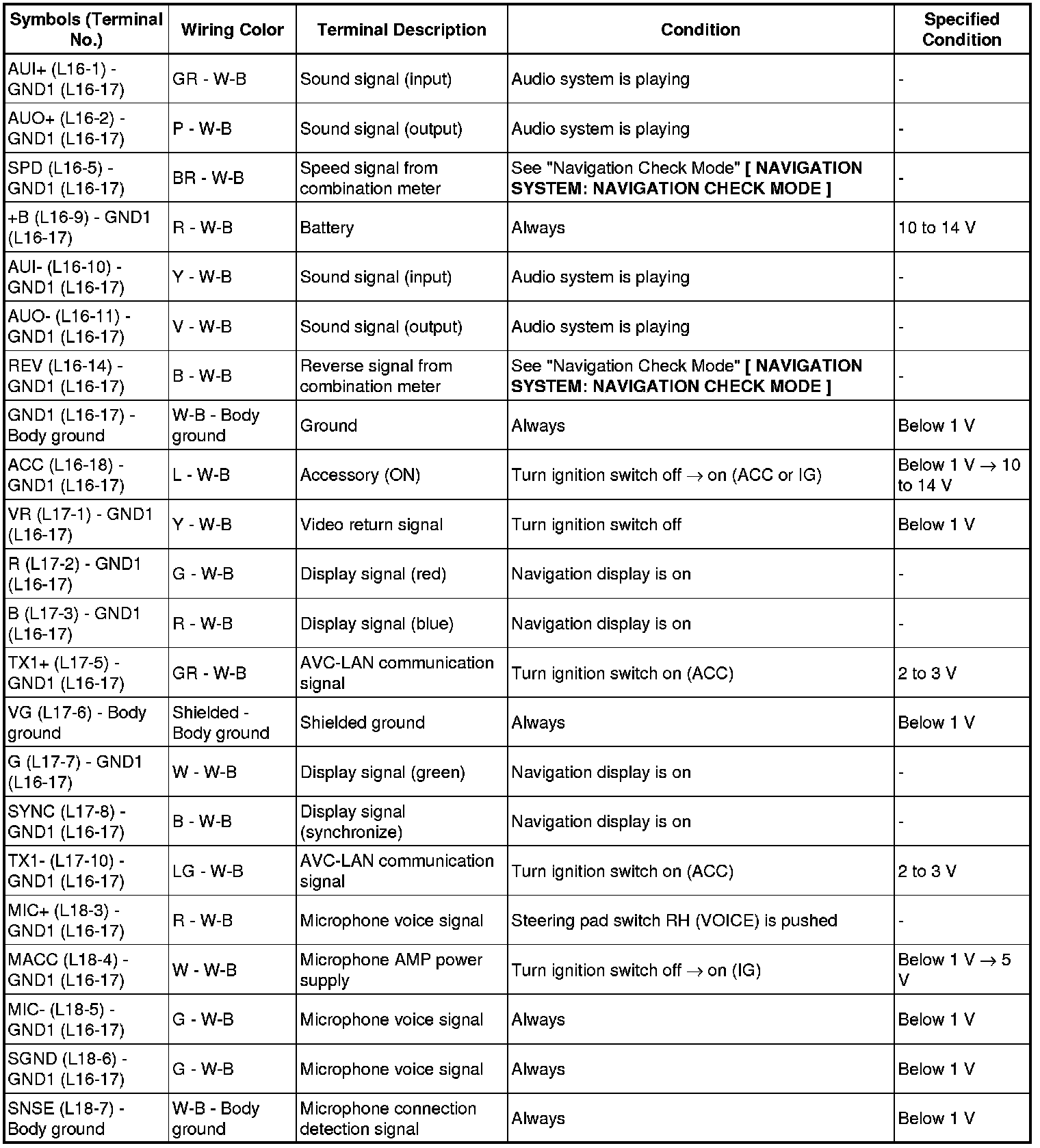

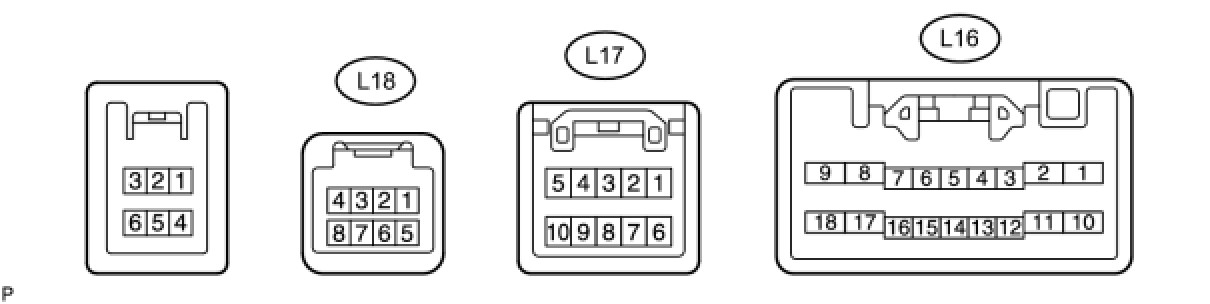

2. NAVIGATION ECU:

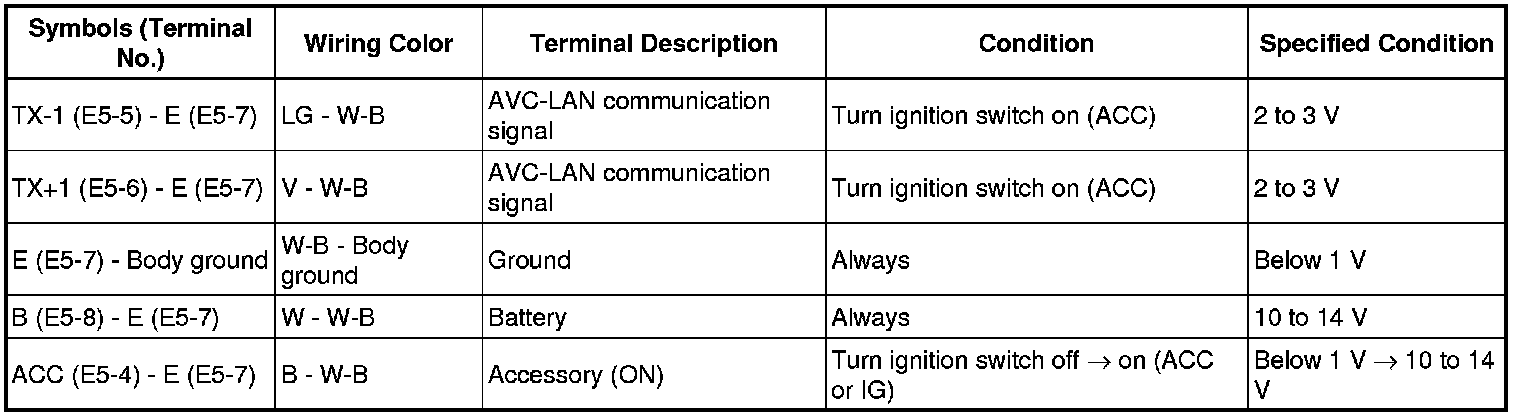

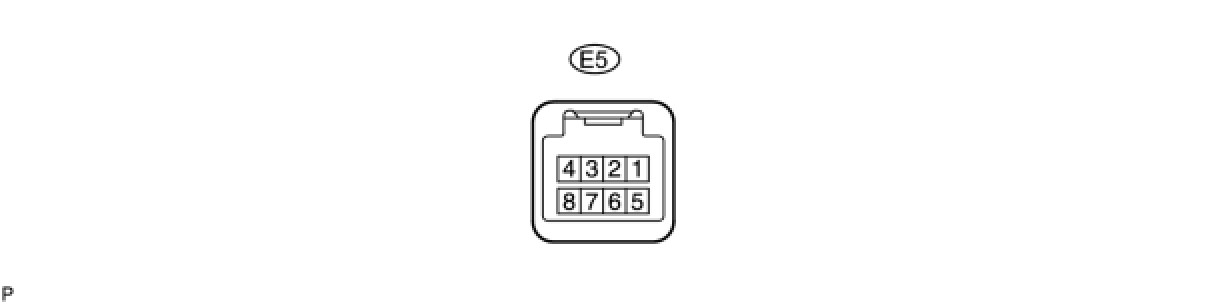

3. CLOCK ASSEMBLY:

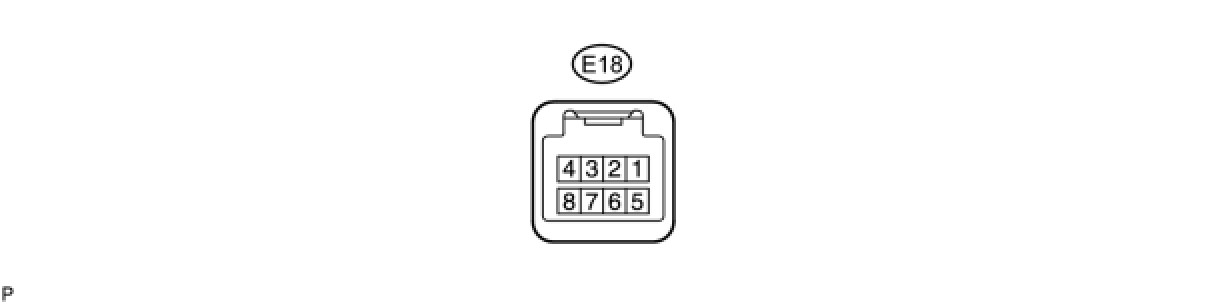

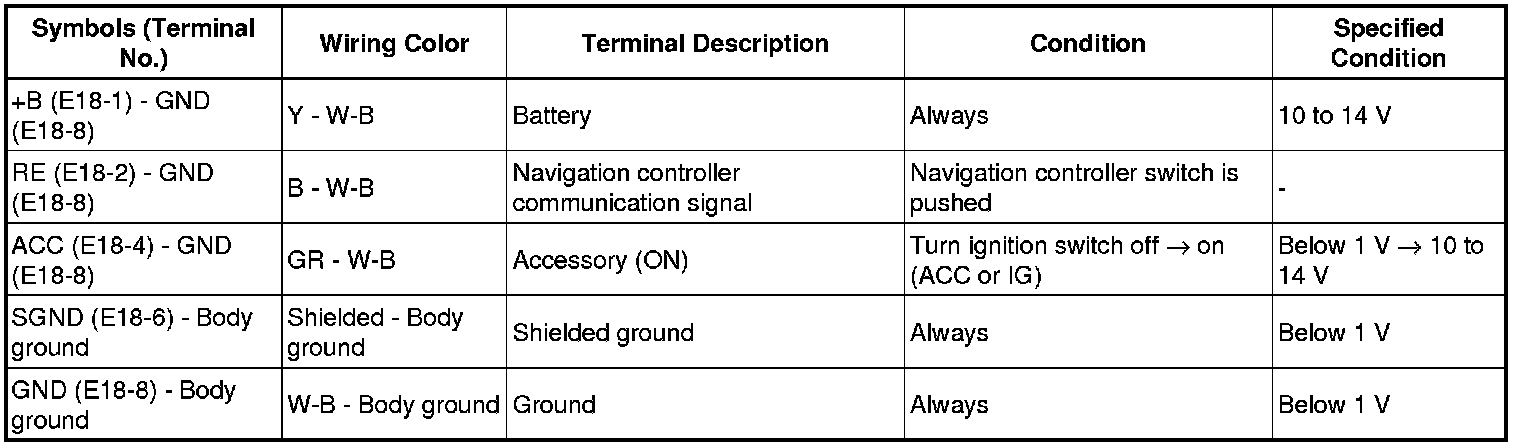

4. NAVIGATION CONTROLLER ASSEMBLY:









5. RADIO RECEIVER Pinout Values and Diagnostic Parameters
6. STEREO COMPONENT AMPLIFIER Pinout Values and Diagnostic Parameters
7. GATEWAY ECU Pinout Values and Diagnostic Parameters
