Removal

AUDIO / VISUAL: PILLAR SPEAKER: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT PILLAR GARNISH LH Removal
2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

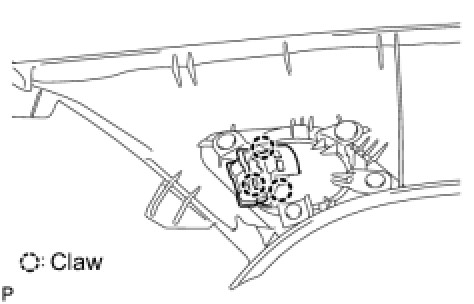

(a) Disengage the 3 claws and remove the front No. 2 speaker assembly.
