Removal

AUDIO / VISUAL: REAR DOOR SPEAKER: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly
2. REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH Disassembly
3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

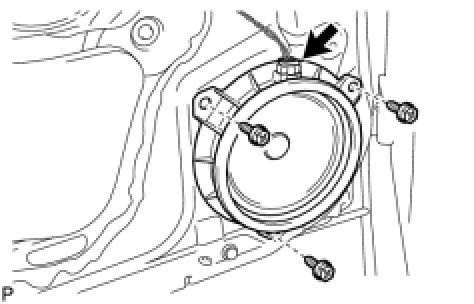

4. REMOVE REAR SPEAKER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 3 screws and rear speaker assembly.

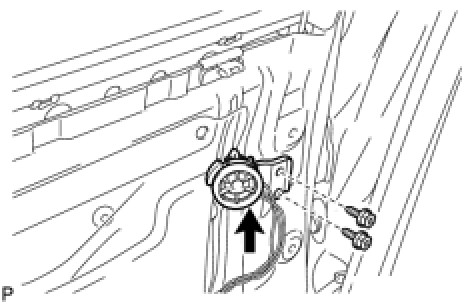

5. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 2 screws and stereo component speaker assembly.
