Removal

AUDIO / VISUAL: REAR PACKAGE TRAY SPEAKER: REMOVAL

REMOVAL

HINT:
- Use the procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR SEAT BACK LOCK COVER CAP Removal
4. REMOVE REAR SEATBACK ASSEMBLY LH Removal
5. REMOVE REAR SEATBACK ASSEMBLY RH Removal
6. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH Removal
7. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH Removal
8. SEPARATE REAR SEAT BELT ASSEMBLY OUTER Removal
9. SEPARATE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH Removal
10. SEPARATE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH Removal
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal
12. REMOVE ROOF SPEAKER ASSEMBLY





(a) Disconnect the connector.

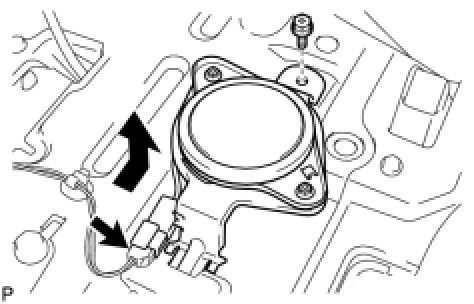

(b) Remove the bolt and roof speaker assembly as shown in the illustration.
13. REMOVE REAR NO. 2 SPEAKER ASSEMBLY





(a) Disconnect the connector.

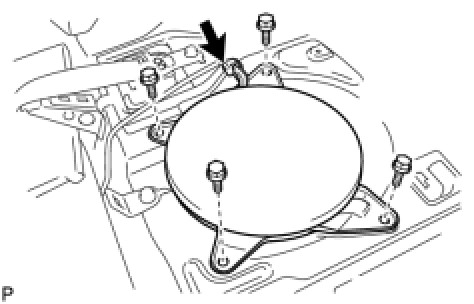

(b) Remove the 4 bolts and No. 2 rear speaker assembly.
