Radio Receiver Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Radio Receiver Power Source Circuit

Radio Receiver Power Source Circuit

DESCRIPTION

This circuit provides power to the radio receiver.

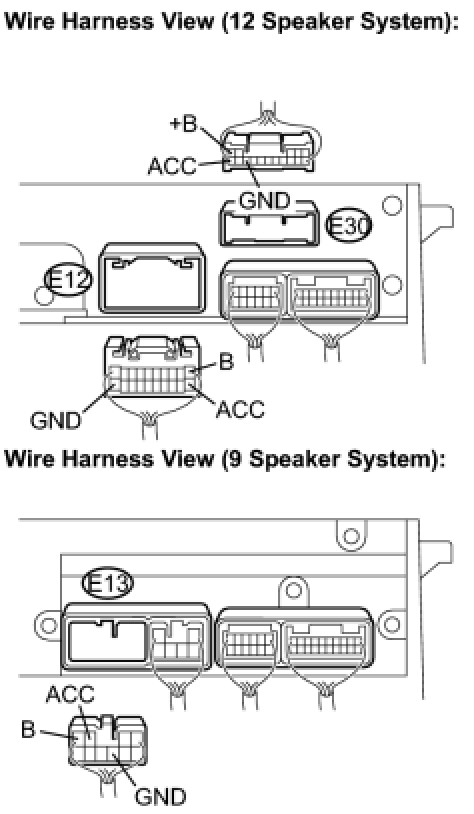

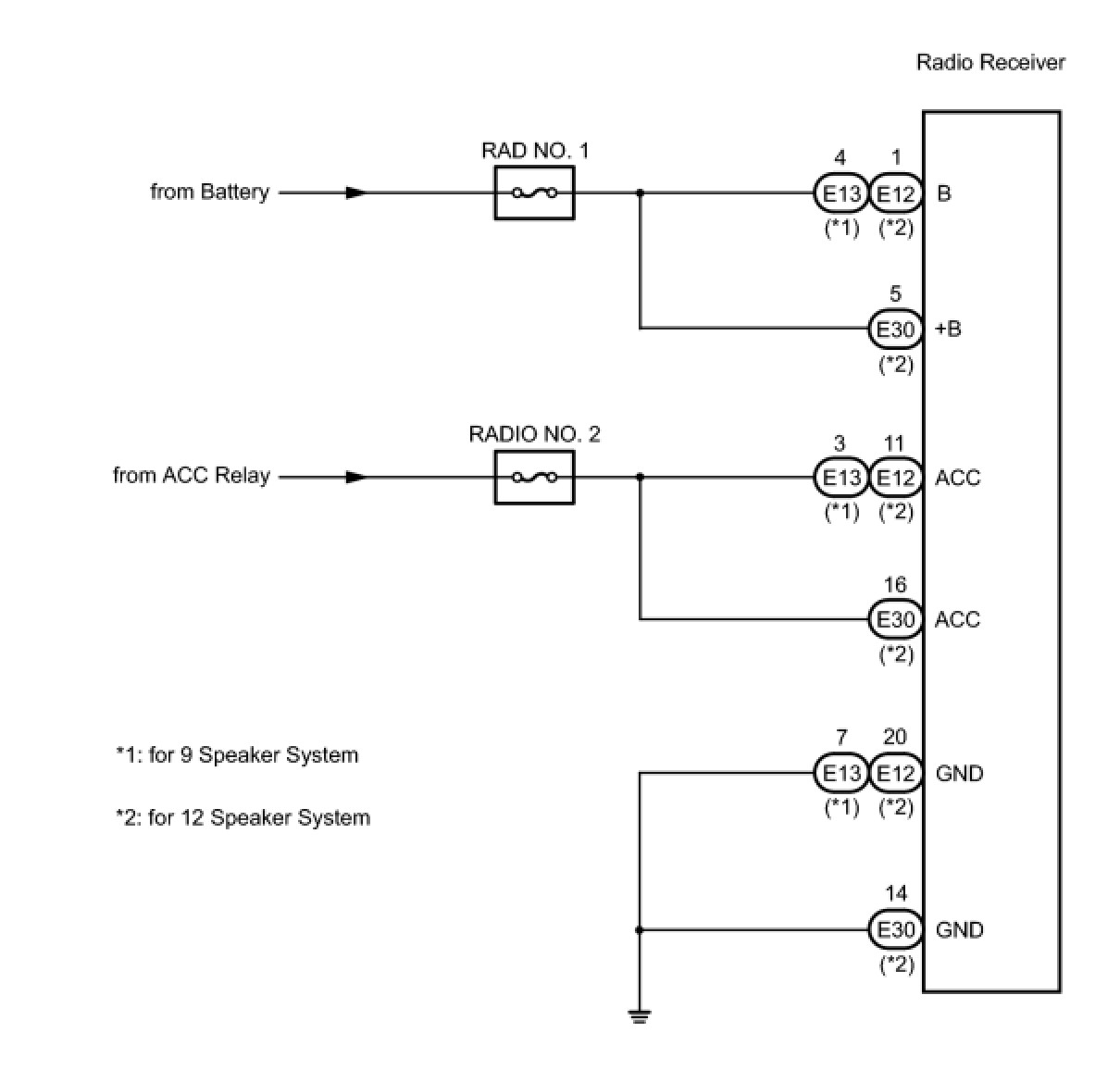

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT RADIO RECEIVER





(a) Disconnect the radio receiver connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

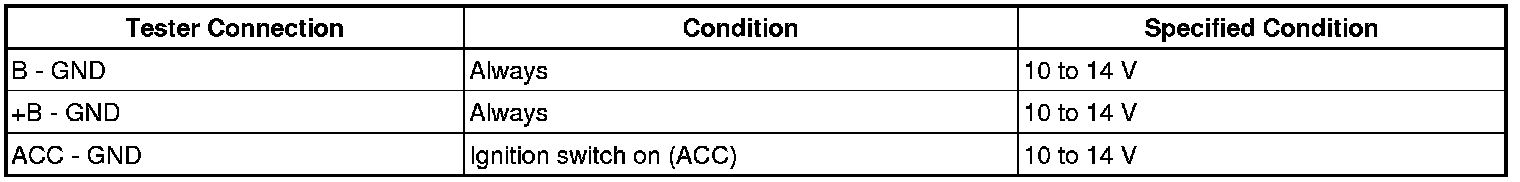

(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
